1 Shapes
7-16 WindO/I-NV4 User’s Manual

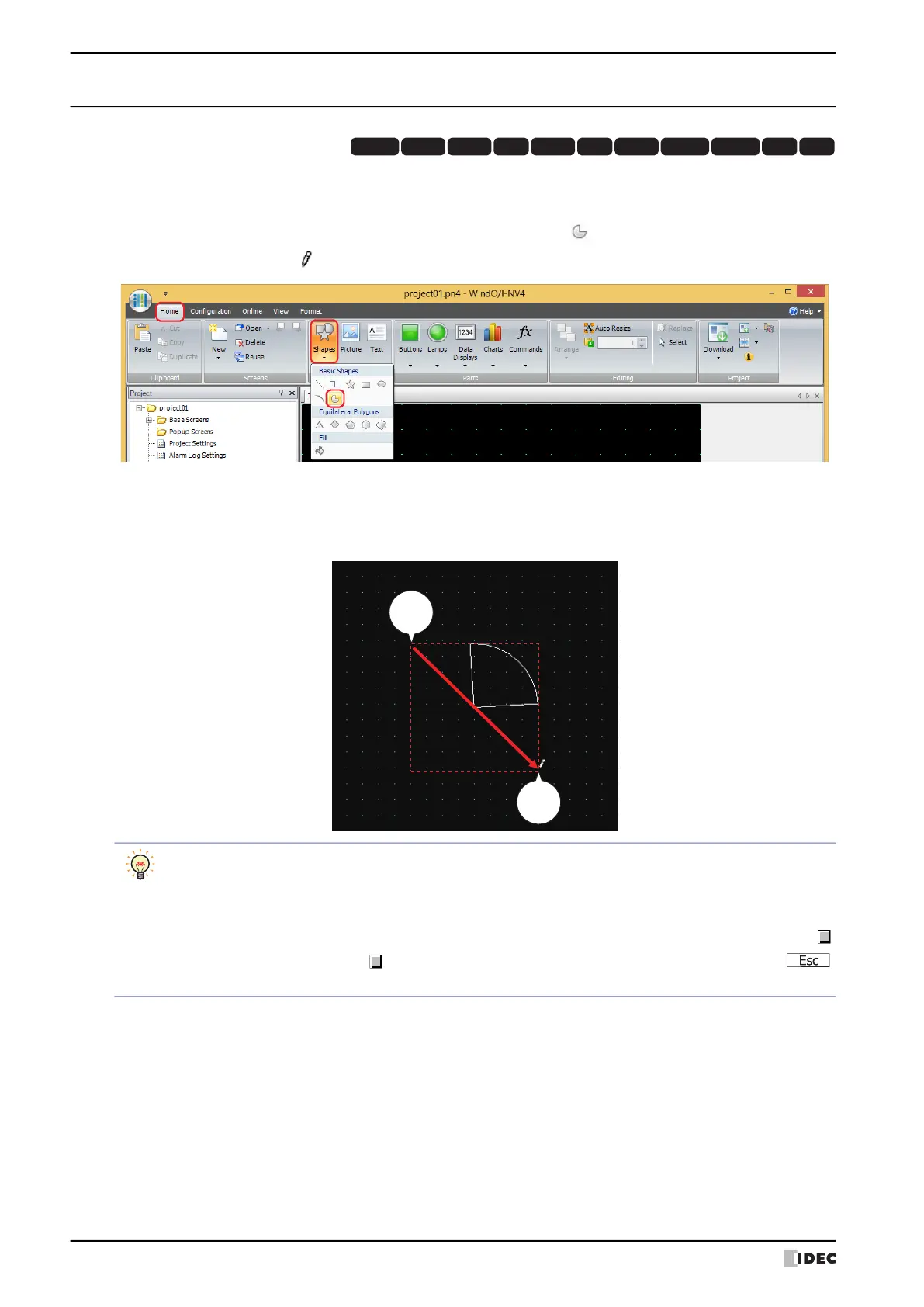

1.7 Pie
● Pie Drawing Procedure
This section describes the procedure for drawing pies.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Pie) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (start point) to start drawing the pie on the edit screen.
3 Drag the mouse to the stop point location so that location becomes the opposite angle of the rectangle.
A pie is drawn that inscribes the rectangle made from the opposite angles of the start point and the stop point.
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
Stop
point
Start
point
Drag
• To change the style of the drawn pie, perform one of the following operations.
- Double click the pie to open the Properties dialog box
- Select the pie and select the style with Shape Style on the Format tab
- Select the pie and open the right click menu
• To change the central angle of the drawn pie, select the pie and right click on it, then click Reshape.
is displayed on the pie. Drag to the desired location. Double click the edit screen or press the
key to finish changing the shape.
To Next Page
