IDEC WindO/I-NV4 - Properties of Pie Chart Dialog Box

WindO/I-NV4 User’s Manual 11-55
3 Pie Chart
11
Charts

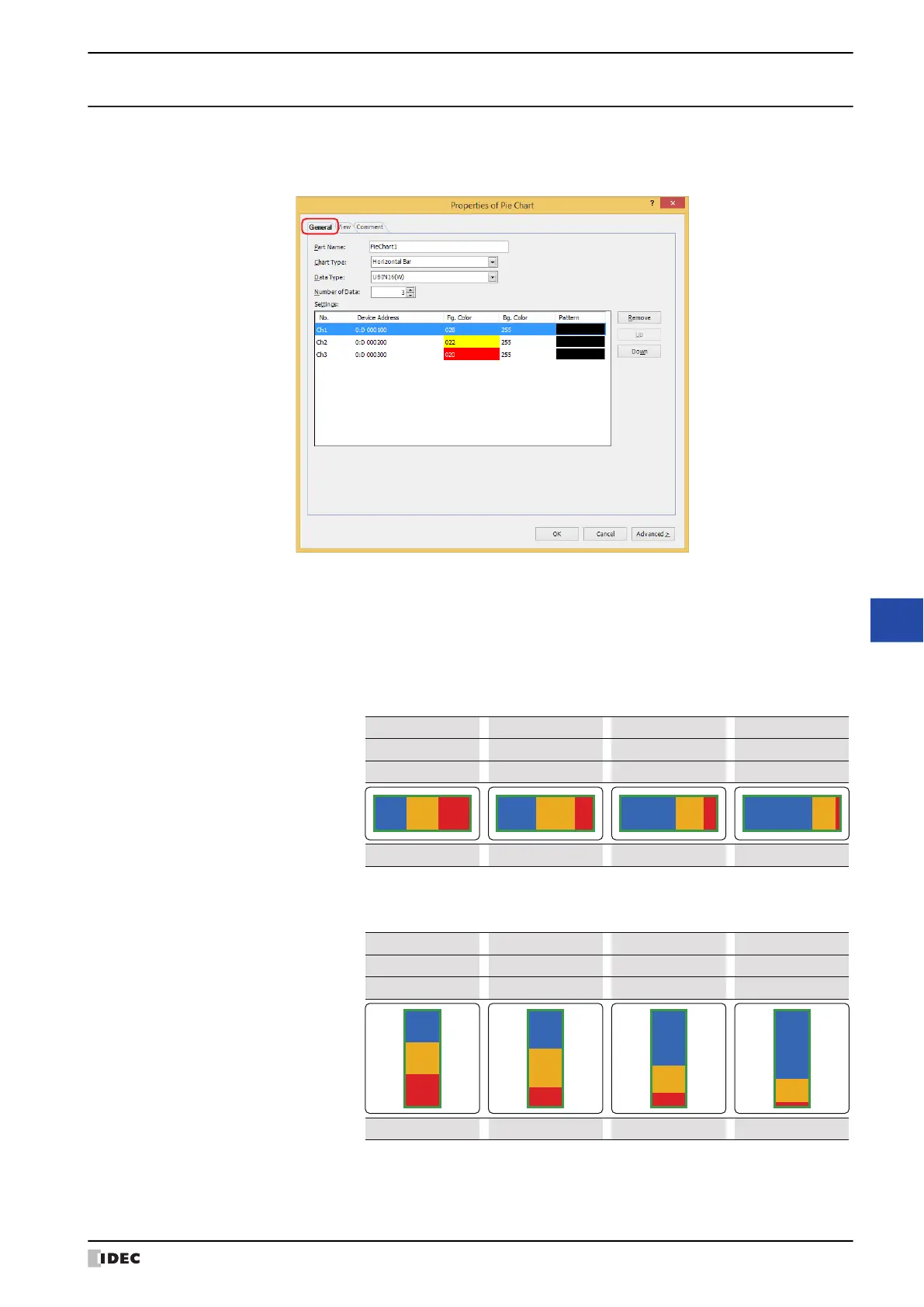

3.3 Properties of Pie Chart Dialog Box
This section describes items and buttons in the Properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Chart Type
Select the type of chart from the following items.
Horizontal Bar: Shows the proportion of the sum of the data as a horizontal stacked bar chart.
Example: When displaying the values for three device addresses
Vertical Bar: Shows the proportion of the sum of the data as a vertical stacked bar chart.
Example: When displaying the values for three device addresses
Horizontal bar
display
Ch3 data
0
Ch2 data 0
50
100
30
60
10
50
Ch1 data
0 100 120 150
Proporon
1 : 1 : 1
2 : 2 : 1 4 : 2 : 1 15 : 5 : 1
Vercal bar display
Ch3 data
0
Ch2 data
0
50
100
30
60
10
50
Ch1 data
0 100 120 150
Proporon
1 : 1 : 1
2 : 2 : 1 4 : 2 : 1 15 : 5 : 1
