WindO/I-NV4 User’s Manual 4-25
3 Project Settings Dialog Box
4
Project Settings
This section describes items and buttons on the Project Settings dialog box.

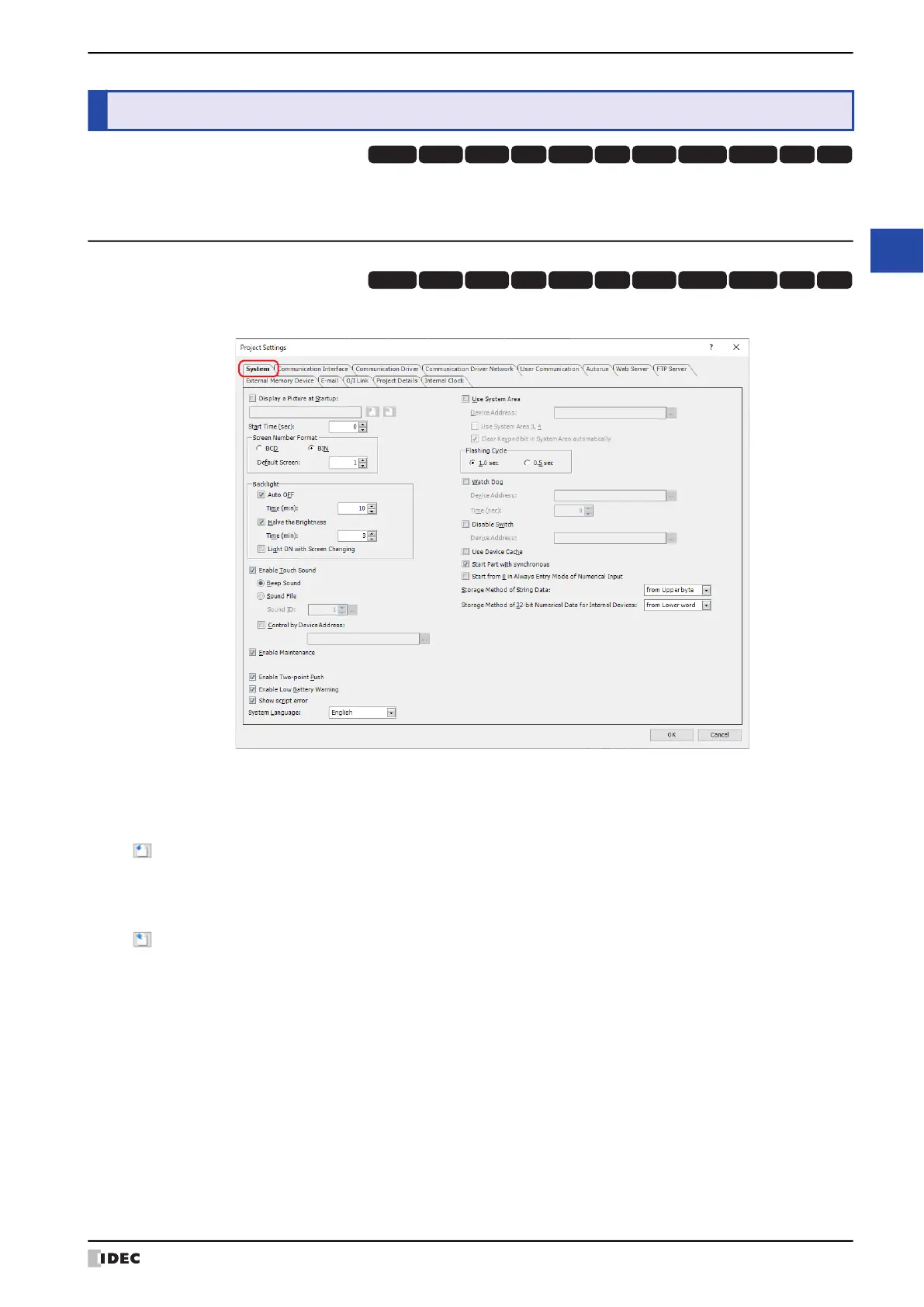

3.1 System Tab
The System tab is used to configure MICRO/I operations for the project data overall.
â– Display a Picture at Startup
*1
Select this check box to display an image on the screen when MICRO/I is started.
â– Start Time (sec)
It can be set vary based on the MICRO/I model.
*1 HG2J-7U only
3 Project Settings Dialog Box
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
HG2J-7U
(Image file name): Displays the file name of the imported image.
(Import):
Shows the Open dialog box.
Select a bitmap format (* .bmp) image file and click Open to import it as an image to be
displayed at startup.
The maximum image size that can be used is 800 x 480 dots and 1,160,000 bytes.
(Export):
Displays the Save As dialog box.
Select the location to save the file, enter a file name, and then click Save to save the image file
as a bitmap file.
HG2J-7U: Specifies the start time of communication with the external device (0 to 9999 seconds) after the
MICRO/I power is turned on and the POWER LED (green) changes from blinking to lit.
HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P:
Specifies the start time of communication with the external device (0 to 9999 seconds) after the
MICRO/I power is turned on.
