6 Multi-Button

Buttons

6.3 Properties of Multi-Button Dialog Box

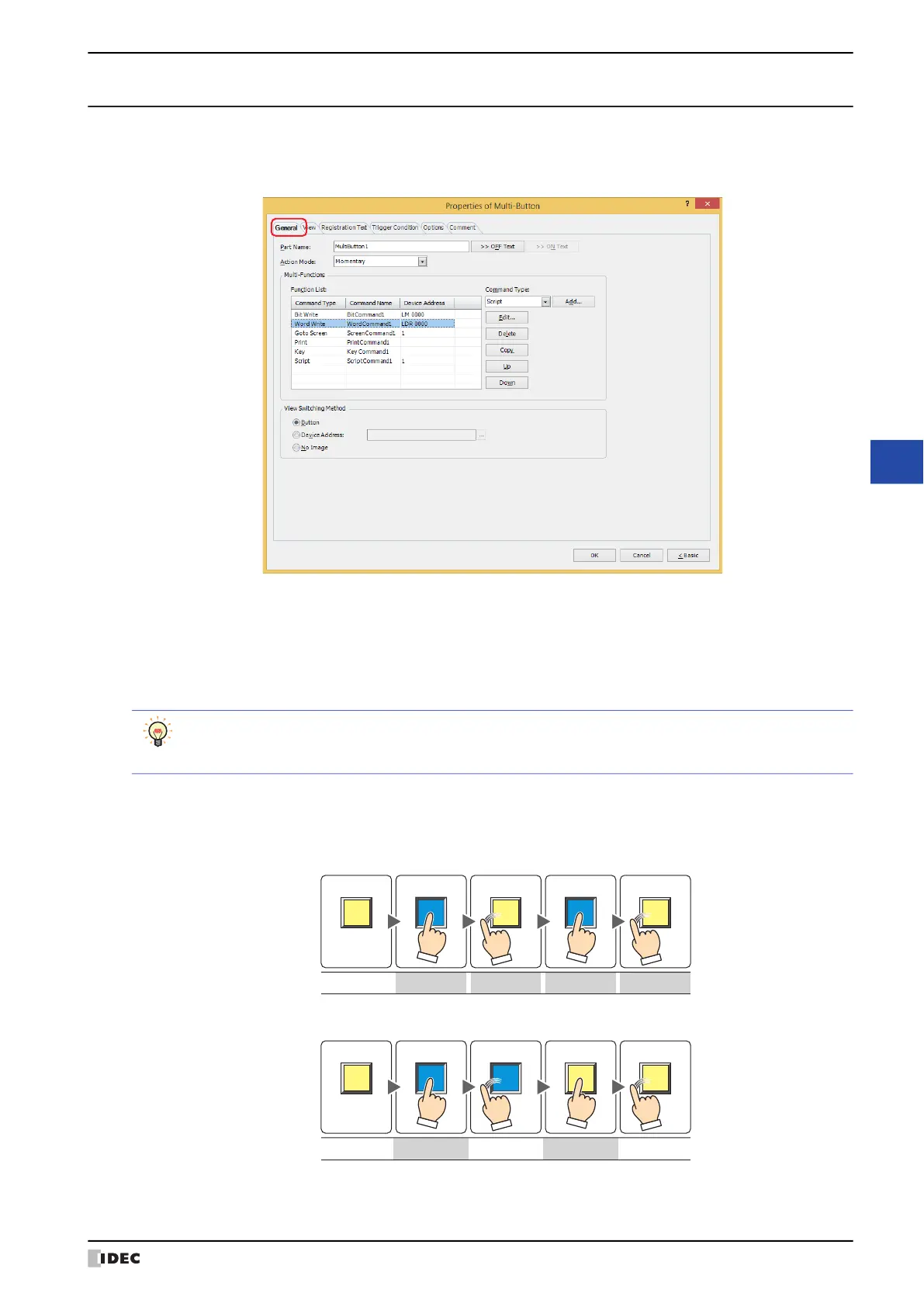

This section describes items and buttons in the Properties dialog box.

●

General Tab

■ Part Name

Enter a name for the part. The maximum number is 20 characters.

■ >>OFF Text, >>ON Text

Applies the text entered in the Part Name field to the Text field under the OFF or ON fields on the Registration

Text tab. This is used as the Registration Text when the button is OFF or ON.

■ Action Mode

Select the Action Mode for the Multi-Button: Momentary or Alternate.

To specify the Registration Text to use when the button is ON, select the Set by State check box on the

Registration Text tab. If left unchecked, the same Registration Text assigned for the OFF state is

displayed for the ON state as well.

Momentary: The button turns ON when pressed, and OFF when released.

Alternate: The button switches between ON and OFF each time it is pressed.

Release

Initial image

Press ReleasePress

Operation and

view

Action

ONOFF OFF
