1 Shapes
7-10 WindO/I-NV4 User’s Manual

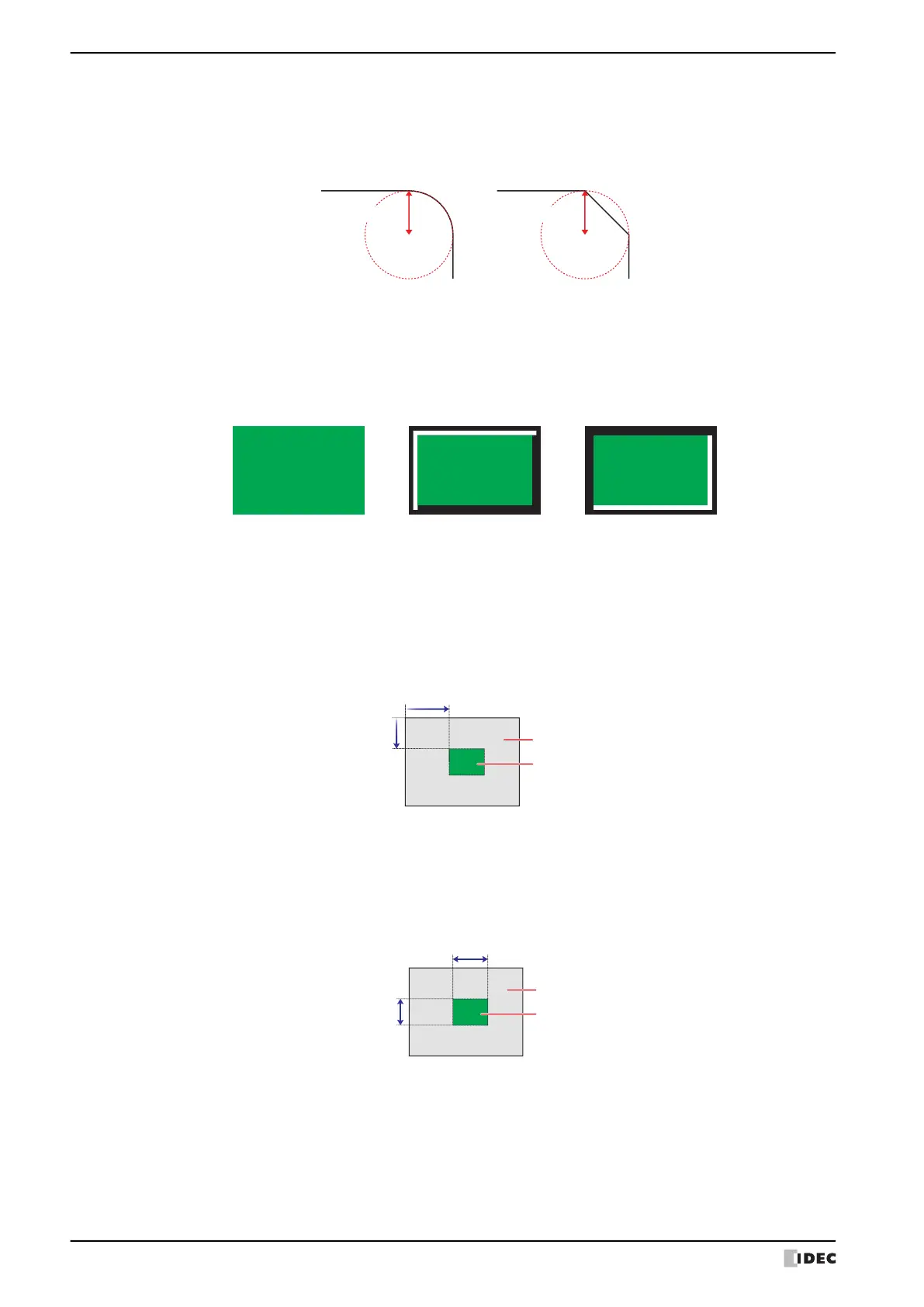

■ Round Radius
Specifies the rounding radius (1 to 200). However, the range that can be configured is where round radius x 2 is a
value smaller than Size W and Size H.
This option can only be configured when Curve or Straight is selected for Round Type.
■ Shadow
Selects the style of shadow attached to the rectangle from the following. This option draws the rectangle in a three-
dimensional manner.
None, Convex, Concave
This option can only be configured when 1 dot is selected for Line Width and Solid is selected for Line Type.
■ Coordinates
■ Size
■ Place on the Top Layer
Select this check box to display the rectangle on the top layer. The rectangle will have precedence when other
drawings and parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page
6-5.
For Curve For Straight
Round Radius Round Radius
X, Y: Specifies the display position of the rectangle in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle is the X
and Y coordinates.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Rectangle
W, H: Specifies the size of the rectangle in width and height.
W: 1 to (base screen horizontal size)
H: 1 to (base screen vertical size)
Width
Height
Screen
Rectangle
To Next Page
