WindO/I-NV4 User’s Manual 13-27
3 Alarm Log Settings Dialog Box
13
Alarm Log Function

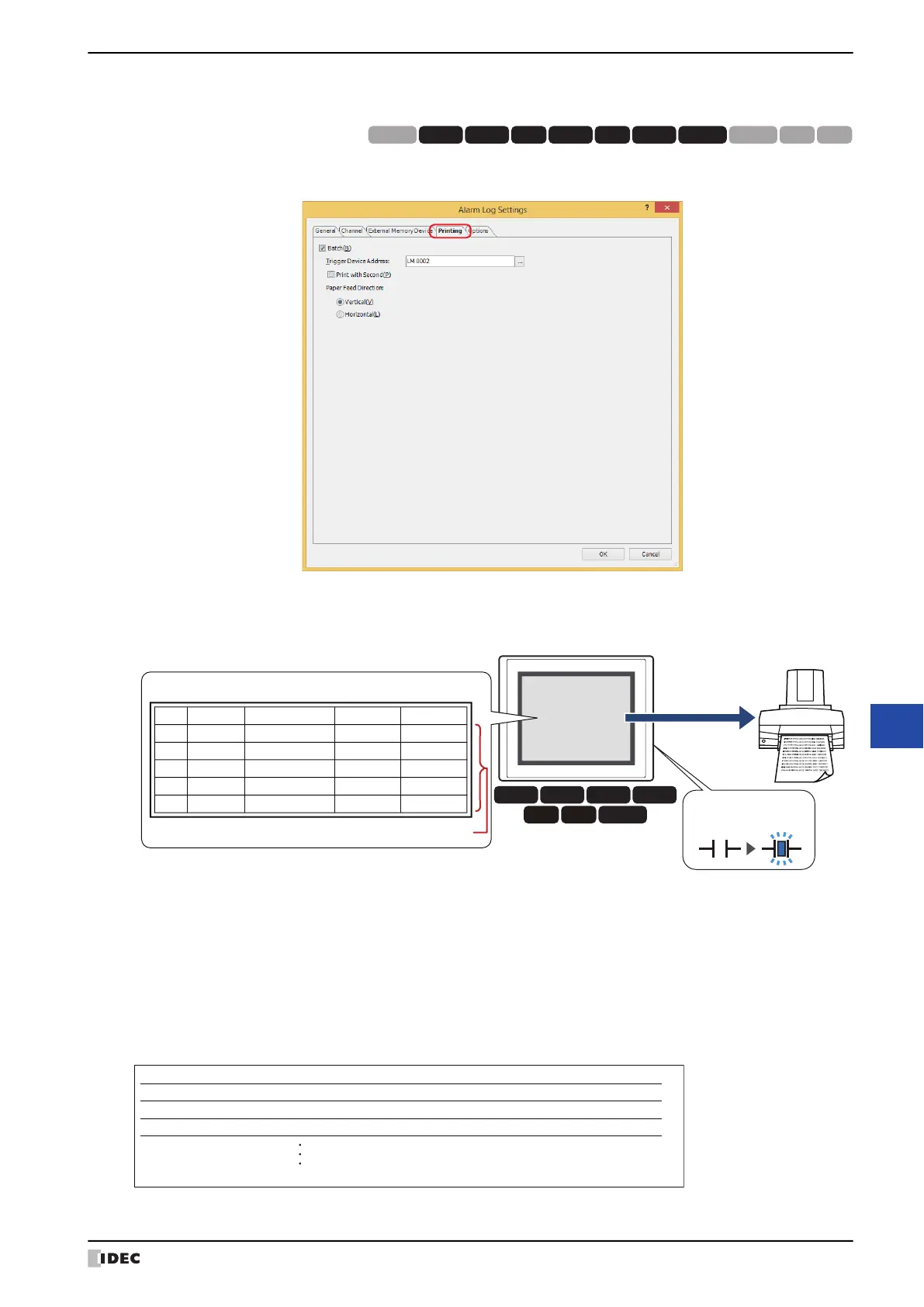

● Printing Tab
The Printing tab is used to configure whether or not to output saved data to the printer.
■ Batch
Select this check box to batch output all the sampled data to the printer.
Printing of all the data starts when the value of the Trigger Device Address changes from 0 to 1. Alarm Log data that
occurs after the start of printing is not printed.
Batch output example (printing)
HG3G HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T HG4G HG1G HG1P HG2J-7U
Trigger Device Address: Specifies the bit device or the bit number of the word device to serve as condition to print.
For the device address configuration procedure, refer to Chapter 2 “5.1 Device Address
Settings” on page 2-70.
The data prints when the value of the Trigger Device Address changes from 0 to 1.
Output to printer
Printer
0
1
Trigger Device Address
MICRO/I
Alarm Log data
Ch.No. Message Occurrence Time Recovery Time Confirmation Time
1-1 Voltage drop 12/01/2011 12:00:05 12/01 12:01:10 12/01 12:01:30
1-2 Abnormal temperature 12/01/2011 12:01:09 12/01 12:02:21 12/01 12:02:55
1-1 Voltage drop 12/01/2011 12:02:00 12/01 12:03:11 12/01 12:05:12
1-3 Overcurrent 12/01/2011 12:30:21 12/01 12:55:15 12/01 13:00:00
1-1 Voltage drop 12/01/2011 12:45:36 12/01 12:53:12 12/01 12:57:41
Data to be output (all)
HG3G HG2G-5F HG4G
HG5G-V HG4G-V HG3G-V HG2G-V
No.
01-00
01-01
01-00
Occurrence Time
12/31/11 12:00:00
12/31/11 12:10:15
12/31/11 13:00:30
Recovery Time
12/31 12:20:20
12/31 14:00:40
-
Confirmaon Time
12/31 12:30:45
12/31 14:30:50
-
Message
Pressure sensor fault
Hydraulic pressure low
Pressure sensor fault
