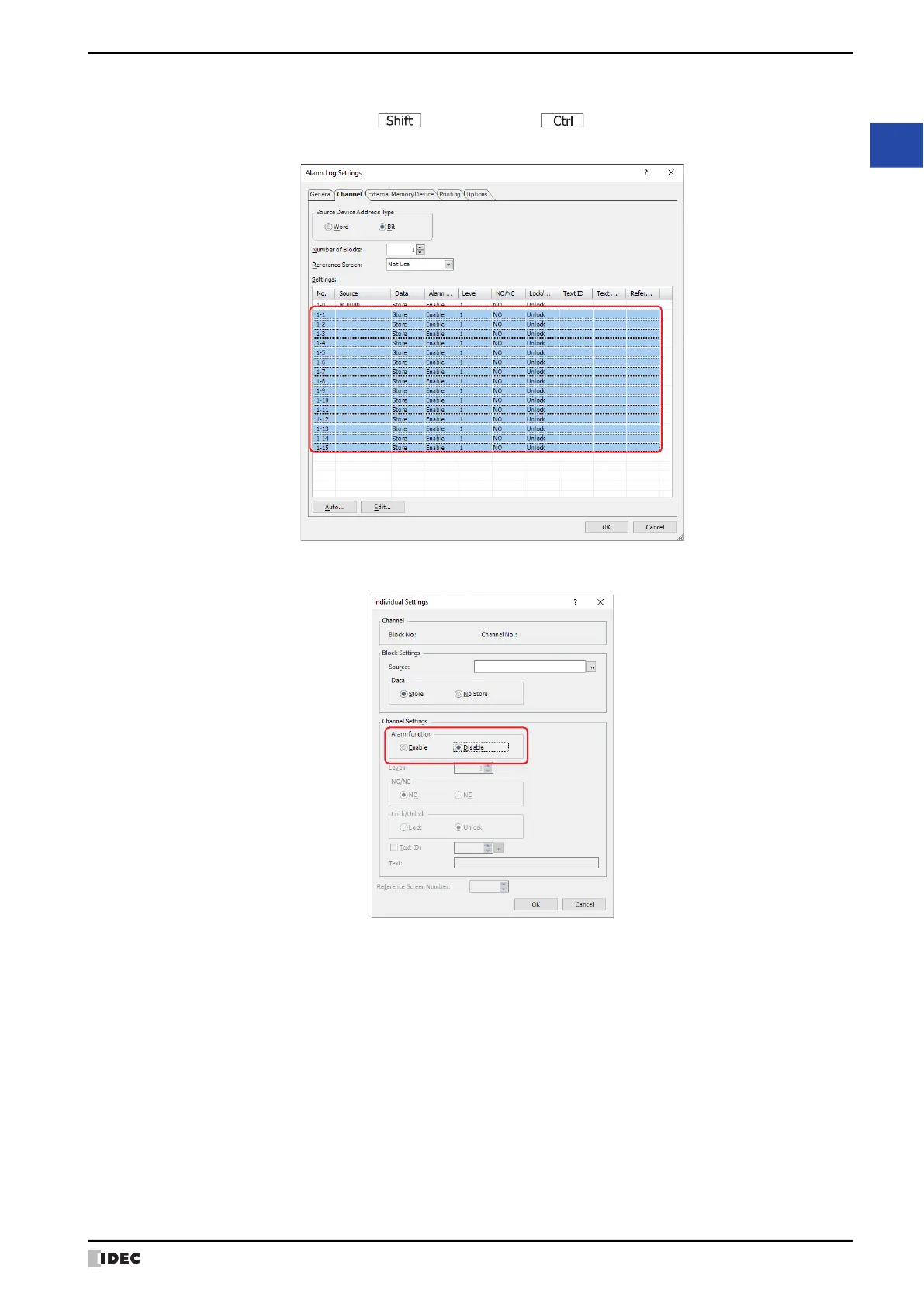

WindO/I-NV4 User’s Manual 17-17

4 Using the Data

Preventive Maintenance Function

On the Alarm Log Settings dialog box, switch the alarm function for all the unused channel numbers to Disable.

Select all the unused channels with the key + click or the key + click and click Edit.

The Individual Settings dialog box is displayed.

Under Channel Settings - Alarm function, select Disable and click OK.
