2 Text Groups and Text Configuration Procedure

19-10 WindO/I-NV4 User’s Manual

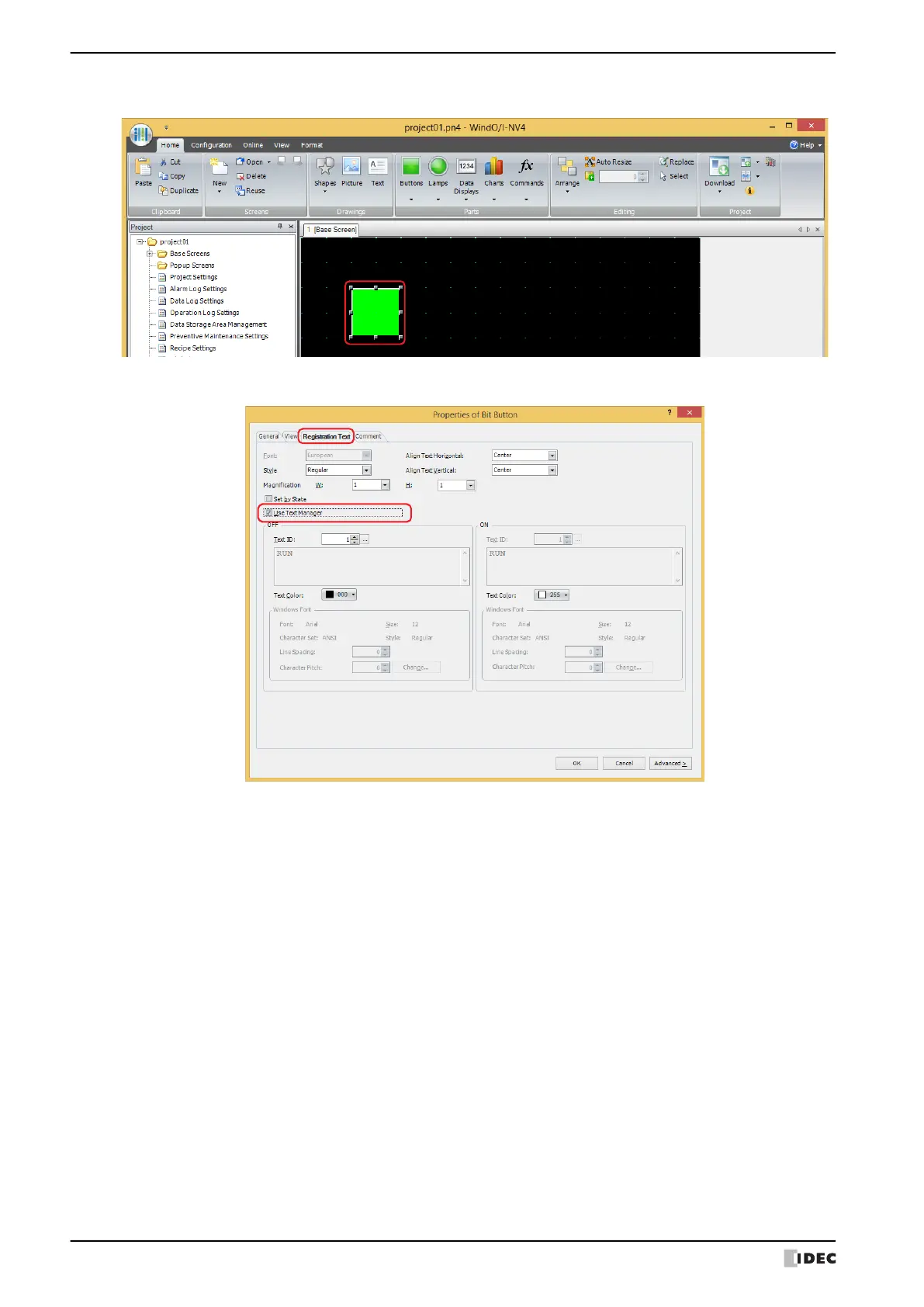

4 Double-click the placed Bit Button and the properties dialog box is displayed.

5 Click the Registration Text tab, and then select the Use Text Manager check box.

6 Specify 1 for the Text ID under OFF.

7 Configure the settings on each tab as necessary, and then click OK.

The Properties of Bit Button dialog box closes.

Repeat steps 2 through 7 and create a Bit Button to use text ID 2 for the registration text.

This concludes configuring the settings to switch the displayed language by a value of device address.
