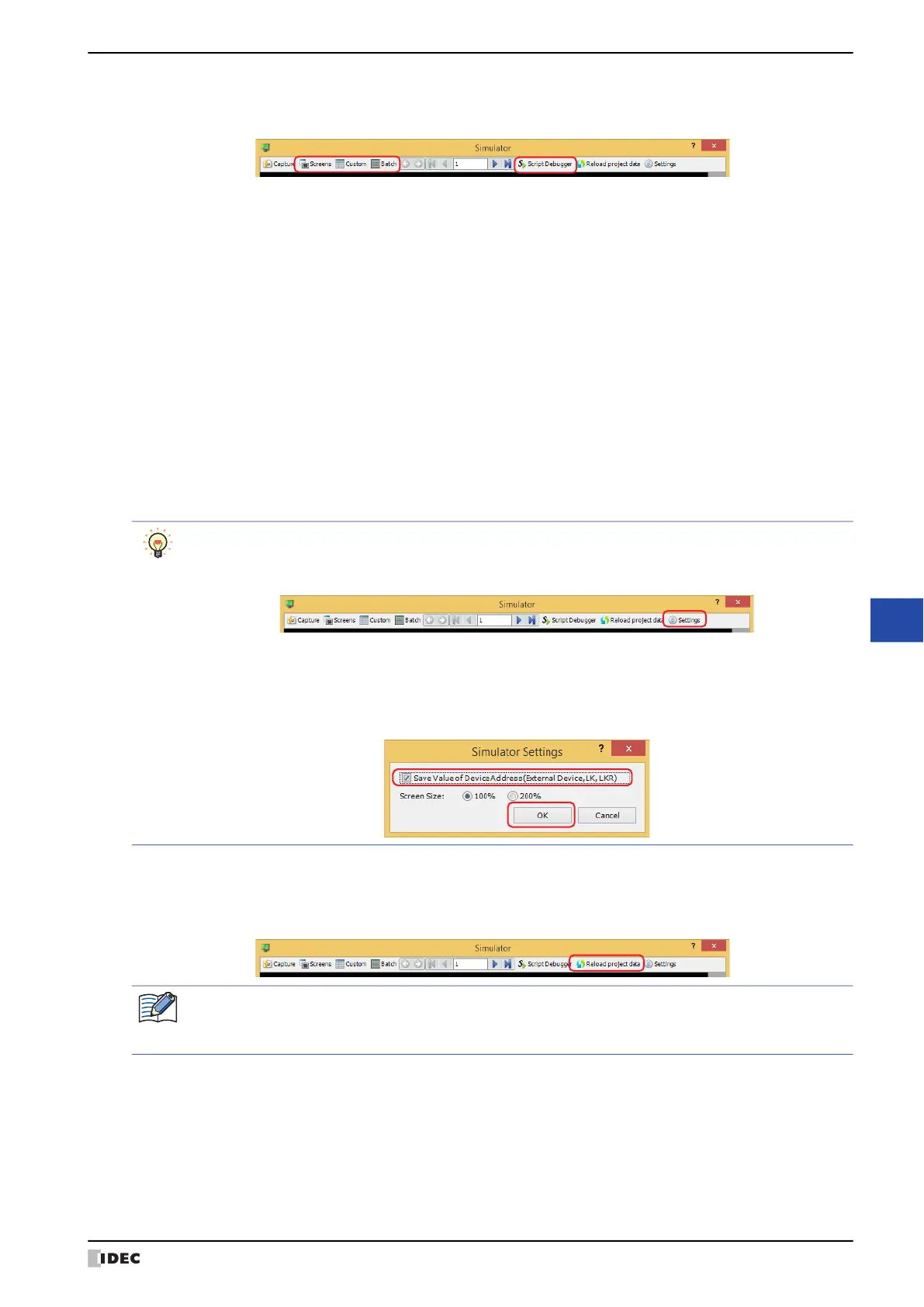

WindO/I-NV4 User’s Manual 26-5
2 Using the Simulator
26
Simulator Function
2 Select the monitor being used.
When monitoring starts, the screen monitor is displayed.
■ Screens
Automatically checks device addresses used on the screen displayed on the Simulator. For details, refer to “3.2 Screen
Monitor” on page 26-10.
■ Custom
Registers monitored device addresses individually and displays the value of device addresses. For details, refer to “3.3
Custom Monitor” on page 26-11.
■ Batch
Registers monitored device address as a batch for sequential address numbers and displays the value of device
addresses. For details, refer to “3.4 Batch Monitor” on page 26-13.
■ Script Debugger
Check the operation of the script used in the project. For details, refer to “3.5 Script Debugger” on page 26-15.
3 Check operation of project data by monitoring and changing values of device addresses, and edit project data if there
is an error.
If the monitored screen is switches, repeat steps
1.
4 If you have edited the project data, click Reload project data to update the project displayed in the simulator.
The Reload Project dialog box is displayed.
If the Save Value of Device Address (External Device, LK, LKR) check box is cleared, proceed to step
6.
Click Settings to save the values of device addresses on the external device, HMI keep relays (LK), and
HMI keep registers (LKR) that were input in the simulator.
The Simulator Settings dialog box is displayed.
After the Simulator Settings dialog box is displayed, select the Save Value of Device Address
(External Device, LK, LKR) check box, and then click OK.
The values of device addresses that are saved are the values when the simulator is terminated or when
Reload project data is clicked.
If the project data was changed, a confirmation message to save the project data is displayed.
• Click OK to save and load the project data.
• Click Cancel to return to the editing screen without saving the project data.
To Next Page
