2 PLC Program Transfer Function
29
Data Transfer Function

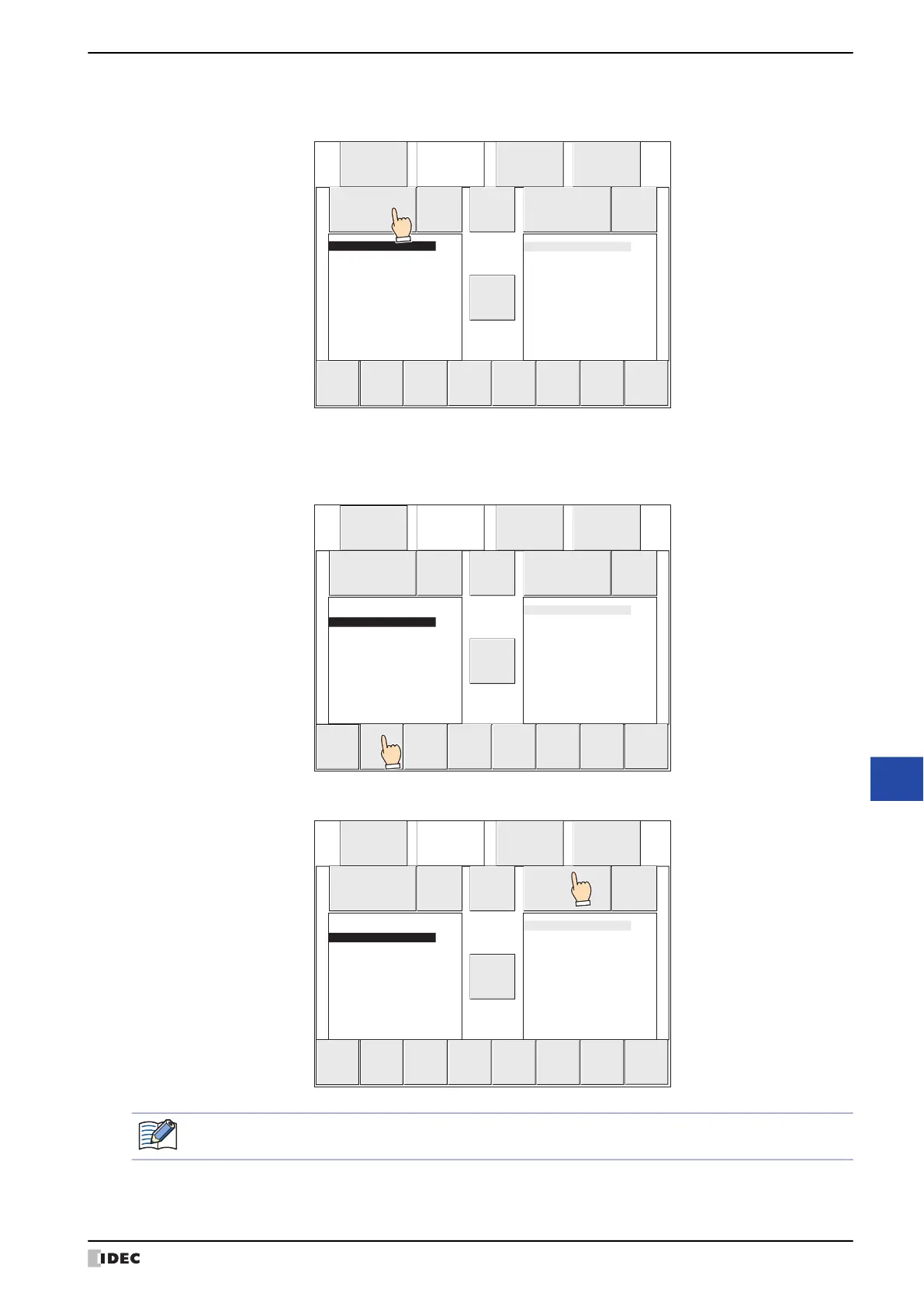

8 Press DRIVE: for the transfer source and select the external memory device inserted in the MICRO/I.
This example screen shows when an SD memory card is selected.
9 Select the ZLD Project File to download.
This example screen shows when the ZLD Project File is “PLOGRAM01.ZLD”.
Press ▼ to select “PLOGRAM01.ZLD”.
10 Press DRIVE: for the transfer destination and select PLC.
Main
Menu
---
File
Manager
---
▲
DEL
▼
▲
▲
RELOAD ENT COPY
DIRECTION
▲
FILTER
ALL
FILTERS
DRIVE:
SD card
FORMAT
DRIVE:
MICRO/I
FORMAT
HGDATA01 < DIR >
PLOGRAM01.zld
MICROI.ZNV
Main
Menu
---
File
Manager
---
▲
DEL
▼
▲
▲
RELOAD ENT COPY
DIRECTION
▲
FILTER
ALL
FILTERS
DRIVE:
SD card
FORMAT
DRIVE:
MICRO/I
FORMAT
HGDATA01 < DIR >
PLOGRAM01.zld
MICROI.ZNV
Main
Menu
---
File
Manager
---
▲
DEL
▼
▲
▲
RELOAD ENT COPY
DIRECTION
▲
FILTER
ALL
FILTERS
DRIVE:
SD card
FORMAT
DRIVE:
PLC
FORMAT
HGDATA01 < DIR >
PLOGRAM01.zld
PLC.ZLD
When PLC is selected with DRIVE: in the file manager, “PLC.ZLD” is always displayed. This is not the
program file name for the PLC connected to the MICRO/I.
