WindO/I-NV4 User’s Manual 35-45

3 HG4G/3G, HG2G-5F

MICRO/I Specifications

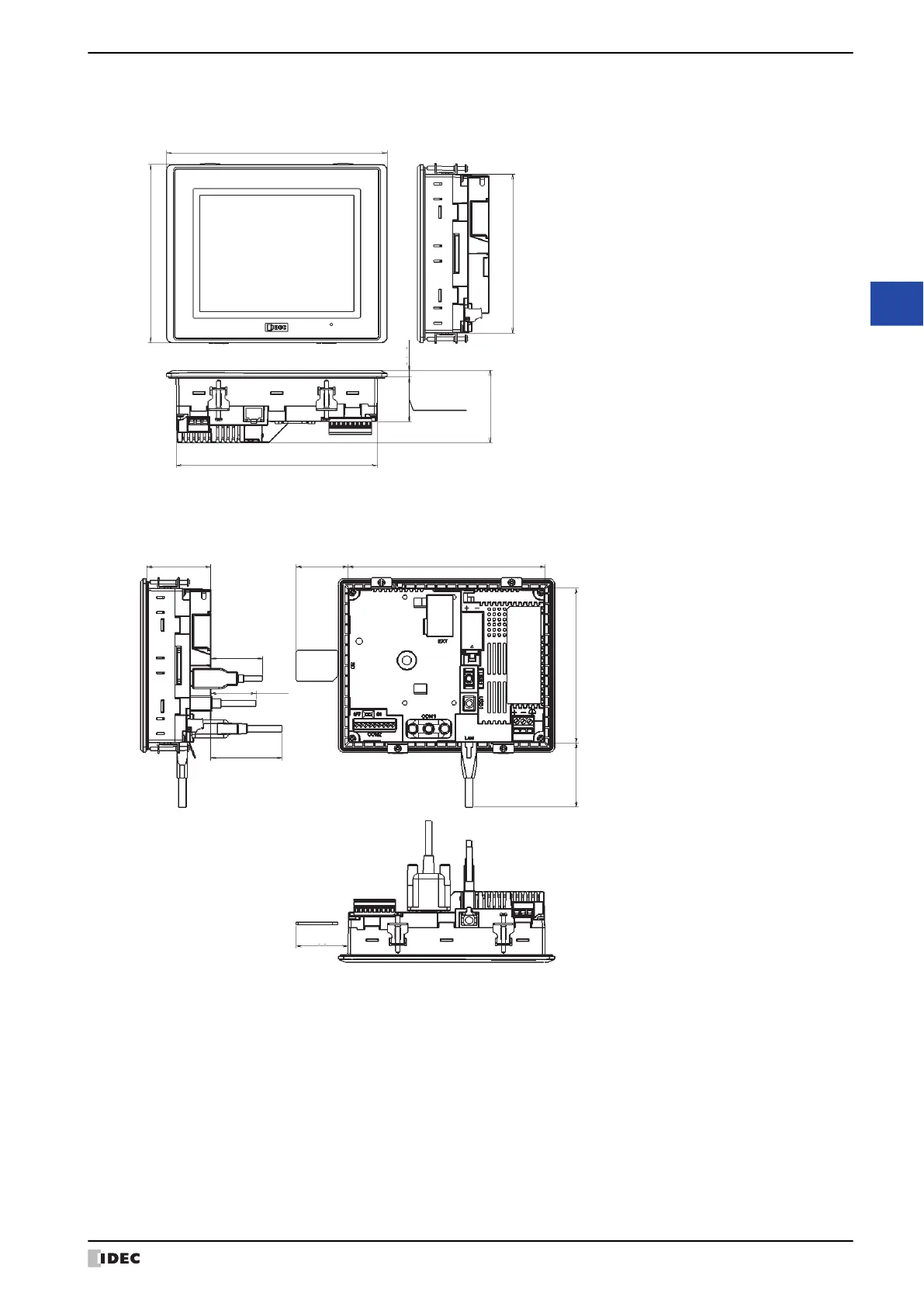

■ HG2G-5F (5.7inch)

Unit: mm

# The size to the expansion module installation side

Depending on the type of connection cable used the dimensions shown above will change.

The dimensions given here are representative values and are intended for reference only.

#33.6

120

134.7

54.4

167.2

152.5

49.4

152.5

120
