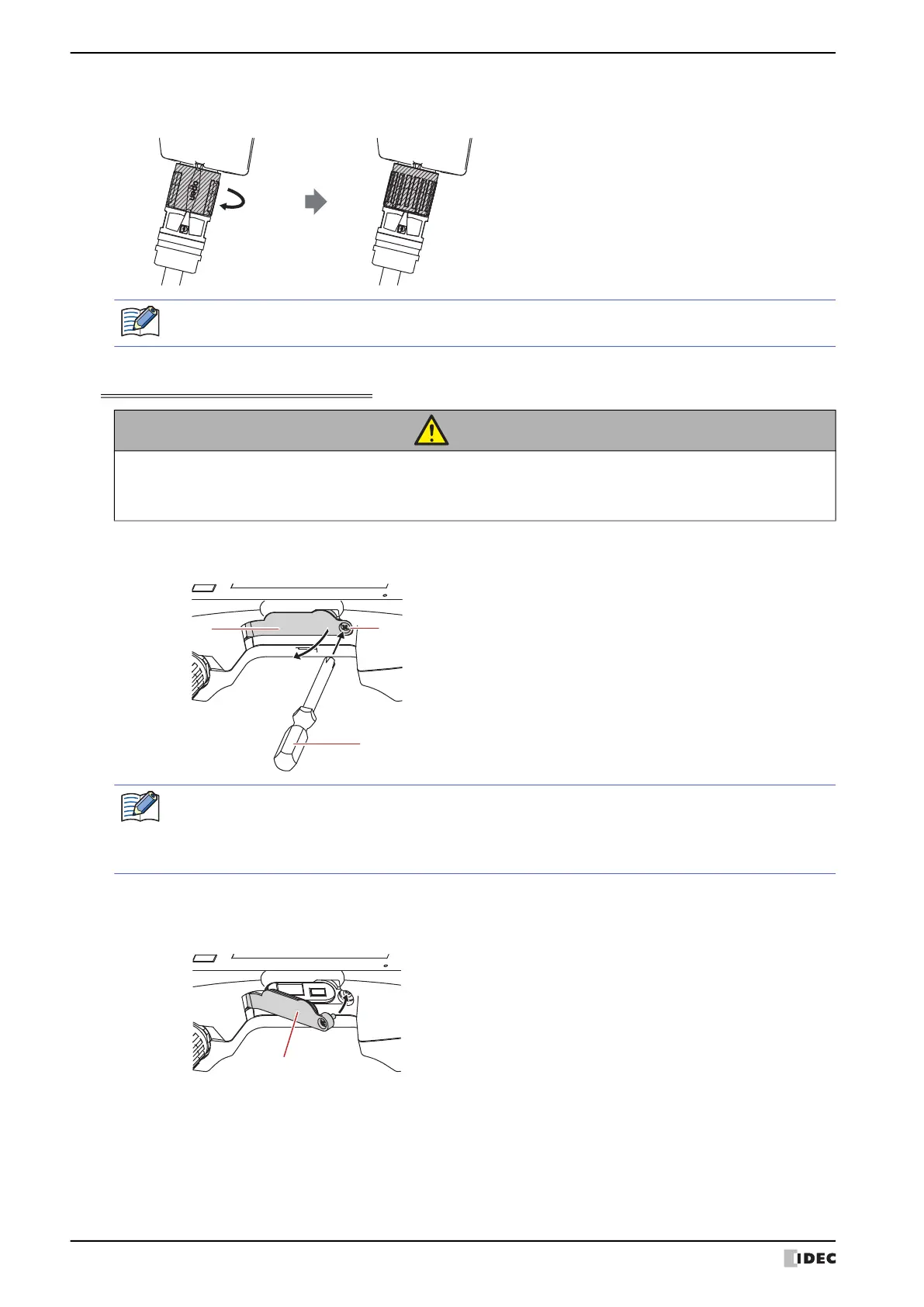

Turn the shaded portion of the connector clockwise 90°.
Removing and Installing the USB Port Cover
■ Removing the USB Port Cover
Unscrew the USB port cover screw with a Phillips screwdriver, and then pull the USB port cover outward to open it.
■ Installing the USB Port Cover
Recommend tightening torque while keeping it from lifting up from the case.
Before locking the connector After locking the connector
The connector will stop turning at 90°. Do not try to turn it past 90°.
CAUTION
• When attaching the cover, tighten the screw to the recommended tightening torque (0.6 N·m).
• When installing the HG1P, make sure that the gasket is not twisted. Because any twisting in the
gasket will impair the waterproof characteristics.
Phillips Screwdriver
USB Port Cover Screw
USB Port Cover
Only one side of the USB port cover opens.
Be careful when opening the USB port cover because the part that opens may be damaged if excessive force
is used.
Do not remove the USB port cover screw from the USB port cover.
Press with your finger
