6
Drawings and Parts
● Display order of overlapping parts that have None selected for Image Type
• When a drawing and a part that has None selected for Image Type placed on a base screen or popup screen
overlap, if the value for the part changes or if the picture for the part changes, the portion of the background
drawing that was overlapped remains missing.

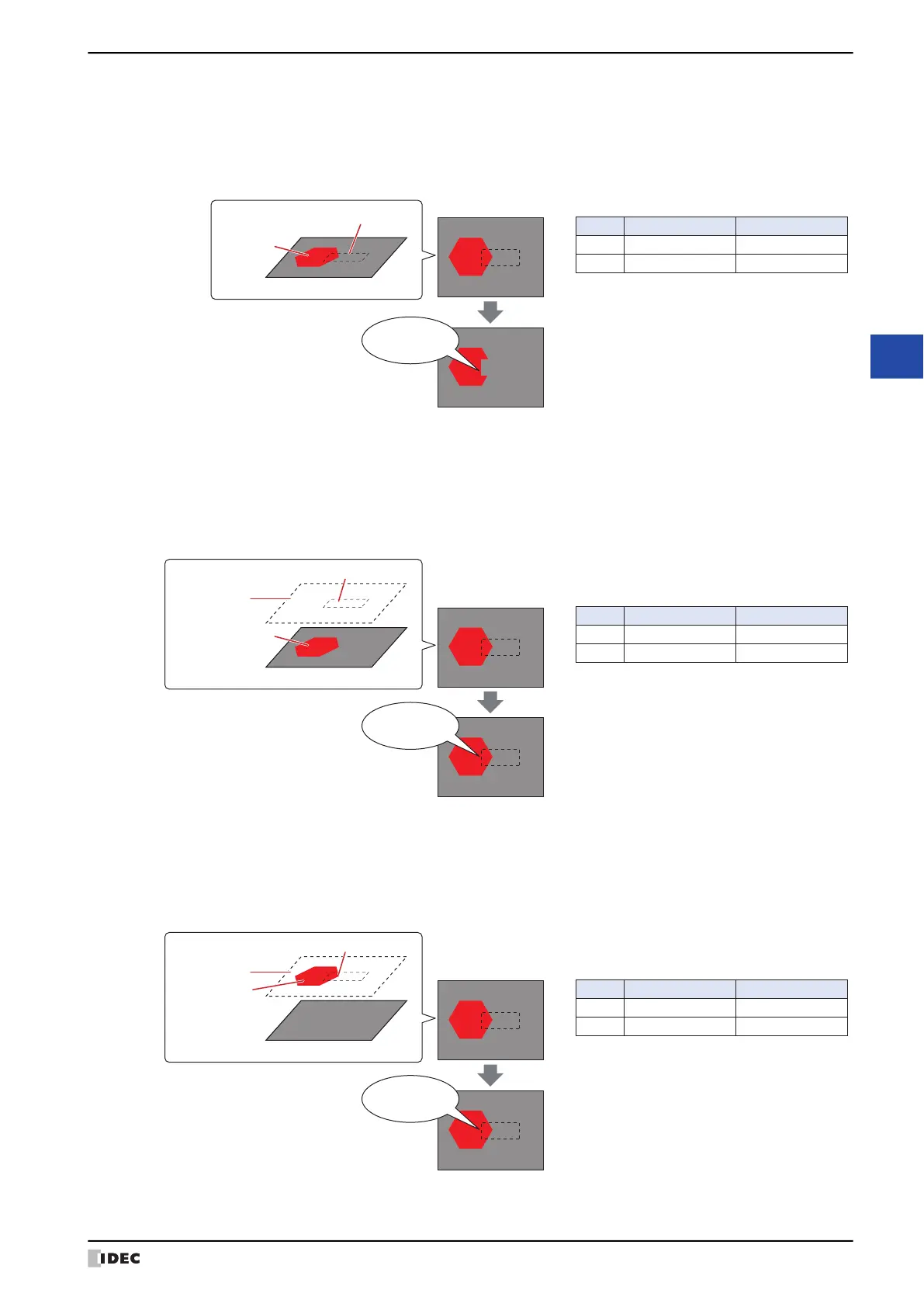

Example: An equilateral hexagon is placed on the base screen and a Numerical Display is placed in front of it.
• When a drawing placed on a base screen or popup screen and a part that has None selected for Image Type
placed on the top layer overlap, if the value for the part changes or if the picture for the part changes, no part of
the drawing on the base screen will be missing.
Example: An equilateral hexagon is placed on the base screen and a Numerical Display is placed on the top layer.
• When a drawing and a part that has None selected for Image Type placed on the top layer overlap, if the value
for the top layer part changes or if the picture for the part changes, no part of the background drawing will be
missing.
Example: An equilateral hexagon is placed on the top layer and a Numerical Display is placed in front of it.
Display for Base Screen: 1
Overlapping part for the equilateral hexagon and Numerical Display is the
background for the screen and the equilateral hexagon remains missing.
Type
Equilateral hexagon
Numerical Display
1
2
LayerNo.
Object list
1234
9999
Changes the value
1234
Equilateral
Hexagon
Numerical Display
Base Screen: 1
Display for Base Screen: 1
Type
Equilateral hexagon
Numerical Display
1
2
LayerNo.
Object list
Top Layer
1234
9999
Changes the value
1234
The equilateral hexagon remains
Top Layer
Equilateral
Hexagon
Numerical Display
Base Screen: 1
Display for Base Screen: 1
The equilateral hexagon remains
Type
Equilateral hexagon
Numerical Display
1
2
LayerNo.
Object list
Top Layer
Top Layer
1234
9999
Changes the value
1234
Top Layer
Equilateral
Hexagon
Numerical Display
Base Screen: 1
