WindO/I-NV4 User’s Manual 7-13
1 Shapes
7
Drawings
■ Coordinates
■ Size
■ Place on the Top Layer
Select this check box to display the circle or ellipse on the top layer. The circle or ellipse will have precedence when
other drawings and parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping”
on page 6-5.

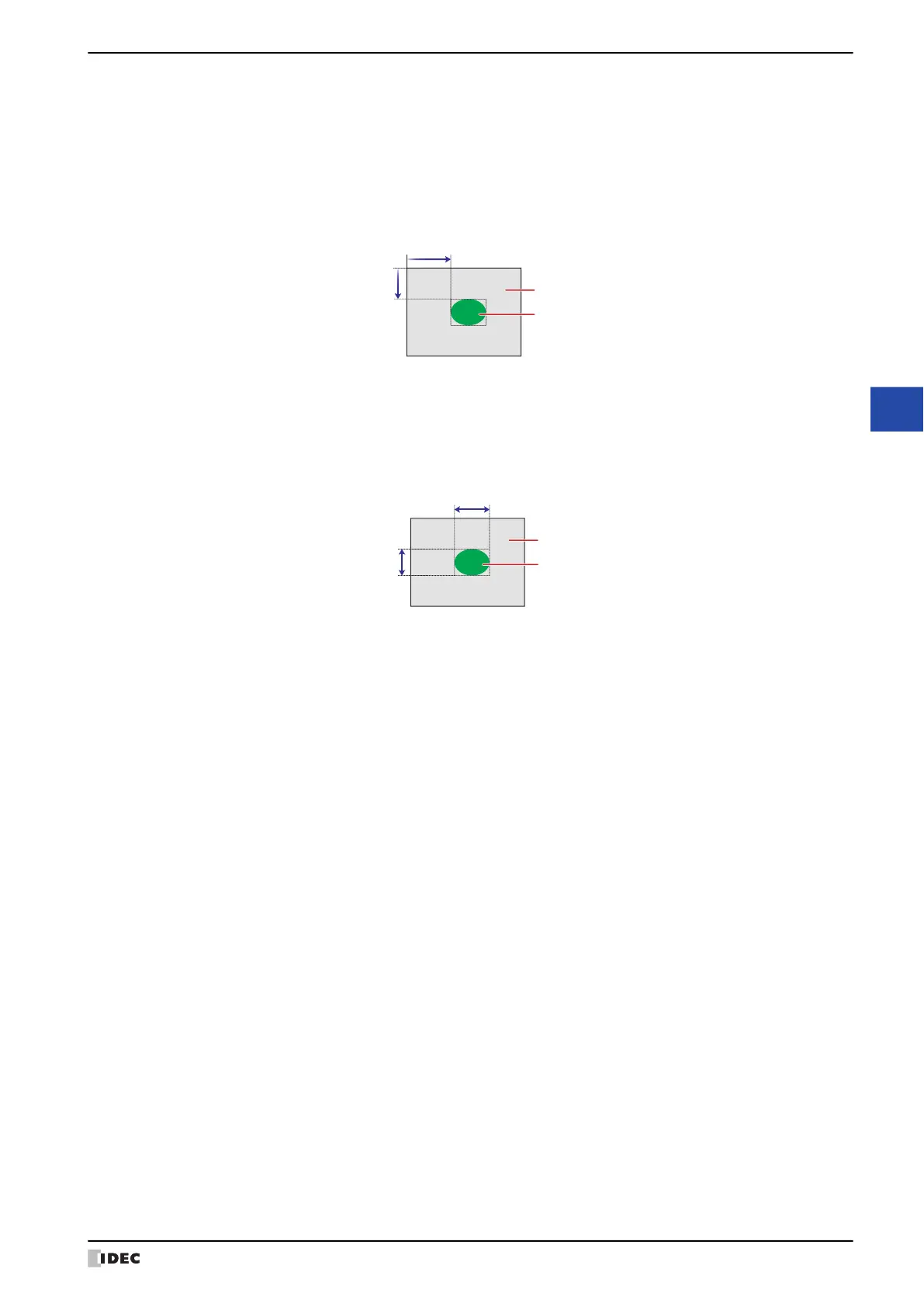

X, Y: Specifies the display position of the circle or ellipse in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the circle or ellipse is the X and Y coordinates.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Circle/ellipse
W, H: Specifies the size of the circle or ellipse in width and height.
W: 1 to (base screen horizontal size)
H: 1 to (base screen vertical size)
Width
Height
Screen
Circle/ellipse
To Next Page
