WindO/I-NV4 User’s Manual 7-21
1 Shapes
7
Drawings
■ Size
■ Place on the Top Layer
Select this check box to display the equilateral polygon on the top layer. The equilateral polygon will have precedence
when other drawings and parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts
Overlapping” on page 6-5.
W: Sets width to define the size of the equilateral polygon. The maxium size varies based on the item
selected for Installation.
Horizontal: 1 to (base screen vertical size)
Vertical: 1 to (base screen horizontal size)
H: Displays the same as the width.

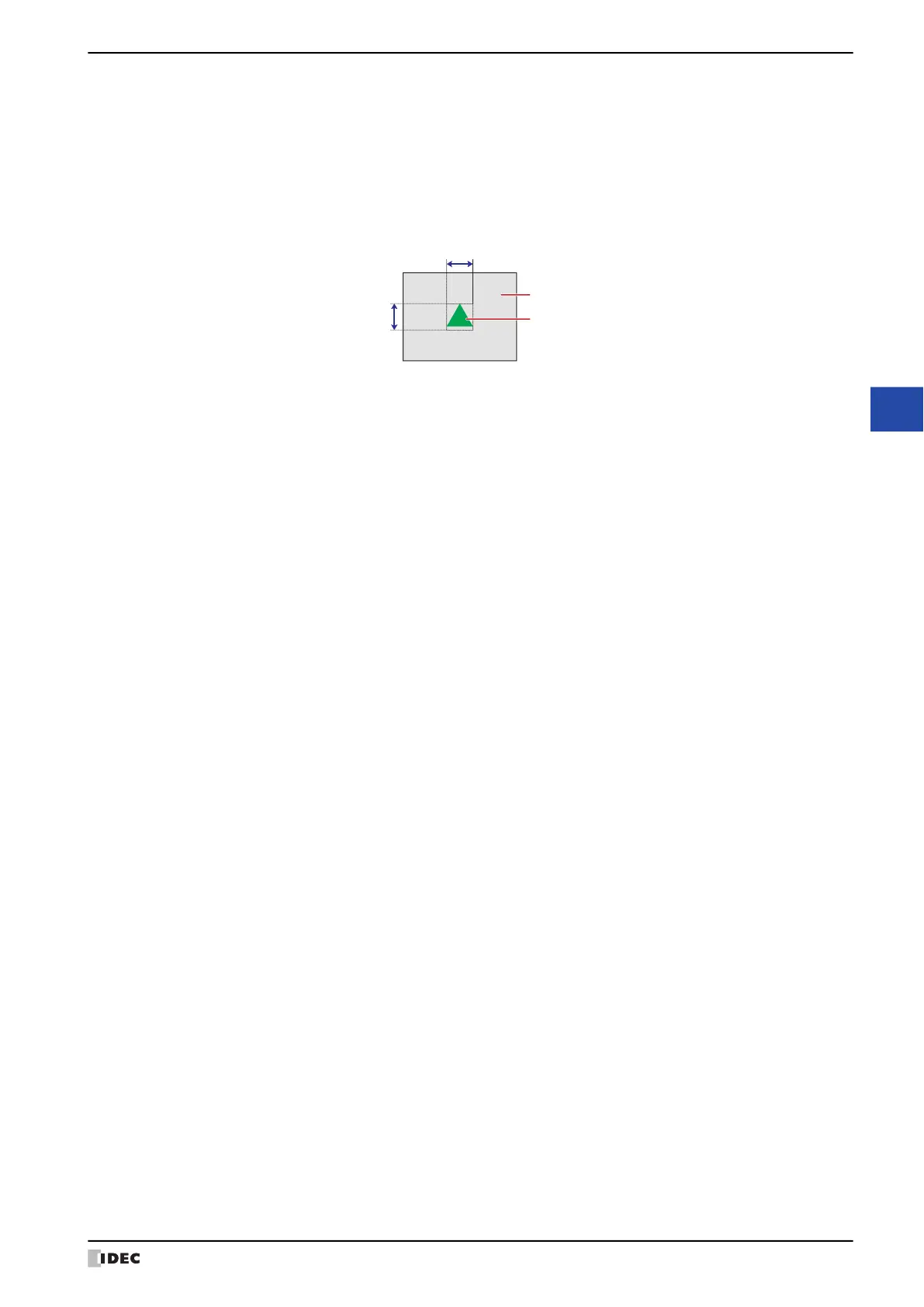

Width
Height
Screen
Equilateral polygon
