2 Word Button
8-20 WindO/I-NV4 User’s Manual
■ Set
■ Move
■ Momentary
■ Alternate

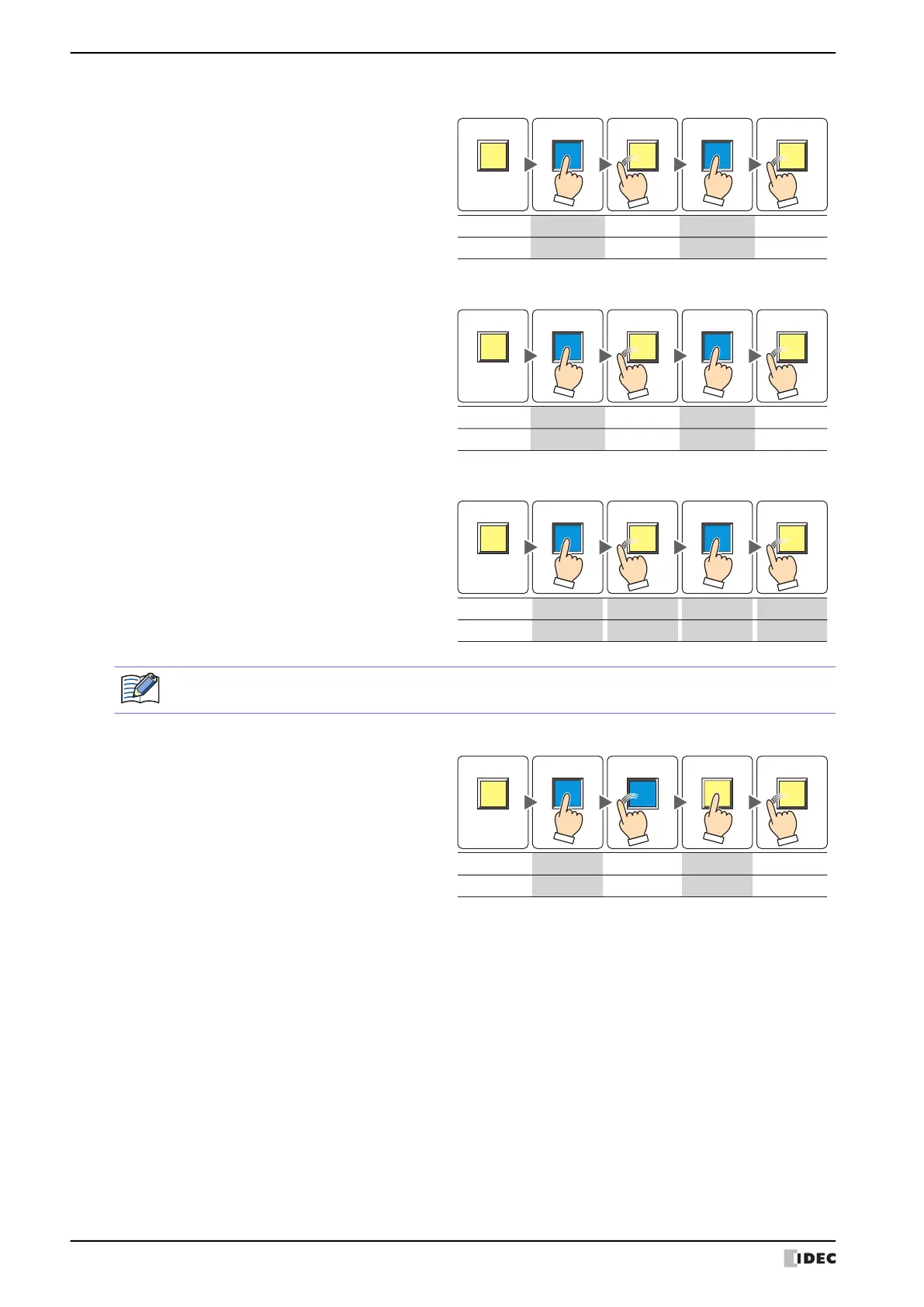

Pressing the button writes a fixed
value to a word device.
Release
Initial image
Press ReleasePress
Write
Value
Operation and
view
Action
Data written
Write
Value
Pressing the button writes the value of
source device address to the
destination word device.
ReleasePress ReleasePress
Initial image
Write
Value in
device address
Operation and
view
Action
Data written
Write
Value in
device address
Pressing the button writes the fixed
value of ON Data to a word device.
Releasing the button writes the fixed
value of OFF Data to a word device.
ReleasePress ReleasePress
Initial image
Write
ON data
Operation and
view
Action
Data written
Write
ON data
Write
OFF data
Write
OFF data
Pressing and holding the button until the screen changes causes the OFF data to be written to the word
device.
Each press of the button alternately
writes the fixed value of ON data and
OFF data to the word device.
ReleasePress ReleasePress
Initial image
Write
ON data
Operation and
view
Action
Data written
Write
OFF data
