■ Place on the Top Layer
Select this check box to display the parts on the top layer. The parts will have precedence when other drawings and
parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
■ Coordinates
■ Size

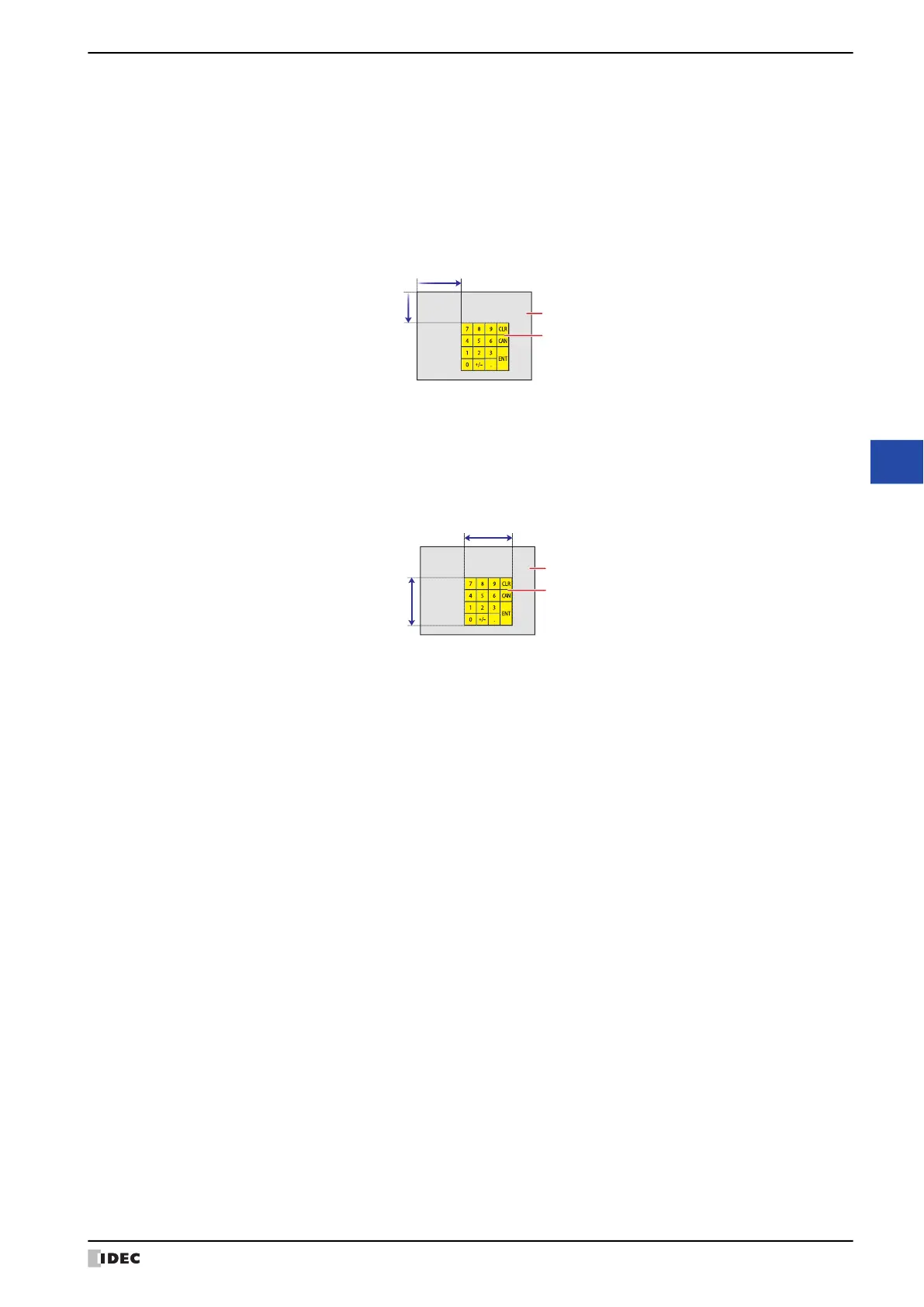

X, Y: Specify the display coordinates of the Keypad.
X and Y specify the upper left corner of the Keypad using the upper left corner of the screen as the origin.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Keypad
W, H: Specify the size of the Keypad by specifying width and height.
W: 20 to (base screen horizontal size)
H: 20 to (base screen vertical size)
Width
Height
Screen
Keypad
