1 Pilot Lamp
9
Lamps
Trigger Type: Selects the condition to display the Pilot Lamp from the following.
Always visible:
The Pilot Lamp is always displayed.
While ON: Displays the Pilot Lamp when the value of device address is 1.
While OFF: Displays the Pilot Lamp when the value of device address is 0.
While satisfying the condition: Displays the Pilot Lamp when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the visible condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Device Address:
Specifies the bit device or the bit number of the word device to serve as the visible condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-70.
Condition: Specifies the conditional expression for the visible condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
Comment: Used for entering a comment for the visible condition. The maximum number is 80 characters.

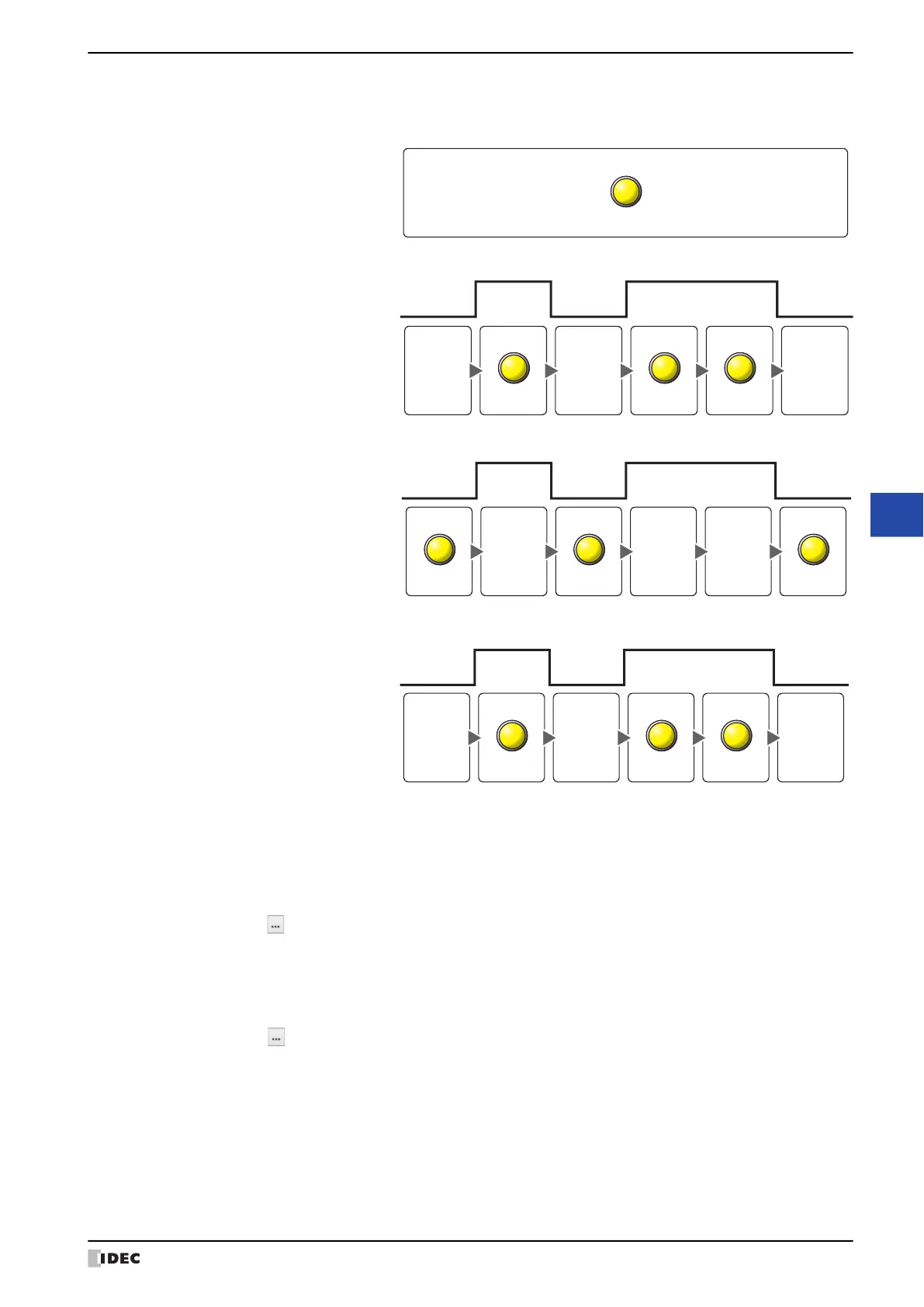

Always show
Pilot Lamp state
1
0
Hide
Show
Hide Hide
Show Show
Value of
device address
Pilot Lamp state
1
0
Show Show ShowHide Hide Hide
Value of
device address
Pilot Lamp state
Pilot Lamp state
Hide Hide Hide
Show Show Show
Satisfied
Not satisfied
Condition
