WindO/I-NV4 User’s Manual 9-17

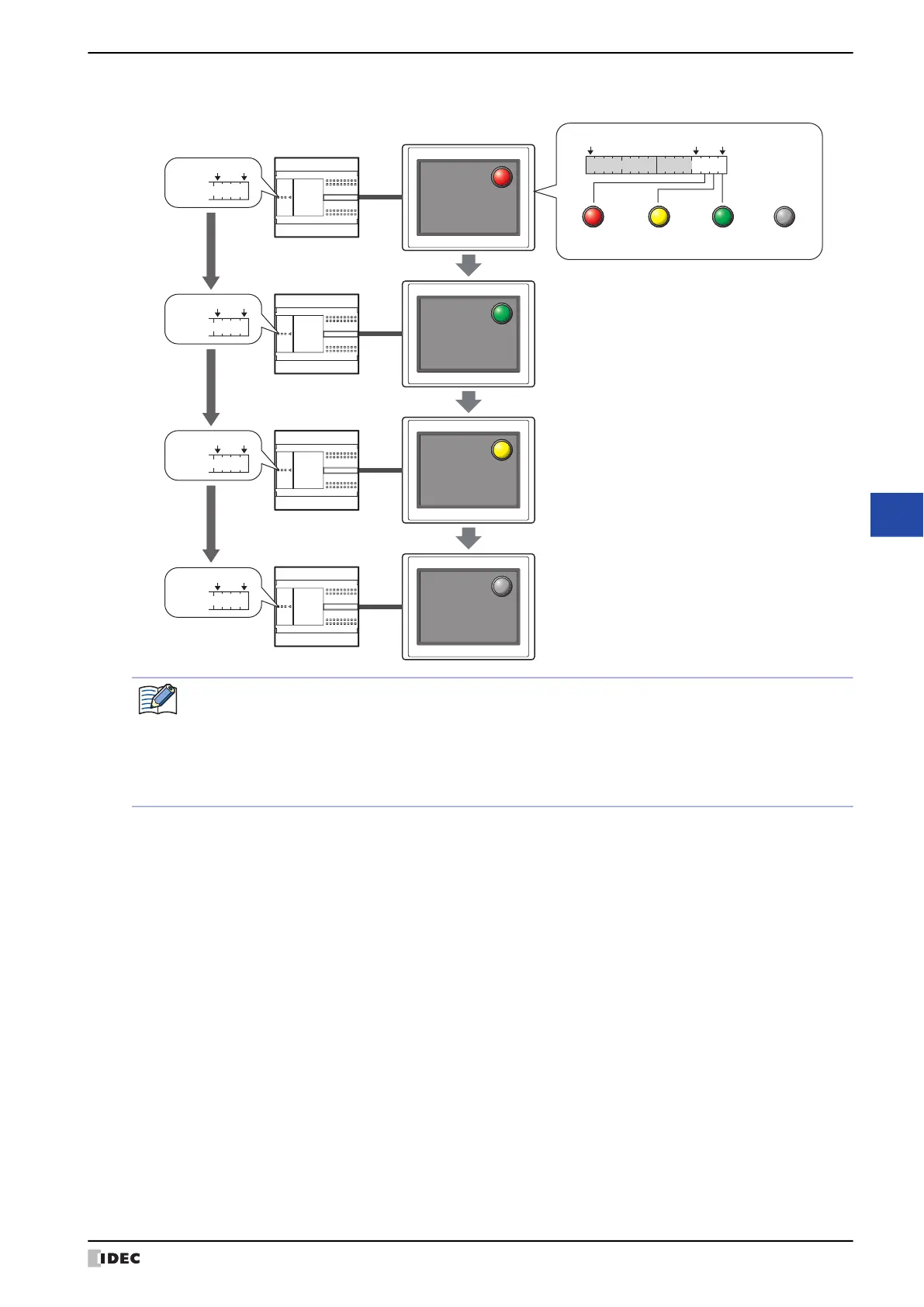

2 Multi-State Lamp

Lamps

• Display a picture when in the OFF state.

MICRO/I

External device

bit15 bit0

bit3

D0= 0100

bit0

bit3

D0= 0001

bit0

bit3

D0= 0010

bit0

bit3

D0= 0000

bit0

bit3

OFF

State:

The conditions to display the picture set by the OFF state on the screen are as follows.

• Y is selected under Flash on the State tab and the trigger condition is not satisfied.

• Switching Method on the General tab is Bit Number, and the all bit in the device address are 0 or a

bit not allocated a picture is 1.

• Switching Method on the General tab is Value, and the value of device address is a number not

allocated a picture.
