2 Multi-State Lamp
9-28 WindO/I-NV4 User’s Manual

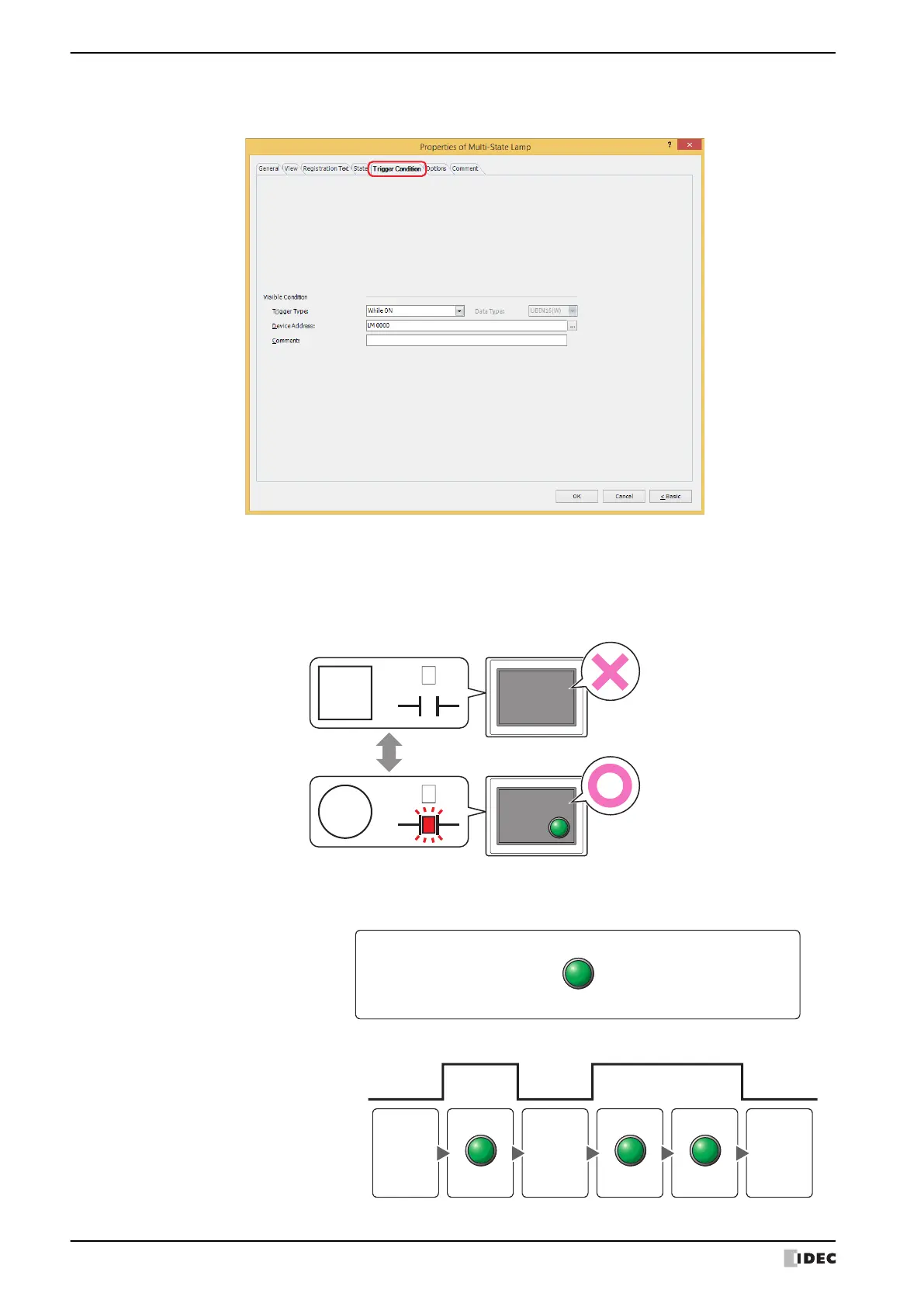

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
■ Visible Condition
The Multi-State Lamp is displayed while the condition is satisfied. The Multi-State Lamp is hidden while the condition
is not satisfied.
Example: When Trigger Type is While ON and Device Address is LM0
While LM0 is 0, the condition is not satisfied and the Multi-State Lamp is hidden.
While LM0 is 1, the condition is satisfied and the Multi-State Lamp is displayed.
Trigger Type: Selects the condition to display the Multi-State Lamp from the following.
Always
visible:
The Multi-State Lamp is always displayed.
While ON: Displays the Multi-State Lamp when the value of device address is 1.
LM0
:
MICRO/I
0
LM0
:
1
Show
Condition
Not
satisfied
Condition
Satisfied
Hide
Always show
Multi-State
Lamp state
1
0
Hide
Show
Hide Hide
Show Show
Value of
device address
Multi-State
Lamp state
To Next Page
