1 Numerical Input
10-18 WindO/I-NV4 User’s Manual
■ Visible Condition
The Numerical Input is displayed while the condition is satisfied. The Numerical Input is hidden while the condition is
not satisfied.
While OFF: Enables the Numerical Input when the value of device address is 0.
While satisfying the condition: Enables the Numerical Input when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the input condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Device Address: Specifies the bit device or the bit number of the word device to serve as the input condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-70.
Condition: Specifies the conditional expression for the input condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
Comment: Used for entering a comment for the input condition. The maximum number is 80 characters.

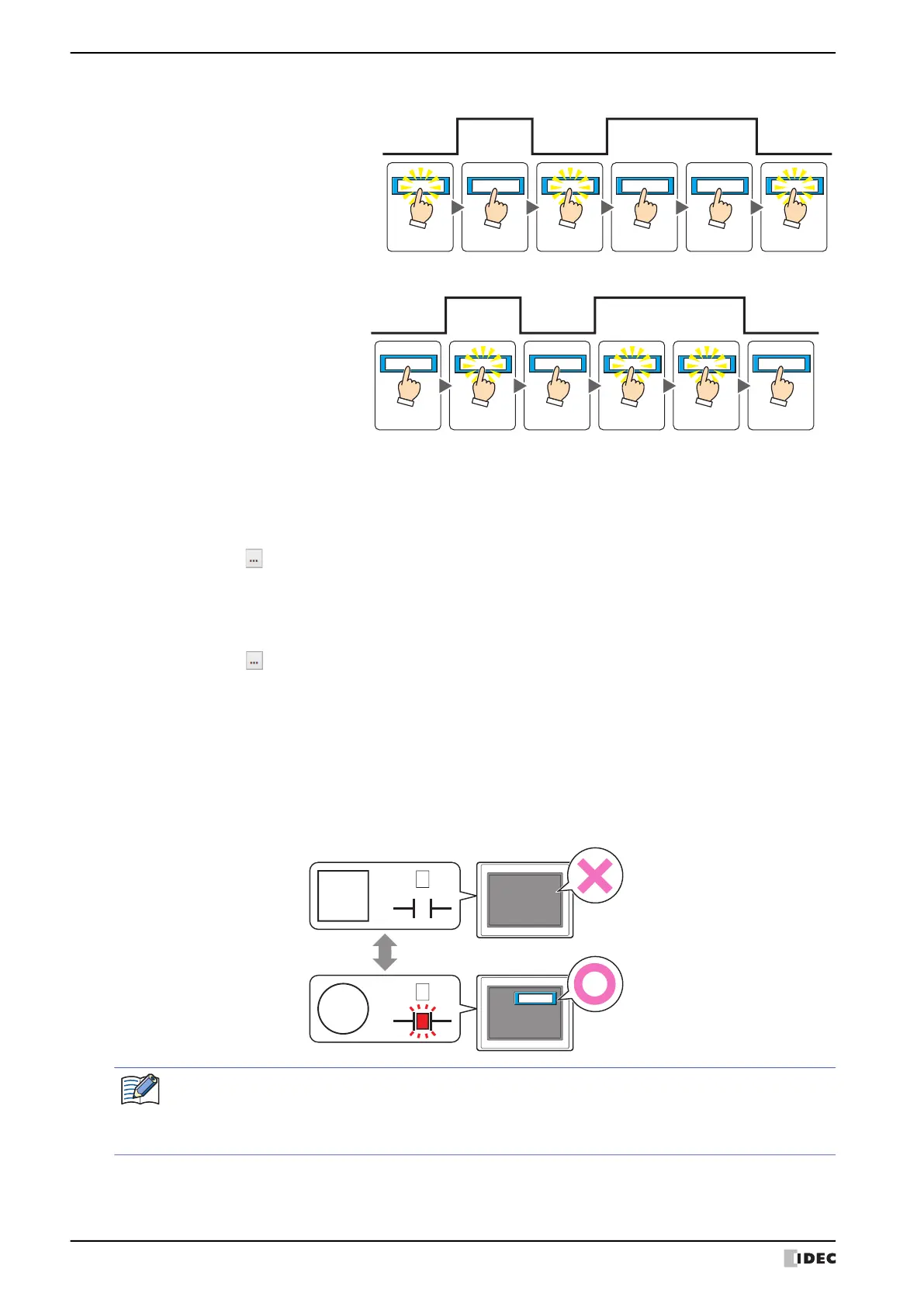

1
0
Enabled Enabled EnabledDisabled Disabled Disabled
Value of
Device Address
Numerical
Input state
123 123 123123 123 123
Satisfied
Not satisfied
Disabled Disabled Disabled
Enabled Enabled Enabled
Numerical
Input state
Condition
123 123 123
123 123 123
Example: When Trigger Type is While ON and Device Address is LM0
While LM0 is 0, the condition is not satisfied and the Numerical Input is hidden.
While LM0 is 1, the condition is satisfied and the Numerical Input is displayed.
LM0
:
MICRO/I
0
LM0
:
1
Show
Condition
Not
satisfied
Condition
Satisfied
123
Hide
• If the Numerical Input is hidden while entering a value, the input is canceled. If a popup screen
configured as the standard keypad or a keypad is displayed, these screens are closed.
• When multiple Numerical Inputs are arranged on the screen and the Focus is moved by ENT button
check box is selected, entry mode is canceled if the Numerical Input is hidden while entering a value.
