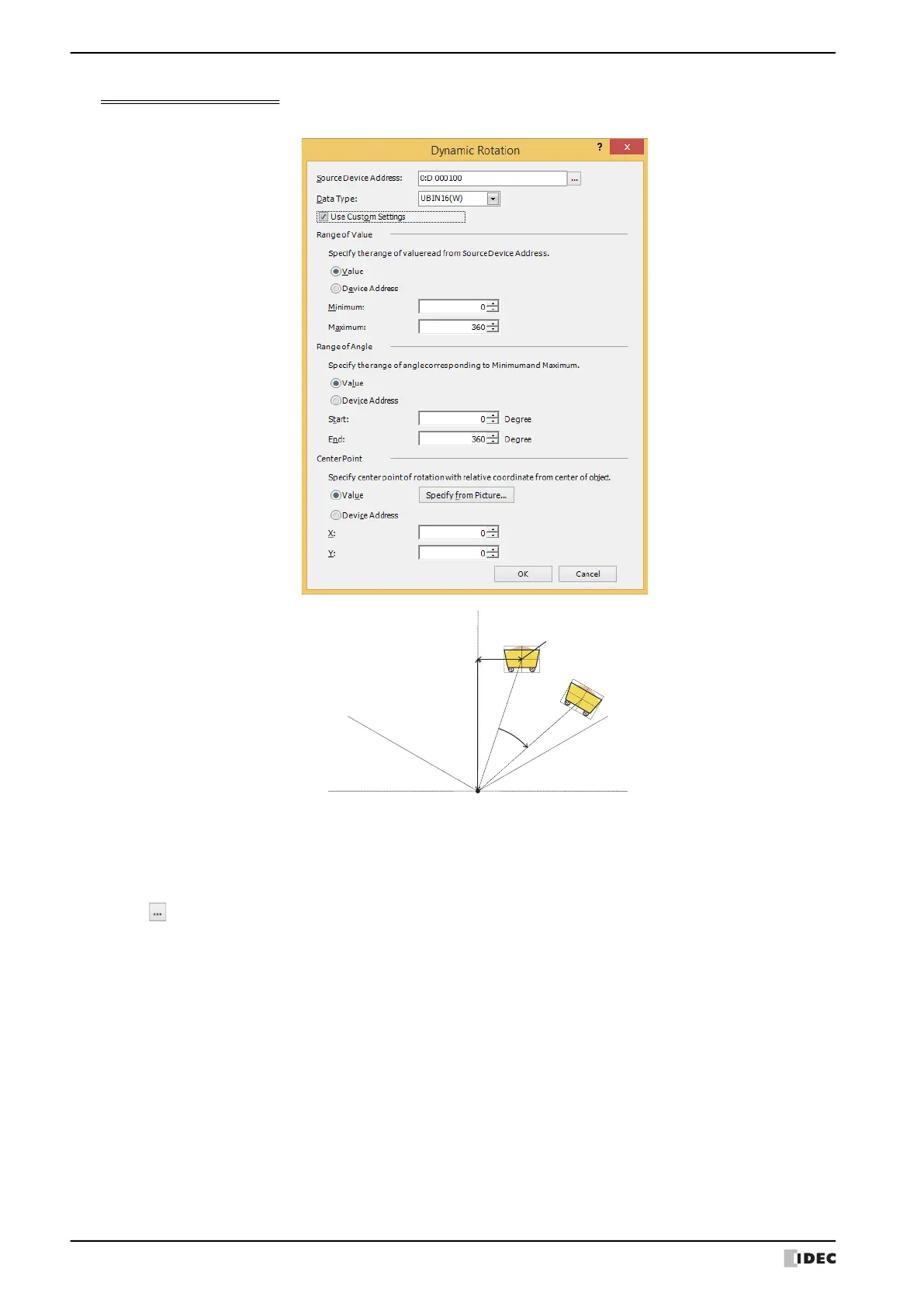

Dynamic Rotation Dialog Box
Configures details for rotating and displaying a picture.
■ Source Device Address
Specifies the word device to be read that holds the value of the rotation angle of the picture.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Data Type
Selects the type of data that will be used to rotate the picture.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Use Custom Settings
Select this check box to configure the range of values to read from the Source Device Address, the range of the
rotation angle, the coordinate point of the center point that will serve as the pivot point for rotation.
When this check box is cleared, rotate the picture with the minimum value is 0, the maximum value is a fixed value
specified in the Maximum under the Range of Value, and the Range of Angle to rotate is 0 to 360 degrees.
Maximum
End angle of rotation
Center Point (X Point, Y Point)
Pivot point of rotation
The center of picture
Rotation angle
X
Y
Minimum
Start angle of rotation
