3 Picture Display
10
Data Displays
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
■ Comment
Used for entering comments about trigger conditions. Maximum number is 80 characters.
■ While not satisfying the condition
Selects operation of parts when condition is not satisfied.

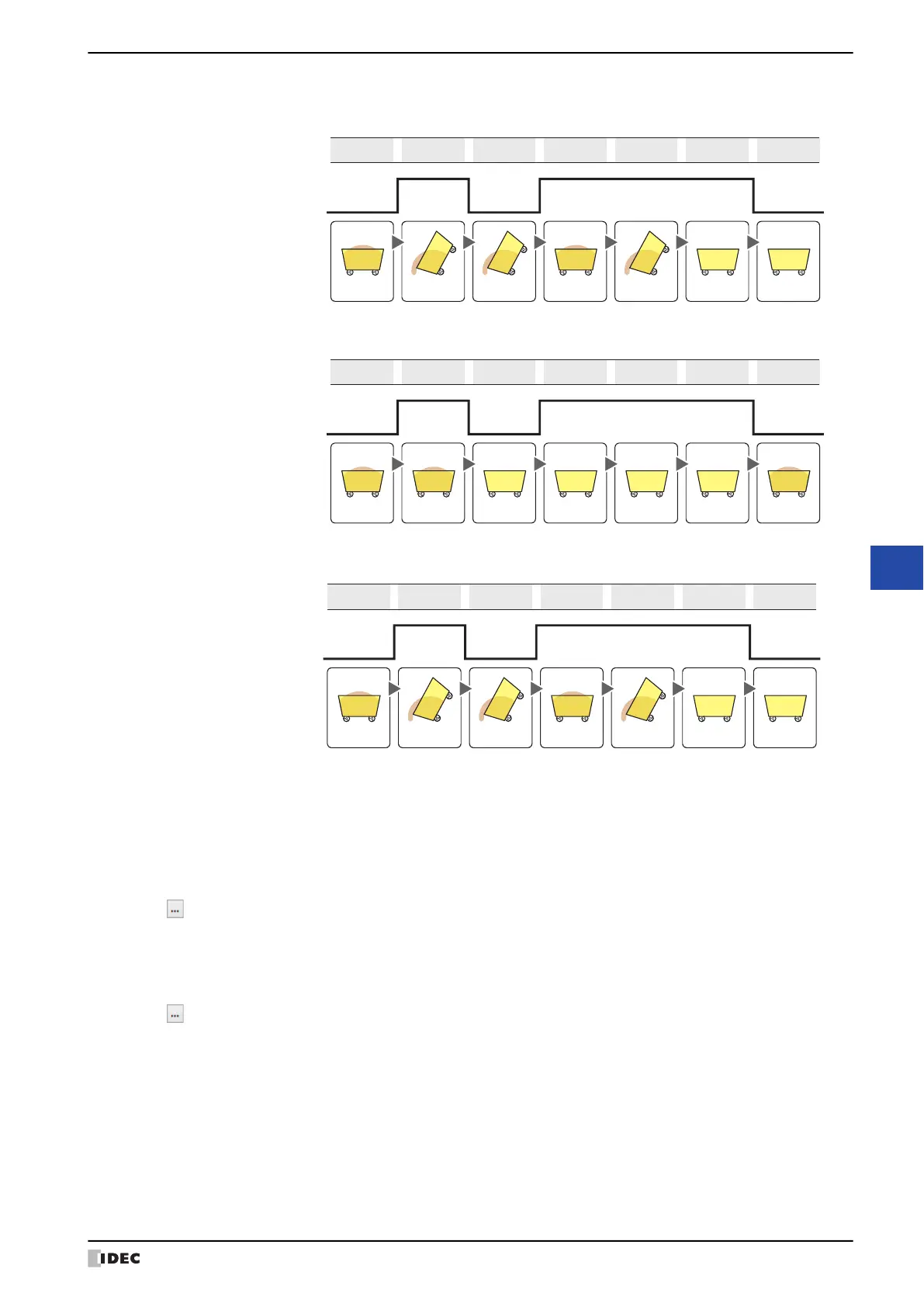

While ON: Enables the Picture Display when the value of device address is 1.
Example: When While not satisfying the condition is Not update Picture data
While OFF: Enables the Picture Display when the value of device address is 0.
Example: When While not satisfying the condition is Not update Picture data
While satisfying the condition: Enables the Picture Display when the condition is satisfied.
Example: When While not satisfying the condition is Not update Picture data
Value of
Device Address
1
0
Update Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update
Value of
Device Address
1
0
Update Do not update Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update
Update
Update Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update
Satisfied
Not satisfied
Condition
Not update Picture data: The last updated graphic is displayed. The graphic does not change.
Not show Picture Display: Graphic is not displayed.
