WindO/I-NV4 User’s Manual 10-77

3 Picture Display

Data Displays

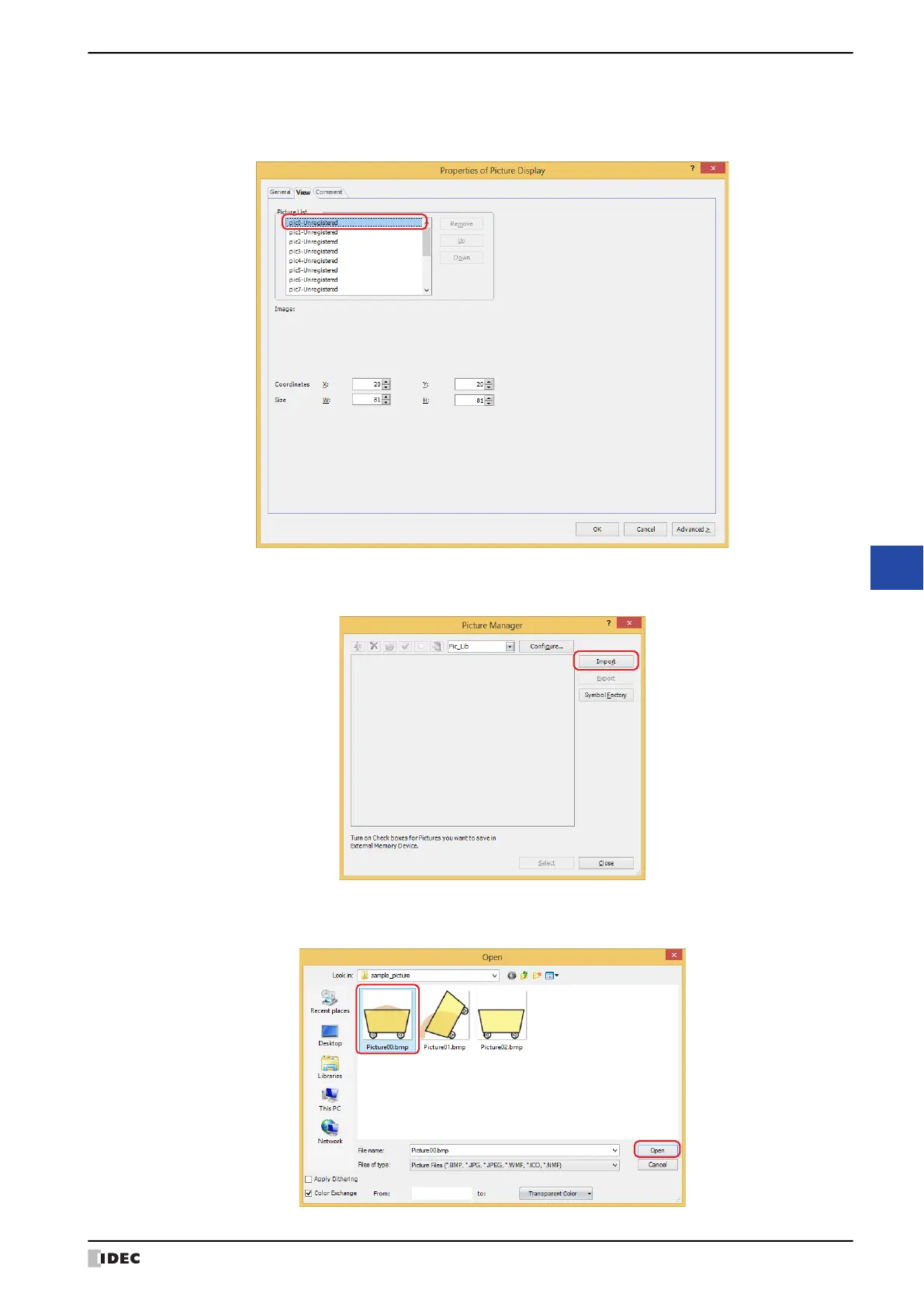

5 Registers the pictures to display on the Picture List.

Double click "pic0-Unregistered".

Picture Manager is displayed.

6 Click Import.

Open dialog box is displayed.

7 Specify the image file, and then click Open.

The picture is saved in Picture Manager.
