9 Data Log Display
10
Data Displays

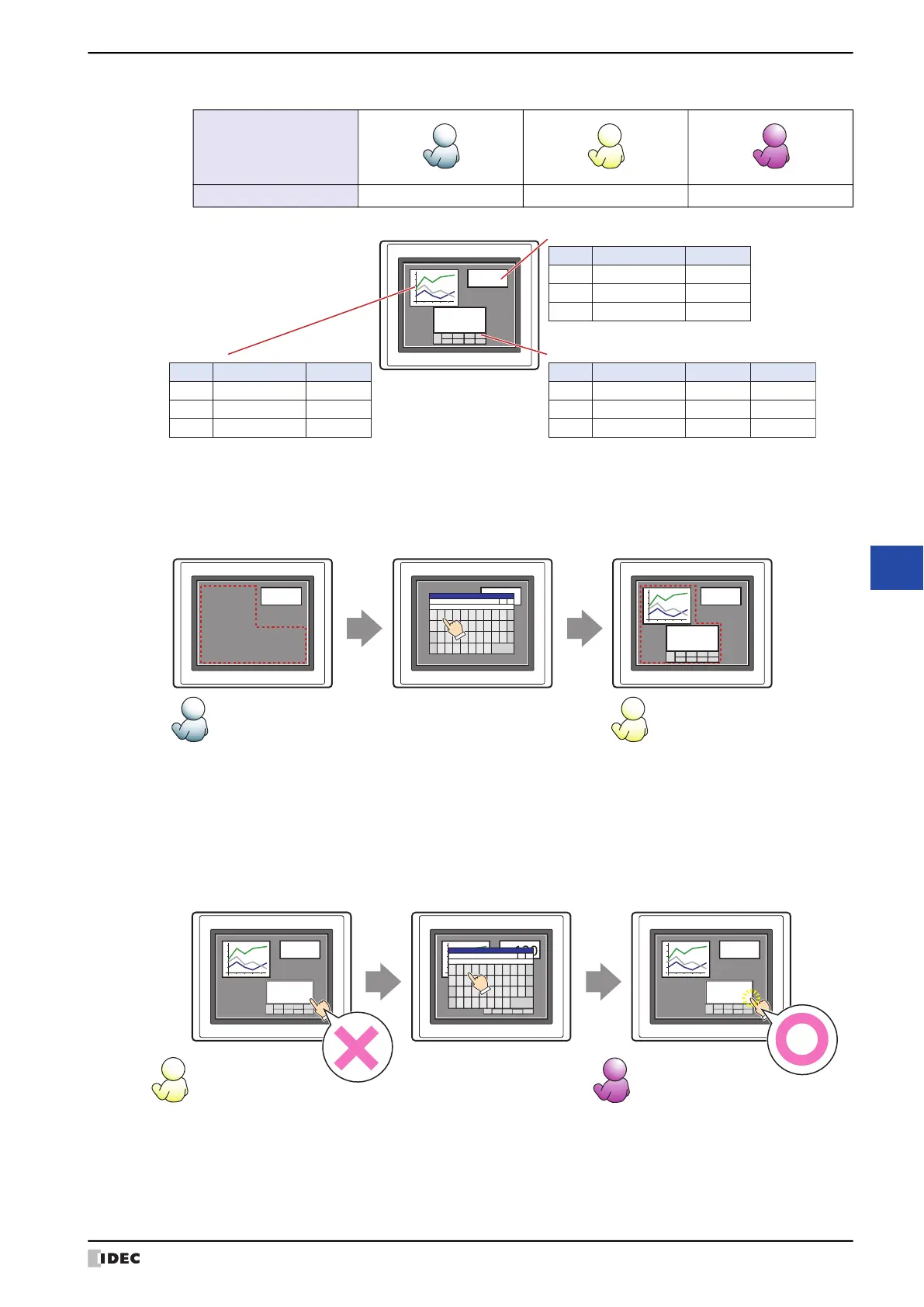

Example: If the user and security group for a part are set as follows:
For User1 in the Reader security group, the parts for which Display has been set to Prohibited for Reader will not
be displayed.
If the password screen is opened and the user switches to User2 in the Operator security group, the parts for which
Display has been set to Permitted for Operator will be displayed.
For User2 in Operator, Display has been set to Permitted for Operator, but Input is Prohibited, so the Data Log
Display cannot be used.
If the password screen is opened and the user switches to User3 in the Administrator security group, the parts for
which Display has been set to Permitted for Administrator will be displayed, and the parts for which Input has
been set to Permitted for Administrator can be used.
User Name
Security Group Reader Operator Administrator
User1
User2
User3
MICRO/I
130
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
Group Name
Administrator
Operator
Reader
1
2
3
Display番号
Data Log Display
Input
Permitted
Prohibited
Prohibited
Group Name
Administrator
Operator
Reader
1
2
3
DisplayNo.
Numerical Display
Permitted
Permitted
Permitted
Group Name
Administrator
Operator
Reader
1
2
3
DisplayNo.
Permitted
Permitted
Prohibited
Group Name
Administrator
Operator
Reader
1
2
3
DisplayNo.
Line Chart
Permitted
Permitted
Prohibited
Open Password Screen,
enter password,
and switch to User2
For User1,
parts for which Display
has been set to Prohibited
for Reader are not displayed
For User2,
parts for which Display
has been set to Permitted
for Operator are displayed
MICRO/I
130
MICRO/I MICRO/I
130
User1 User2
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
130
1
User2
▲ ▼
2 3 4 5 6 7 8 9 0 BS
q w e r t y u i o p CLR
123
ABC
a s d f g h j k l CAN
!?# z x c v b n m ENT
Password
Open Password Screen,
enter password,
and switch to User3
For User2,
parts for which Display
has been set to Permitted
for Operator are displayed,
but parts for which Input
has been set to Prohibited cannot be used
For User3,
parts for which Display
has been set to Permitted
for Administrator are displayed,
and parts for which Input
has been set to Permitted can be used
MICRO/I
130
MICRO/I MICRO/I
130130 130
User2 User3
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
Data Log
Display
Can operate
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
Samplong Data and Time Data001 Data002 Data003
2019/09/0612:00:30 20 120 201
2019/09/0612:01:30 21 121 204
2019/09/0612:02:30 22 122 206
2019/09/0612:03:30 23 123 206
2019/09/0612:04:30 24 124 210
2019/09/0612:05:30 25 125 210
2019/09/0612:06:30 26 126 218
Left
Page Left Page Down
Up
Page Up
Left
Page Left
Operate
Down
1
User3
▲ ▼
2 3 4 5 6 7 8 9 0 BS
q w e r t y u i o p CLR
123
ABC
a s d f g h j k l CAN
!?# z x c v b n m ENT
Password
Data Log
Display
Cannot operate
