WindO/I-NV4 User’s Manual 10-197
10 Numerical Display
10
Data Displays
■ When Data Over
These options configure the operation of the part when the allowable range is exceeded.
These options can only be configured when the Minimum or Maximum check boxes are selected under Range.
Flash: Select this check box to make the value flash when the displayed data exceeds the allowable range.
Report: Select this check box to write 1 in the Report Device Address when the displayed data exceeds the
allowable range.
Report Device Address: Specifies the Report Device Address.
Click to display the Tag Editor. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.

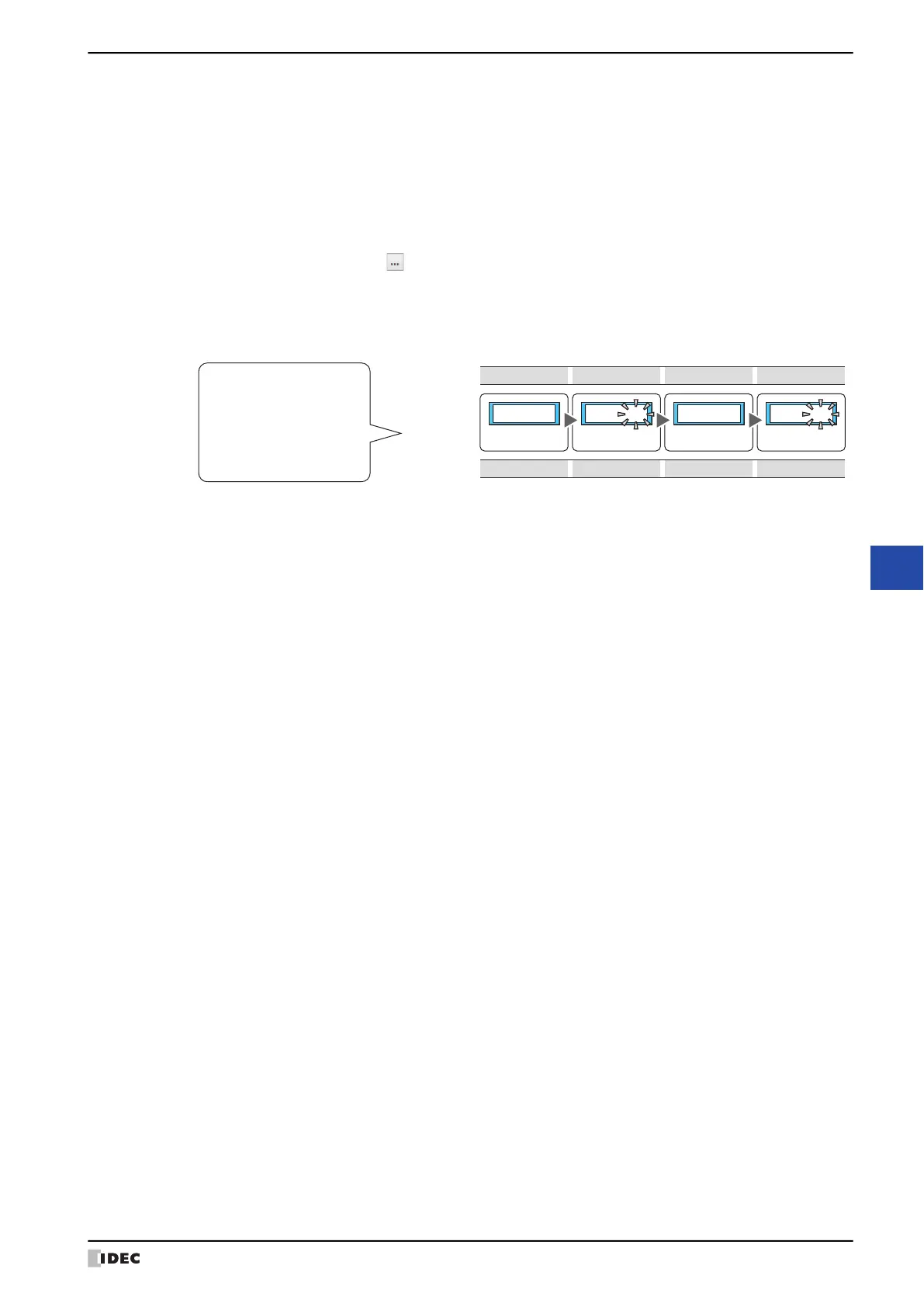

Example: If the value of word device of the reading source is “120,” which is higher than the upper limit of “100,” or
“-10,” which is below the lower limit of “0,” a value of 1 will be written to LM0 and the displayed numerical
value will flash.
50 120 90
120
-10
90
50 -10
Flashing Flashing
1
1
0
0
Range: Value
Minimum: 0
Maximum: 100
When Data Over
• Flash
• Report
Destination Device Address: LM0
Read data
Display
Data over
notification: LM0
To Next Page
