WindO/I-NV4 User’s Manual 10-199
10 Numerical Display
10
Data Displays
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-73.
■ Comment
Used for entering comments about trigger conditions. Maximum number is 80 characters.

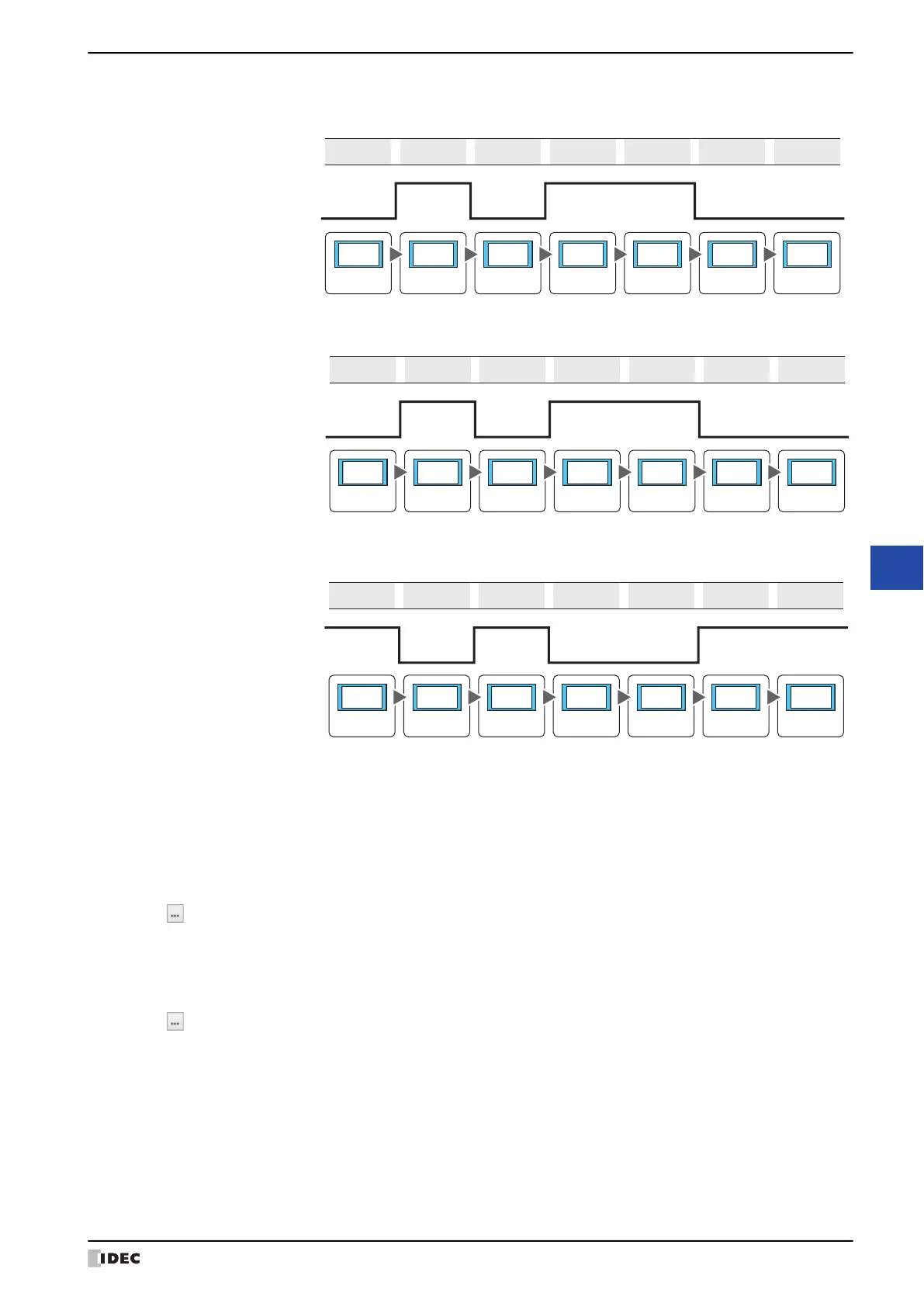

■ While not satisfying the condition
Selects the operation of the Numerical Display when the condition is not satisfied.
While ON: Enables the Numerical Display when the value of device address is 1.
Example: When While not satisfying the condition is Not update Numerical data
While OFF: Enables the Numerical Display when the value of device address is 0.
Example: When While not satisfying the condition is Not update Numerical data
While satisfying the condition: Enables the Numerical Display when the condition is satisfied.
Example: When While not satisfying the condition is Not update Numerical data
Value of
Device Address
1
0
Update Do not update Do not update Do not update Do not update
Display
Data
99 100 101
102
103
104
105
Update Update
0 100 100 102 103 103 103
Value of
Device Address
1
0
Update Do not update Do not update Do not update
Display
Data
99
100 101
102
103
104
105
Update Update
Update
99 99 101 101 101 104 105
Update Do not update Do not update Do not update
Display
Data 99
100 101
102
103
104
105
Update Update
Update
Condition
Satisfied
Not satisfied
99 99 101 101 101 104 105
Not display Numerical data: The plate and flange are displayed, but number is not displayed.
Not update Numerical data: The last updated number is displayed. The number does not change.
Not show Numerical Display: Hides the Numerical Display.
