WindO/I-NV4 User’s Manual 11-9
1 Bar Chart
11
Charts

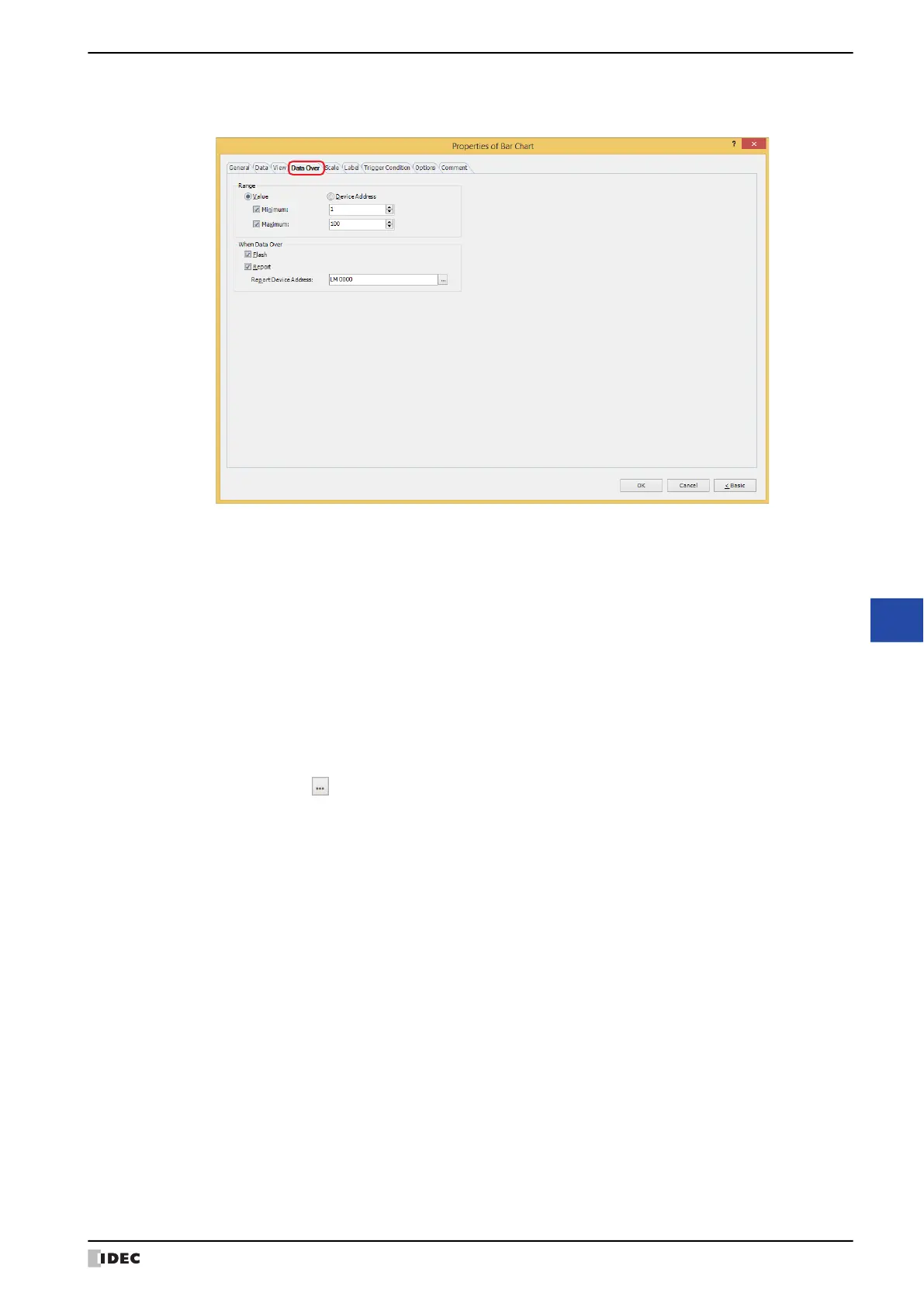

● Data Over Tab
The Data Over tab is displayed in Advanced mode.
■ Range
Select data type.
Specifies the allowable range of values to display.
Value: Specifies the minimum and/or the maximum as a constant.
Device Address: Specifies the minimum and/or the maximum as a word device value.
Minimum, Maximum: Select these check boxes to specify the minimum and/or maximum.
The minimum and maximum that can be specified when Value is selected vary based on the
data type selected with Data Format on the General tab. For details on data types, refer to
Chapter 2 “1.1 Available Data” on page 2-1.
When Device Address is selected, these options specify the source word devices.
Click to display the Tag Editor. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-70.
