3 Pie Chart
11-58 WindO/I-NV4 User’s Manual

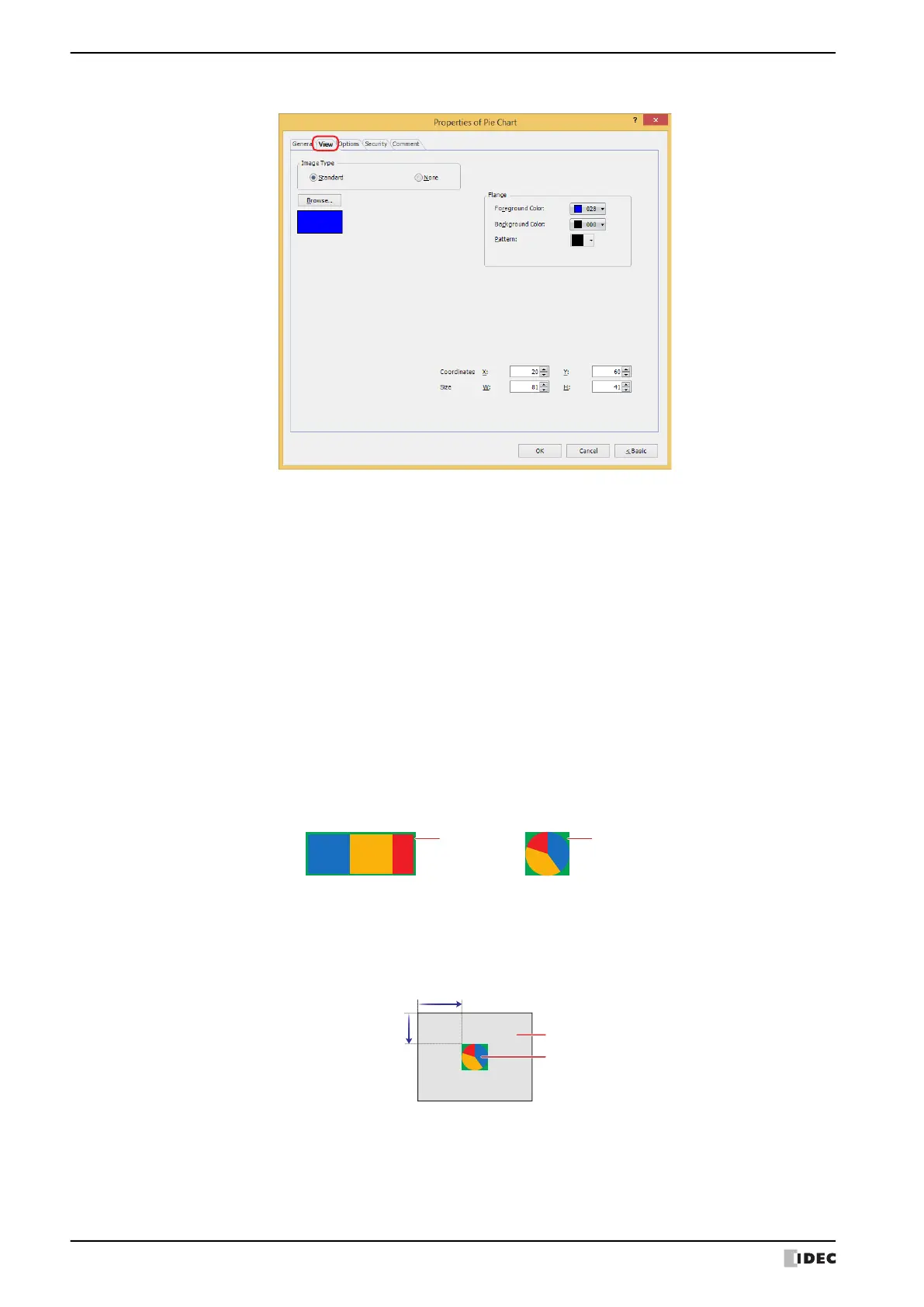

● View Tab
■ Image Type
Select the type of graphic to be used to represent the part.
■ Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
■ Flange
■ Coordinates
Standard: Uses the default graphic for WindO/I-NV4.
None: The plate and the flange of the part are not displayed.
Foreground Color, Background Color: Selects the foreground and background colors of the flange of the standard
graphic (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange of the standard graphic.
Click Pattern to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange Flange
X, Y: Sets the display position of parts using coordinates.
The X and Y coordinates of parts are defined relative to an origin at the top-left corner of the screen.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Parts
