(M) Monitor display and monitor output signal
374
PARAMETERS
NOTE
• Terminal JOG input specifications (pulse train input or contact input) can be selected with Pr.291. When changing the setting
value, be careful not to change the terminal JOG input specifications. (Refer to page 324 for pulse train input.)
• Connect a meter between the terminals FM and SD after changing the Pr.291 setting value. When using the pulse train of FM
output (voltage output), be careful that voltage is not added to terminal FM.
• A connection cannot be made to the pulse input of a source logic type.
• If all parameter clear is performed when selecting the high-speed pulse
train output (Pr.291 = "10, 11, 20, 21, 100"), the terminal FM output can
be changed from high-speed pulse train output to FM output (voltage
output), since the Pr.291 setting value returns to the initial value of "0".
Perform all parameter clear after removing the device connected to the
terminal FM.

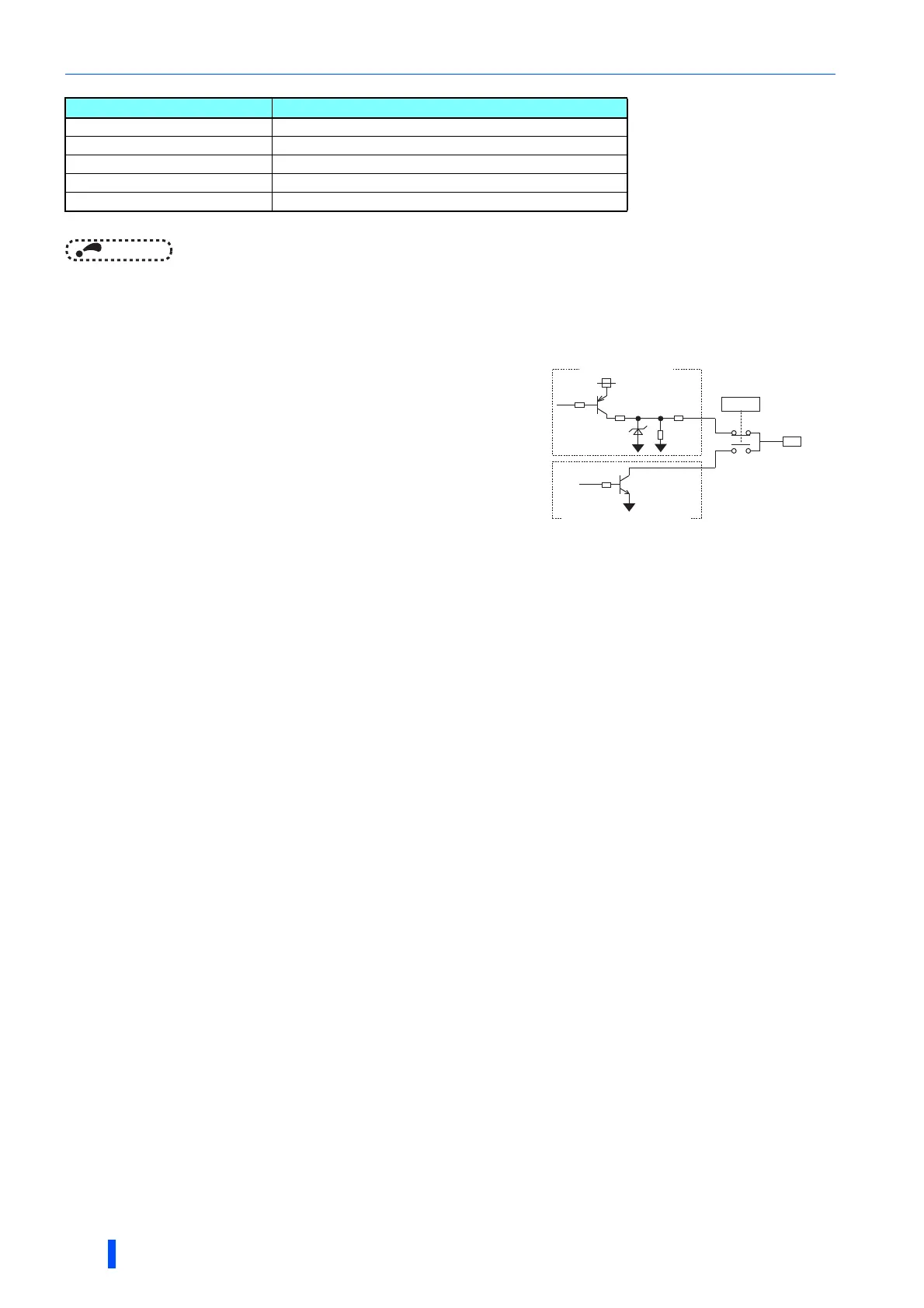

Item High-speed pulse train output specifications
Output method NPN open collector output
Voltage between collector-emitter 30 V (max.)
Maximum permissible load current 80 mA
Output pulse rate 0 to 55 kpps
Output resolution 3 pps (excluding jitter)
50 kpps when the monitor output value is 100%.
3.3kΩ
Terminal FM
0, 1
10, 11,
20, 21, 100
Pr.291
8.2V
FM output circuit
Open collector output circuit
