Water Management functionality 18 Operations

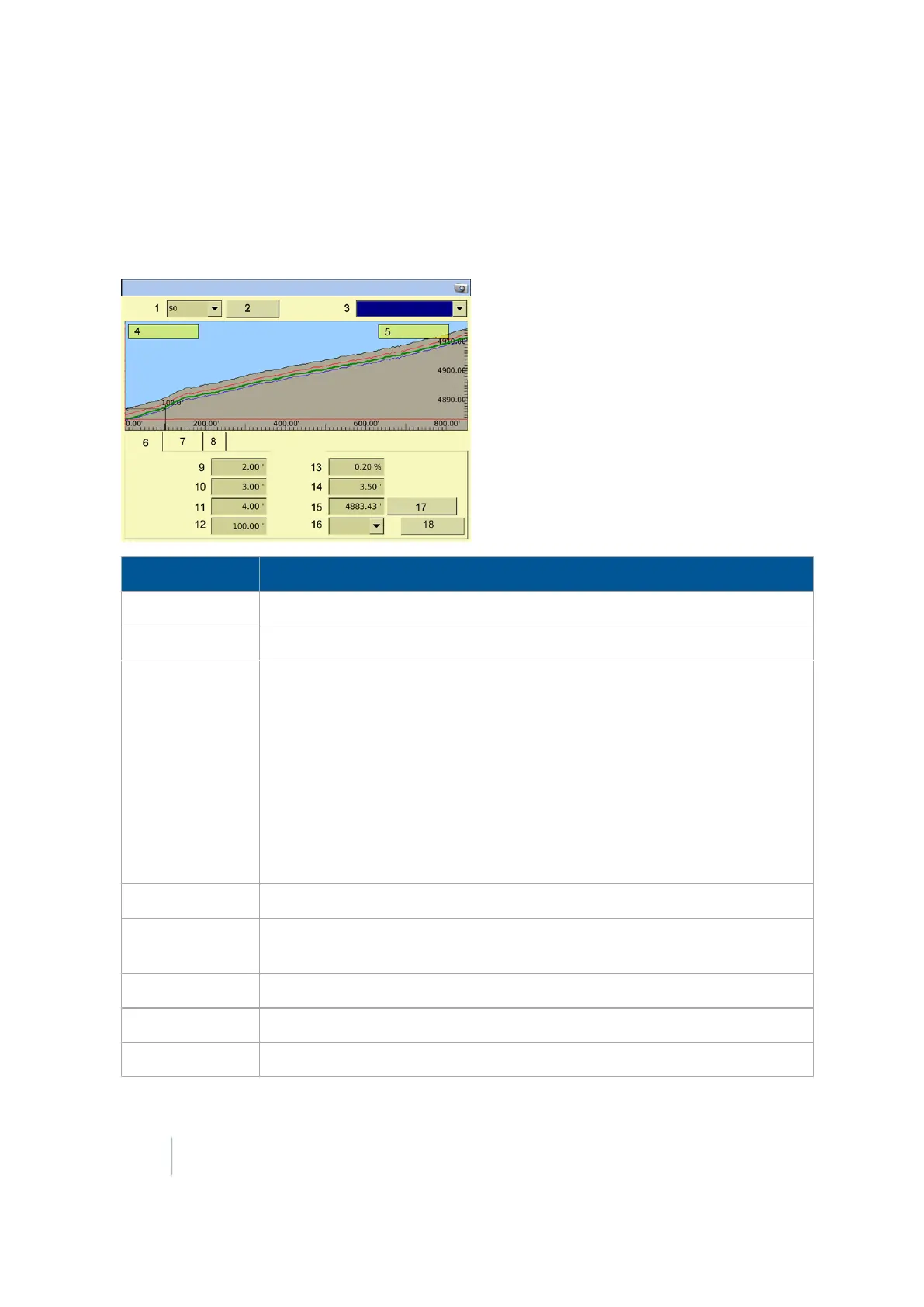

Design screen
At the Design screen, you determine the design of the section line you have chosen.
Settings Tab
Item Explanation
1
Section
: The section you are currently designing.
2
Rename
button:Tap to rename the section.
3
Direction
list:
The design screen shows the outlet at the left side of the screen and runs the
design uphill to the right side of the screen. The direction of the profile is
defined by the direction that it was surveyed. If your survey profile is
displayed the other way, switch the option shown in the Direction list to the
other option in the list.
Options are:
l Outlet at Survey Start
l Outlet at Survey End
4
Outlet
information: Elevation of outlet depth.
5
Boot Slope
information: The current reading for the boot slope from the IMD-
600.
6
Settings tab
7
Edit Line tab
8
Info tab
456 FM-1000 Integrated Display User Guide Version 9.25, Revision B
