Status Indicator RAPs
Prelaunch Training/Review
10-105 Face Up Exit Sensor On
The Face Up Exit Sensor did not energize.
Initial Actions
ï Check condition and specification of the paper supply.
ï Check for obstructions in the paper feed path.
ï Clean the Exit Roll and check for wear.
ï Check the drive transmissions for damage or wear.
Procedure
Enter dC330 [010-103] and press Start. Block and unblock the Face Up Exit Sensor (PL 11.2).
The display changes state.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [010-101] and press Start. Actuate and de-actuate the Fuser Exit Switch (PL
2.8). The display changes state.
YN
Go to OF 99-3 Switch RAP.
Enter dC330 [008-046] and press Start. The Duplex Gate Solenoid energizes (PL 11.2).
YN
Go to the OF 99-4 Solenoid/Clutch RAP.
Enter dC330 [008-045] and press Start. The Exit Gate Solenoid energizes (PL 11.2).
YN
Go to OF 99-4 Solenoid/Clutch RAP.
Check the wires and connectors. If the check is OK, replace the MCU PWB (PL 13.1).

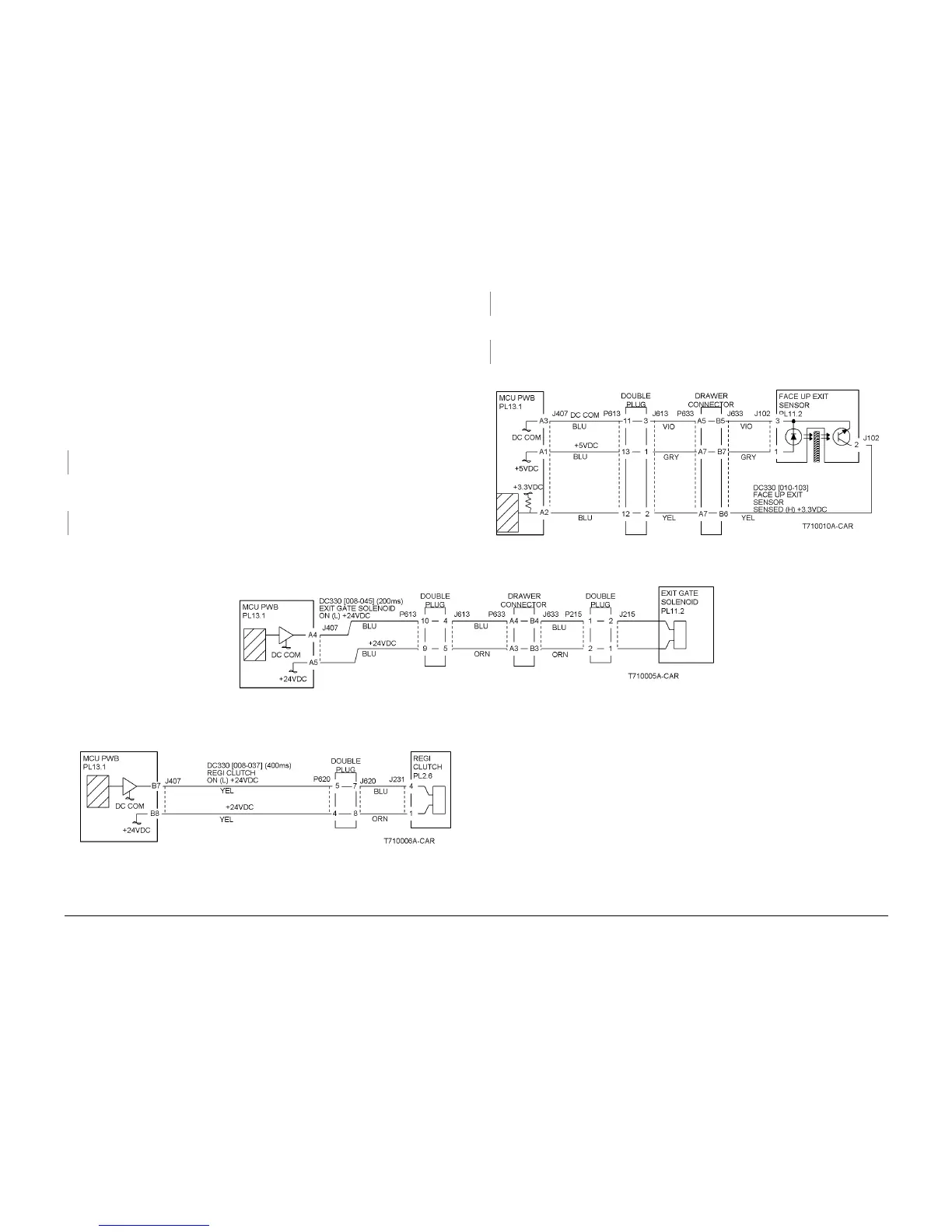

Figure 1 The Face Up Exit Sensor CD
Figure 2 The Exit Gate Solenoid CD
Figure 3 The Registration Clutch CD
