DC1632/2240
PL 20.2
Parts List
Prelaunch Training/Review

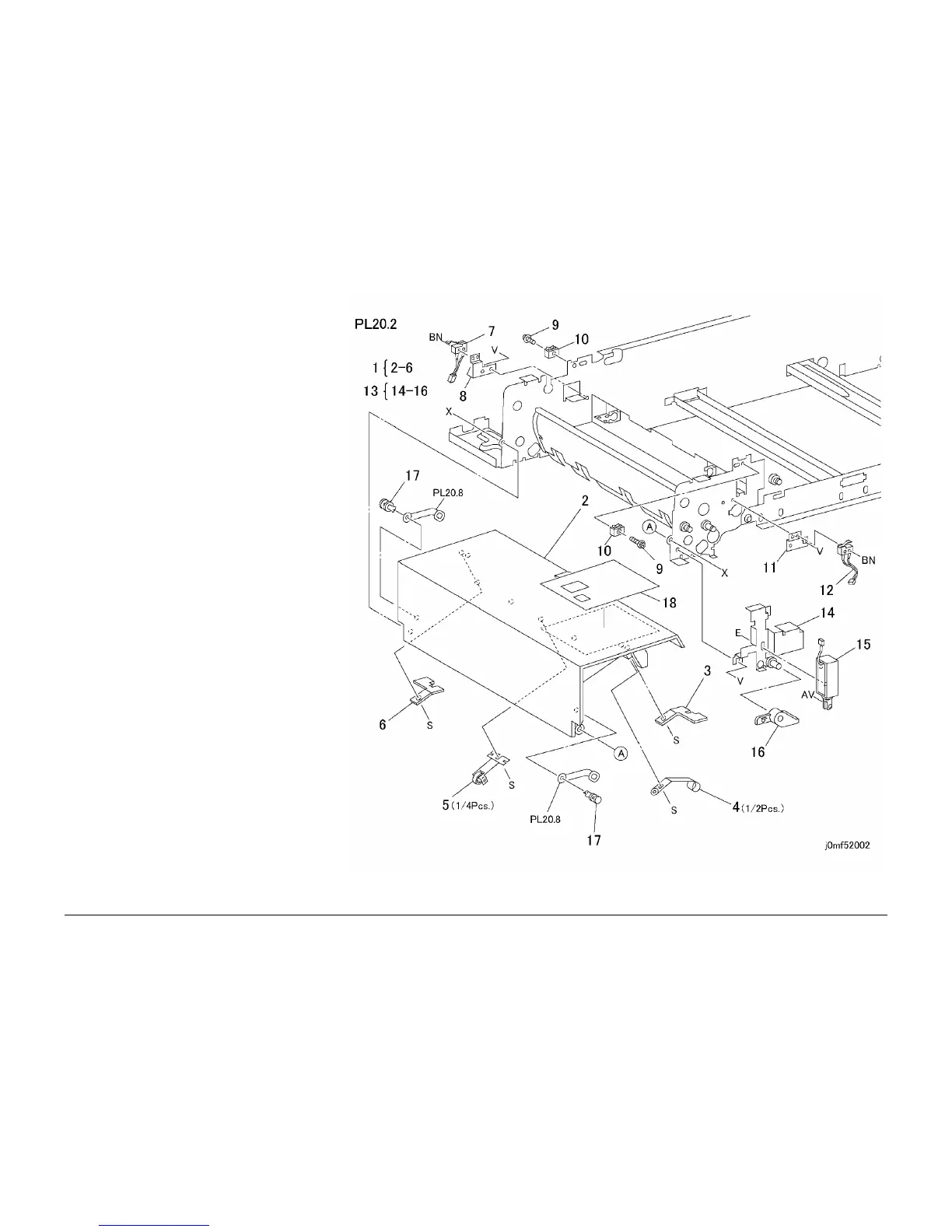

PL 20.2 Top Cover, Registration Gate
Solenoid
Item Part Description
1 054K13621 Top Cover Assembly
2 – Top Cover (P/O PL 20.2 Item 1)
3 015E48890 Front Magnet Plate
4 809E11130 Spring
5 059K11880 Pinch Roll
6 015E48900 Front Magnet Plate
7 110K07850 Top Cover Interlock Switch (Rear)
8 – Bracket (Not Spared)
9 – Screw (Not Spared)
10 121K93870 Magnet
11 – Bracket (Not Spared)
12 110K07870 Top Cover Interlock Switch (Front)
13 121K22710 Registration Gate Solenoid
Assembly (REP 5.2)
14 – Bracket (P/O PL 20.2 Item 13)
15 – Registration Gate Solenoid (P/O PL
20.2 Item 13)
16 – Registration Arm (P/O PL 20.2 Item
13)
17 019E93510 Push Rivet
18 – Label (Not Spared)
To Next Page
