Xerox DocuColor 1632 Service Manual

6/02
5-8
DC1632/2240
PL 1.2
Prelaunch Training/Review
Parts List

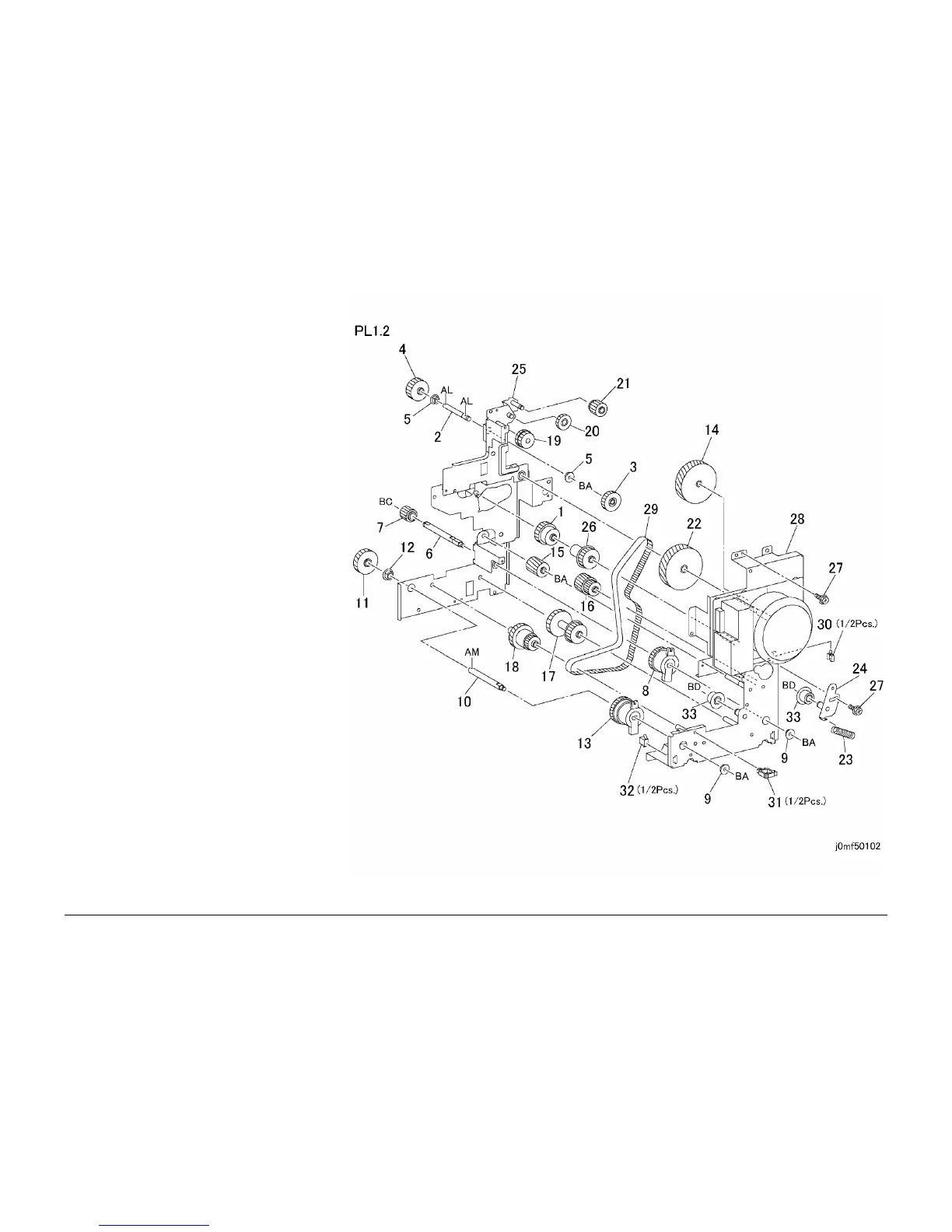

PL 1.2 Main Drive Motor Assembly
Item Part Description
1 – Friction Clutch (Not Spared)
2 – Shaft (Not Spared)
3 – Gear (32T) (Not Spared)
4 – Gear (28T) (Not Spared)
5 – Bearing (Not Spared)
6 – Shaft (Not Spared)
7 – Gear (20T) (Not Spared)
8 121K22470 Takeaway Clutch
9 – Bearing (Not Spared)
10 – Shaft (Not Spared)
11 – Gear (39T) (Not Spared)
12 – Bearing (Not Spared)
13 121K23270 Developer K Clutch
14 – Gear (69/27T) (Not Spared)
15 – Gear (23T) (Not Spared)
16 – Gear (28/22T) (Not Spared)
17 – Gear (45/30T) (Not Spared)
18 – Gear (41/21T) (Not Spared)
19 – Gear (24/20T) (Not Spared)
20 – Gear (19T) (Not Spared)
21 – Gear (18T) (Not Spared)
22 – Gear (73/23T) (Not Spared)
23 – Spring (Not Spared)
24 – Tension Bracket (Not Spared)
25 – Bracket (Not Spared)
26 – Pulley (Not Spared)
27 – Screw (Not Spared)
28 – Main Motor (Not Spared)
29 – Belt (Not Spared)
30 – Clamp (Not Spared)
31 – Clamp (Not Spared)
32 – Connector (Not Spared)
33 – Pulley (Not Spared)
