6/02
5-28
DC1632/2240
PL 5.1
Prelaunch Training/Review
Parts List

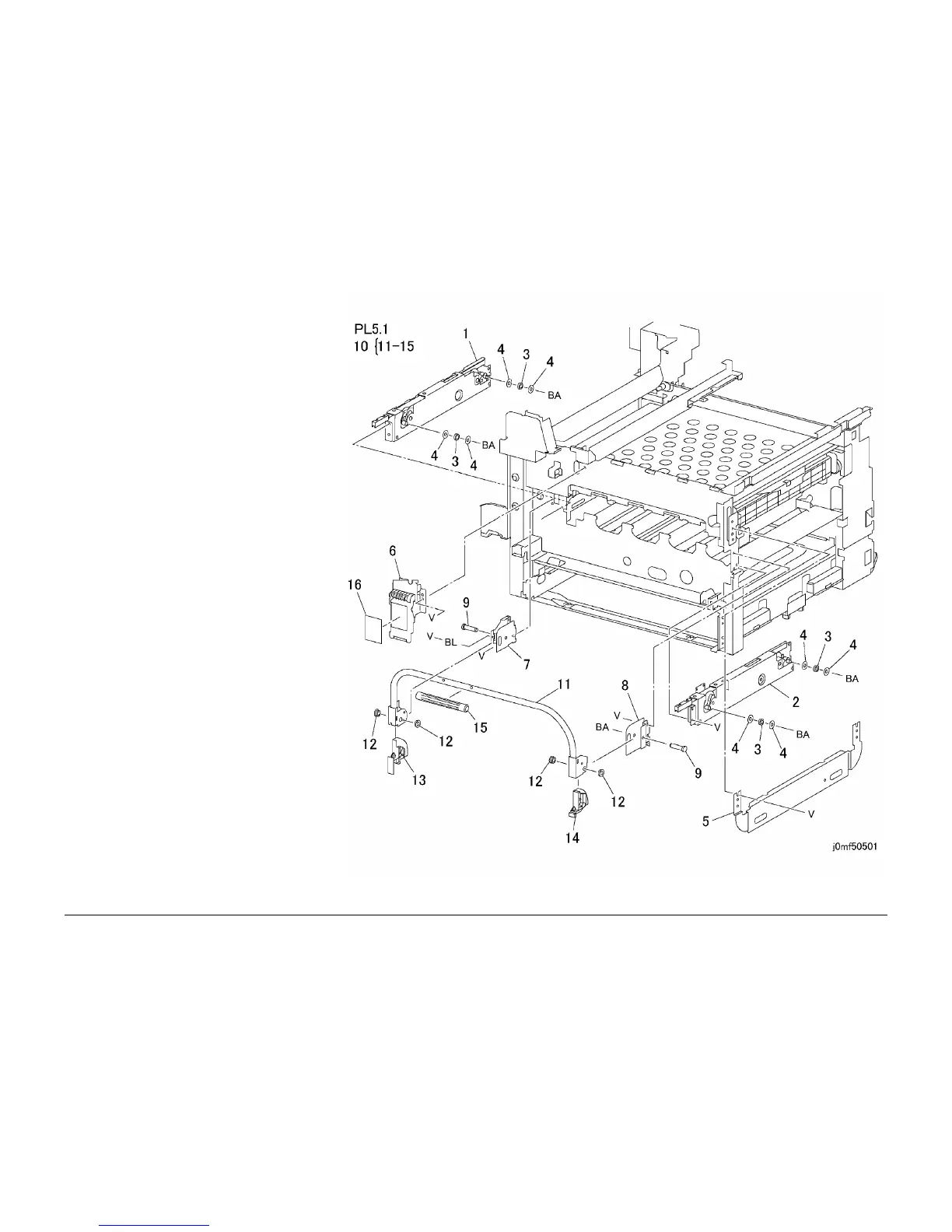

PL 5.1 Lift Unit
Item Part Description
1 001K70542 Left Lift Assembly (REP 9.21)
2 001K70551 Right Lift Assembly (REP 9.20)
3 – Bearing (Not Spared)
4 – Washer (Not Spared)
5 – Plate (Not Spared)
6 003K12680 Latch Assembly
7 003E52290 Left Hinge (REP 9.19)
8 003E52300 Right Hinge (REP 9.19)
9 006E71740 Shaft
10 011K94970 Lever Assembly
11 – Lever (P/O PL 5.1 Item 10) (REP
9.18)
12 – Bearing (P/O PL 5.1 Item 10)
13 – Left Cap (P/O PL 5.1 Item 10)
14 – Right Cap (P/O PL 5.1 Item 10)
15 – Grip (P/O PL 5.1 Item 10)
16 – Label (Not Spared)
To Next Page
