Status Indicator RAPs
Prelaunch Training/Review
5-116 Exit Sensor Off
The document does not deactuate the DADF Exit Sensor after the DADF Exit Sensor actuated.
Procedure
Check the following in dC330:
ï [5-115] DADF Exit Sensor
ï [5-081] DADF Exit Motor (Check Fuse F2 on DADF PWB)
The components are good.
YN
Go to the appropriate circuit and check the component
Check the following:
ï The Exit Roll for contamination, wear and a rotation failure
ï The Exit Upper/lower Chute for deformation
ï The Eliminator for deformation
ï The Exit Roll Drive Belt for disengagement and damage
ï The DADF Control PWB for failure (PL 20.3).

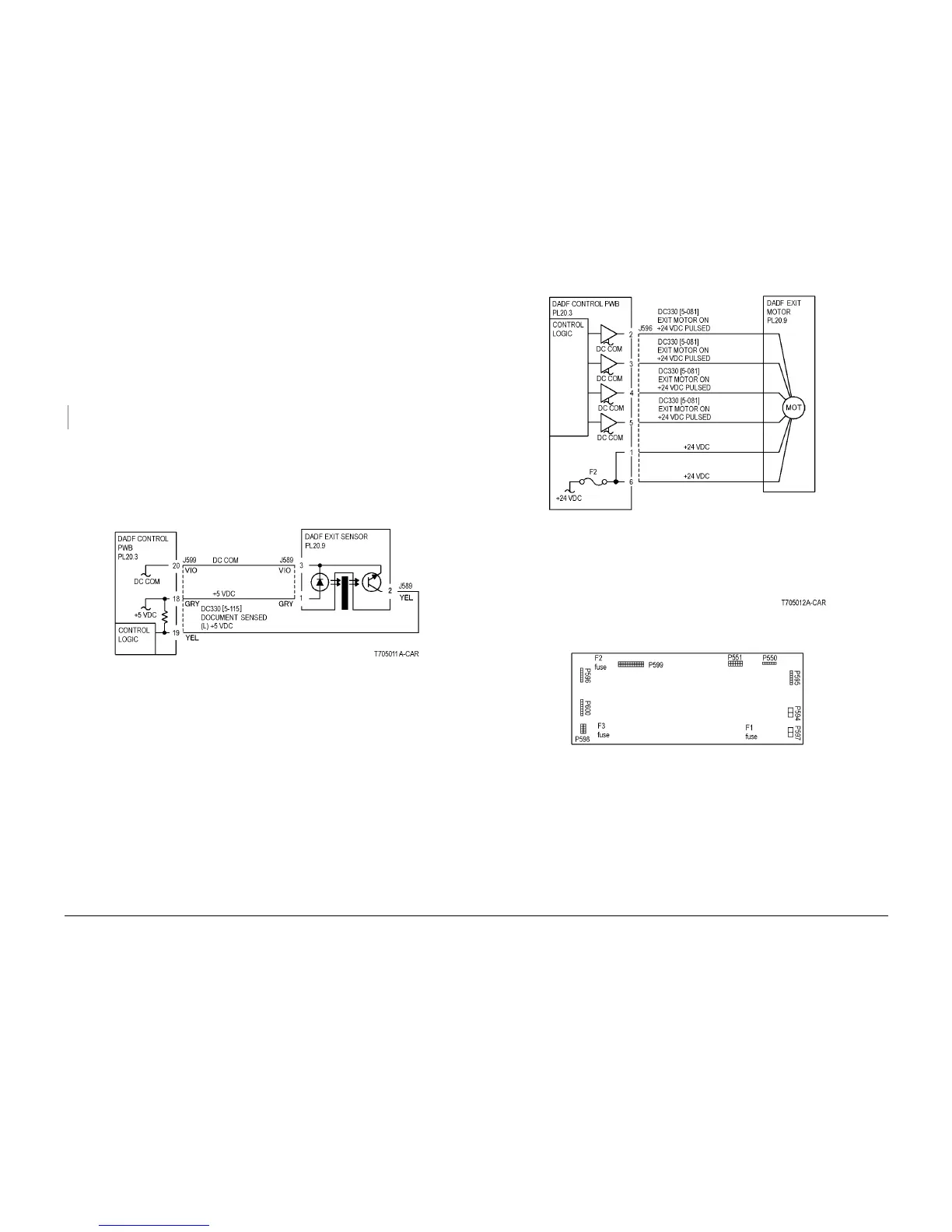

Figure 1 DADF Exit Sensor CD
Figure 2 Exit Motor CD
Figure 3 DADF Control PWB
