5-115 Exit Sensor On
The DADF Exit Sensor does not detect a document after the DADF Exit Motor energized at
document replacement/output.
Procedure
Check the following in dC330:
ï [5-115] DADF Exit Sensor
ï [5-081] DADF Exit Motor
The components are good.
YN
Go to the appropriate circuit and check the component.
Check the following:
ï The Platen Belt for contamination, wear, tear and a rotation failure
ï The NO. 1~4 Belt Pinch RolLs for a rotation failure.
ï The Platen Belt for an improper tension.
ï The Platen Glass for contamination, a foreign substance and a high friction coefficient
ï Document Transport Height (ADJ 5.4).
ï The DADF Exit Sensor for an improper installation.
ï The DADF Control PWB for a failure (PL 20.3).
ï The Exit Lower Chute for correct installation.

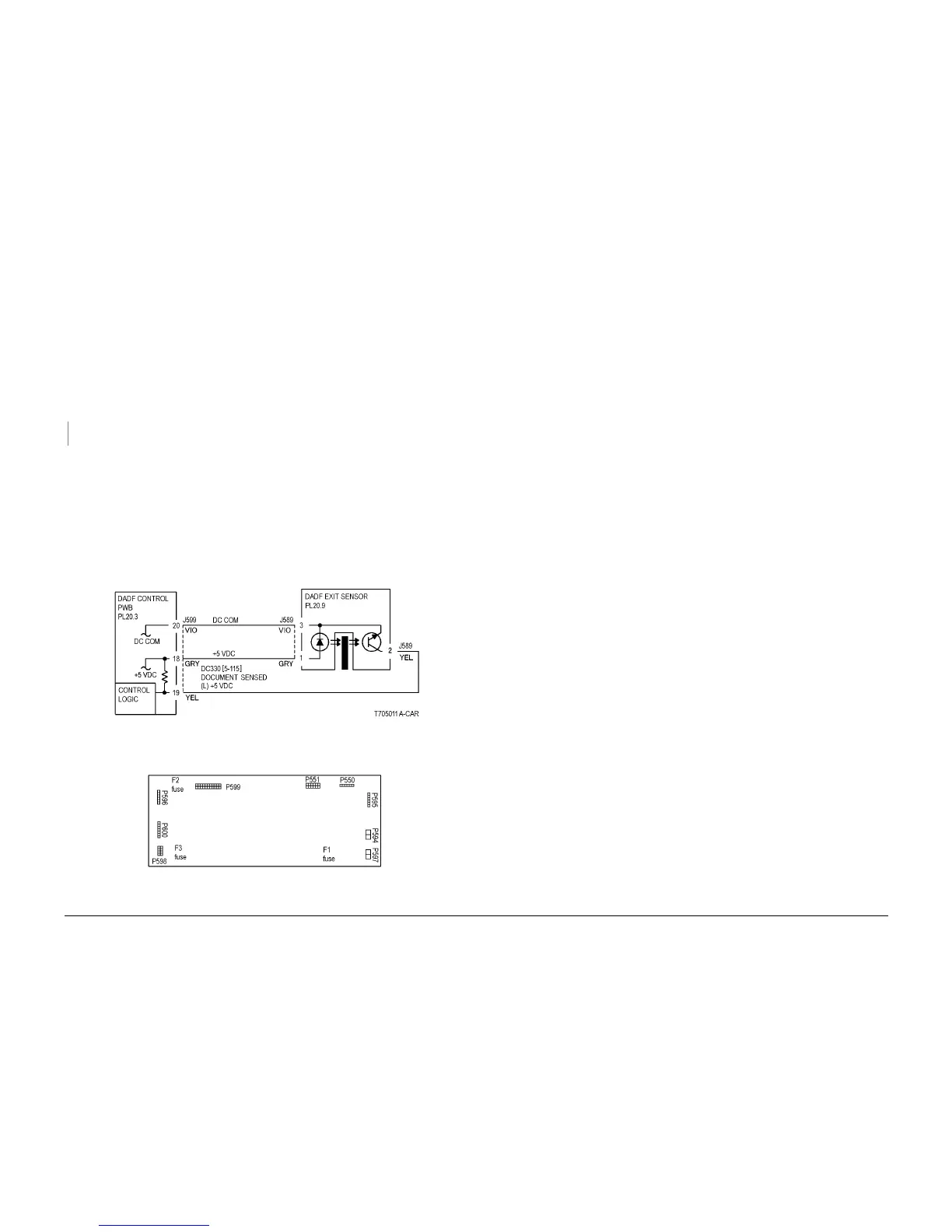

Figure 1 DADF Exit Sensor CD
Figure 2 DADF Control PWB
