Xerox DocuColor 1632 Service Manual

6/02
4-99
DC1632/2240
REP 12.1
Repairs and Adjustments
Prelaunch Training/Review
REP 12.1 H Transport Assembly
Parts List on PL 17.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.

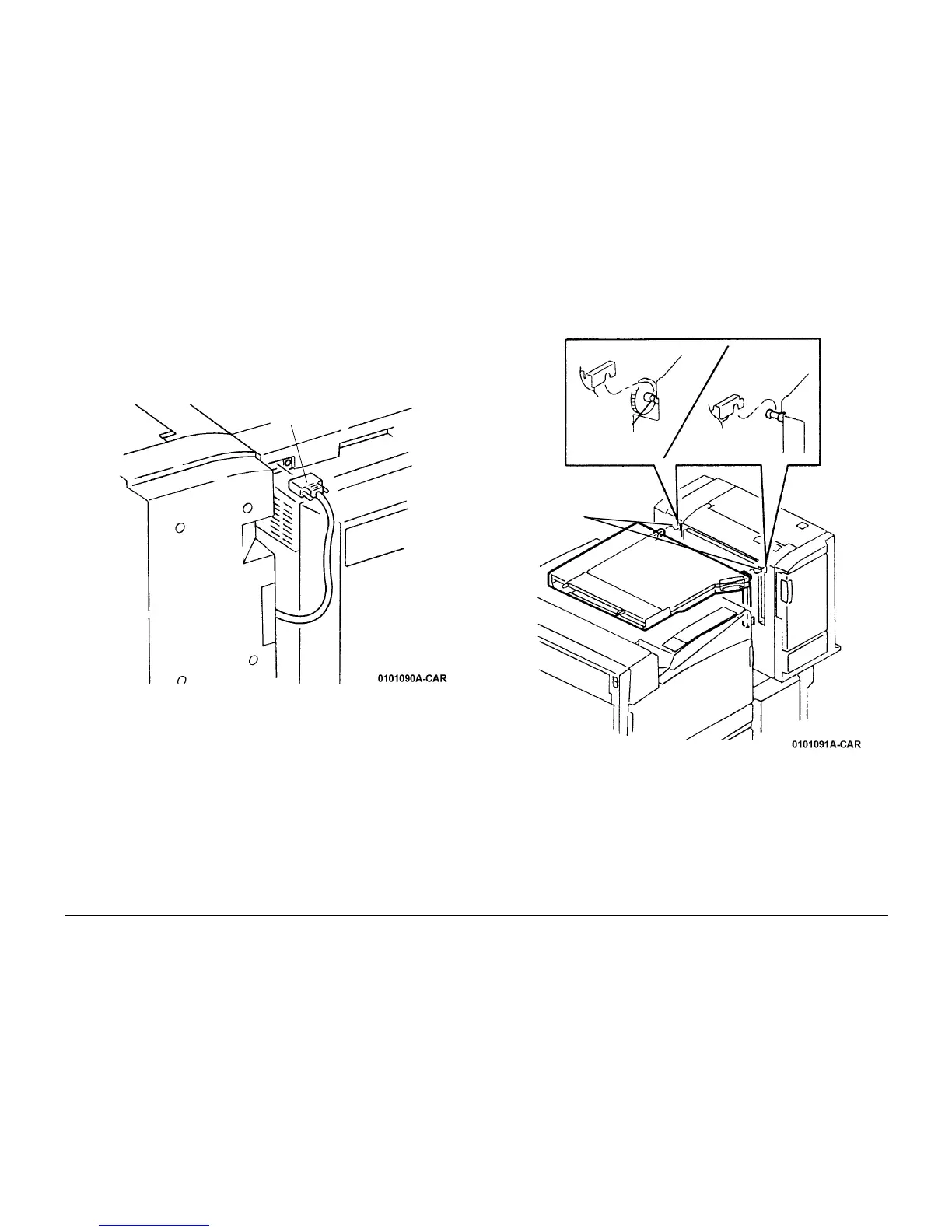

1. Disconnect P/J (Figure 1).
Figure 1 Disconnecting P/J
2. Disengage Hook (2) from the Stud on both sides and remove H Transport Assembly (Fig-
ure 2).
Figure 2 Removing H Transport
P/J
Hooks
