6/02
5-19
DC1632/2240
PL 2.10
Parts List
Prelaunch Training/Review

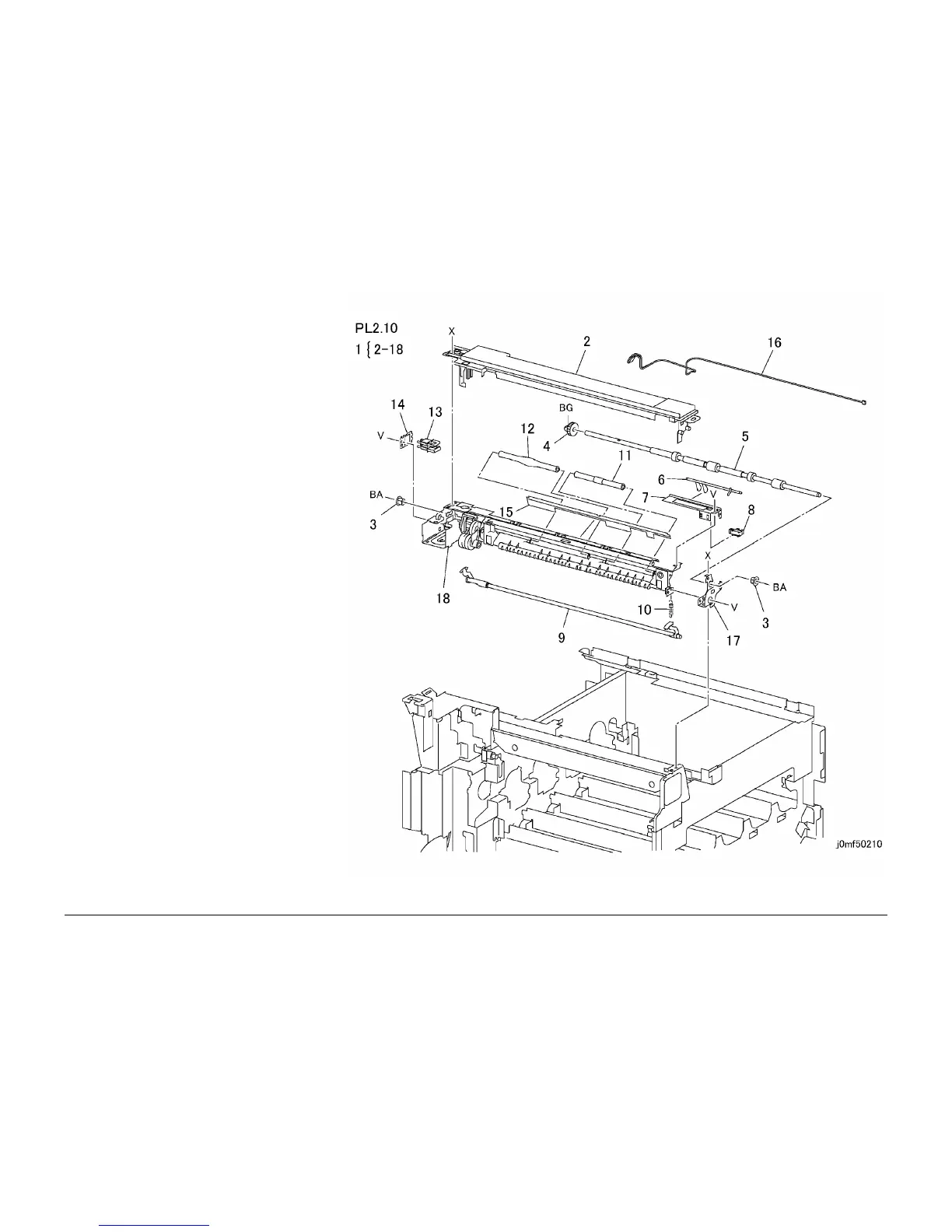

PL 2.10 Exit Transport Assembly
Item Part Description
1 – Exit Transport (Not Spared)
2 – Exit Transport Cover (Not Spared)
3 – Bearing (Not Spared)
4 – Gear (20T) (Not Spared)
5 – Exit Roll (Not Spared)
6 – Actuator (Not Spared)
7 – Bracket (Not Spared)
8 130E82190 Full Paper Stack Sensor
9 – Latch (Not Spared)
10 – Spring (Not Spared)
11 – Pinch Roll (Not Spared)
12 – Pinch Roll (Not Spared)
13 – LH Cover Interlock Switch (Not
Spared)
14 – Bracket (Not Spared)
15 – Static Eliminator (Not Spared)
16 – Wire Harness (Not Spared)
17 – Front Bracket (Not Spared)
18 – Frame (Not Spared)
To Next Page
