6/02
4-70
DC1632/2240
REP 9.3, REP 9.4
Prelaunch Training/Review
Repairs and Adjustments
REP 9.3 Waste Toner Cartridge Cover
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Cartridge Cover (Figure 1).
a. Open Waste Cartridge Cover.
b. Remove Screw.
c. Remove Waste Toner Cartridge Cover.
Figure 1 Removing Waste Toner Cartridge Cover
REP 9.4 Waste Toner Cartridge
Parts List on PL 4.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Waste Cartridge (Figure 1).
a. Open Waste Cartridge Cover.
b. Release Lever and move half way down.
c. Pull out to remove Waste Cartridge.

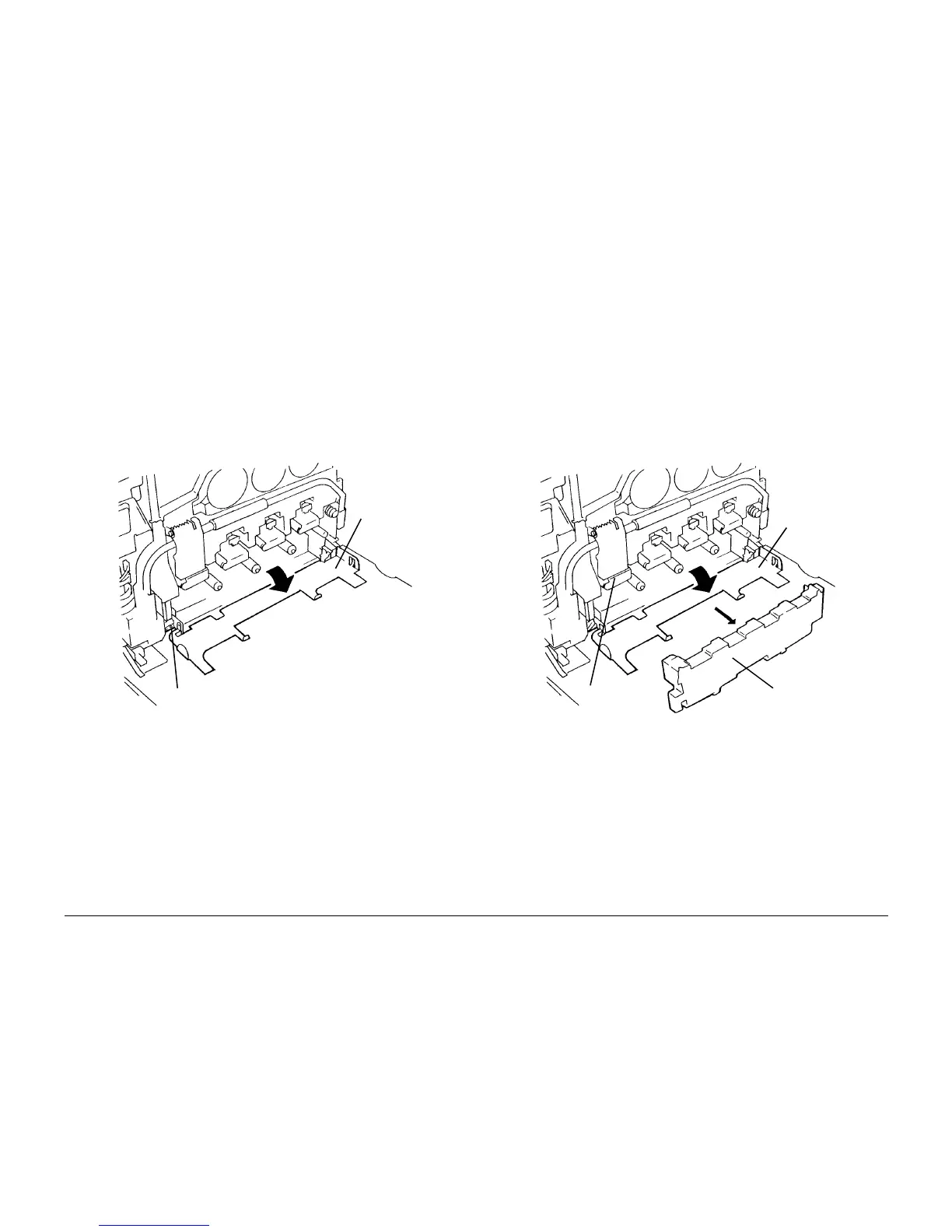

Figure 1 Removing Waste Cartridge
Waste
Cartridge
Cover
Screw
Waste
Cartridge
Waste
Cartridge
Cover
Lever
