PL 18.6
Prelaunch Training/Review
Parts List

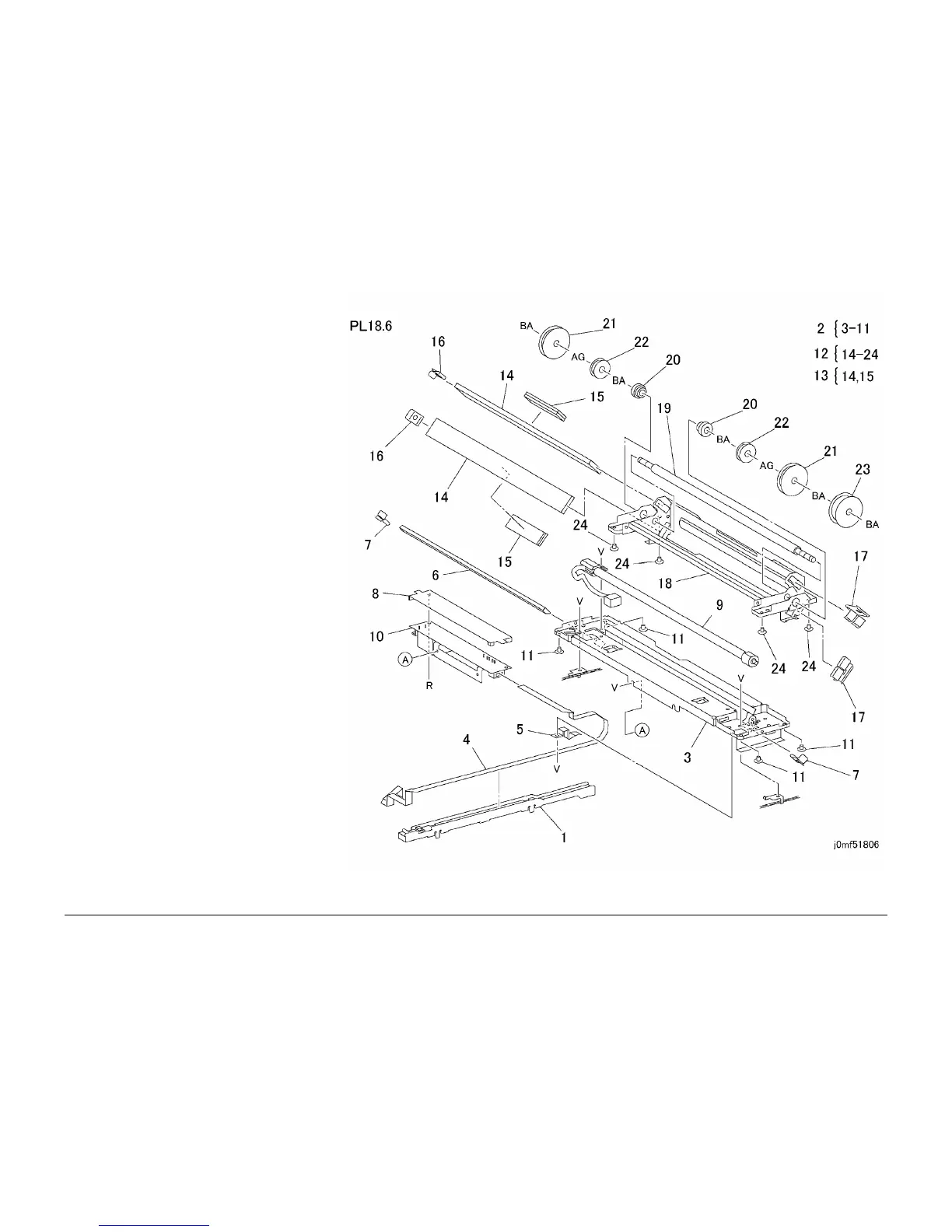

PL 18.6 Full/Half Rate Carriage
Item Part Description
1 – Harness Guard (Not Spared)
2 041K94050 Full-Rate Carriage Assembly (ADJ
6.1)
3 – Full-Rate Carriage (P/O PL 18.6
Item 2)
4 117E19780 Lamp Wire Harness (REP 6.14)
5 – No 1 Motor (P/O PL 18.6 Item 2)
6 062E10040 No 1 Mirror
7 019E50400 Clip
8 118E12090 Insulator
9 122E92030 Exposure Lamp (REP 6.13)
10 105E10510 Lamp Ballast PWB
11 – Pad (P/O PL 18.6 Item 2)
12 041K94271 Half-Rate Carriage Assembly (ADJ
6.1)
13 062K10730 No 2 and No 3 Mirror
14 – No 2, No 3 Mirror (P/O PL 18.6 Item
2,PL 18.6 Item 13)
15 – Damper (P/O PL 18.6 Item 2,PL
18.6 Item 13)
16 – Single Clip (P/O PL 18.6 Item 12)
17 809E09110 Clip
18 – Half-Rate Carriage (P/O PL 18.6
Item 12)
19 – Shaft (P/O PL 18.6 Item 12)
20 004E06560 Damper Bearing
21 – Pulley (P/O PL 18.6 Item 12)
22 020K94970 Pulley
23 – Harness Pulley (P/O PL 18.6 Item
12)
24 019E49470 Pad
To Next Page
