Xerox DocuColor 1632 Service Manual

6/02
5-83
DC1632/2240
PL 18.5
Parts List
Prelaunch Training/Review

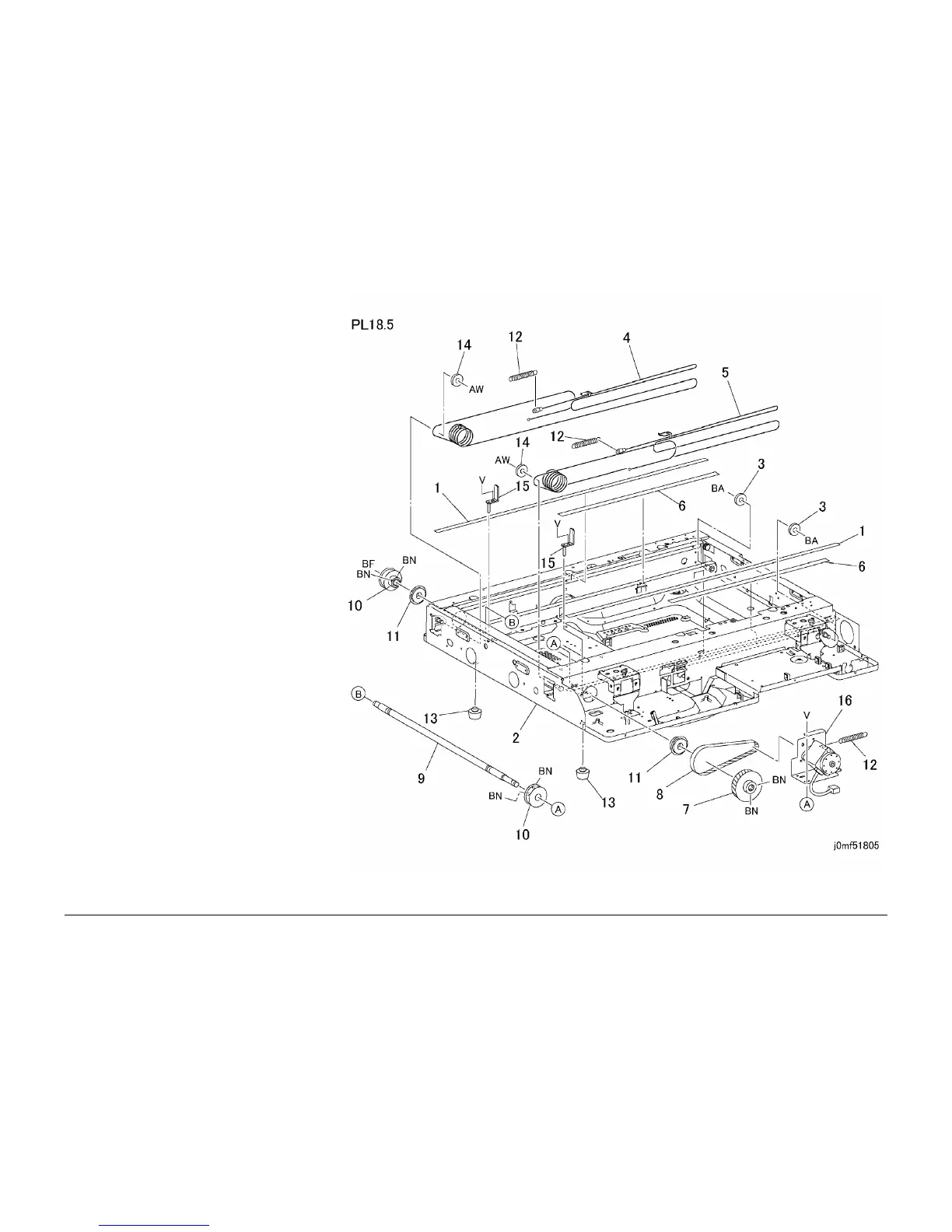

PL 18.5 Carriage Cable/ Motor
Item Part Description
1 063E94040 Tape
2 – Frame (Not Spared)
3 020E99590 Pulley
4 012K94110 Front Carriage Cable (REP 6.11)
5 012K94120 Rear Carriage Cable (REP 6.11)
6 063E94050 Tape
7 020E32740 Timing Pulley
8 023E19300 Belt
9 – Capstan Shaft (Not Spared)
10 020E25090 Capstan Pulley
11 413W10950 Bearing
12 009E62830 Spring
13 017E92060 Foot
14 – Pulley (Not Spared)
15 – Stop Bracket (Not Spared)
16 127K32140 Carriage Motor (REP 6.12)
