6/02
2-151
DC1632/2240
9-411
Status Indicator RAPs
Prelaunch Training/Review
9-411 Toner Cartridge (M) Near Empty
The Yellow Toner Cartridge is nearly empty.
NOTE: Continuous running of high density prints can temporarily deplete the toner supply.
Initial Actions
ï Ensure that there is toner and the toner is evenly distributed in the cartridge (M).
ï Check the ATC Sensor (M) for blockage or contaminants.
ï Check the drive system from the Developer Drive Motor to the Developer Housing (M) for
damage.
Procedure
Enter dC330 [009-002]. The Toner Dispense Motor (M) energizes (PL 6.1).
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [009-014]. The Developer Motor energizes (PL 1.1).
YN
Go to OF 99-6 Motor Open RAP.
Perform ADJ 9.3. The ATC Sensor (M) fail judgement is OK.
YN
Go the 9-382 ATC Sensor Failure (M) RAP.
After checking that no failures are detected during normal operation, go to call closeout.

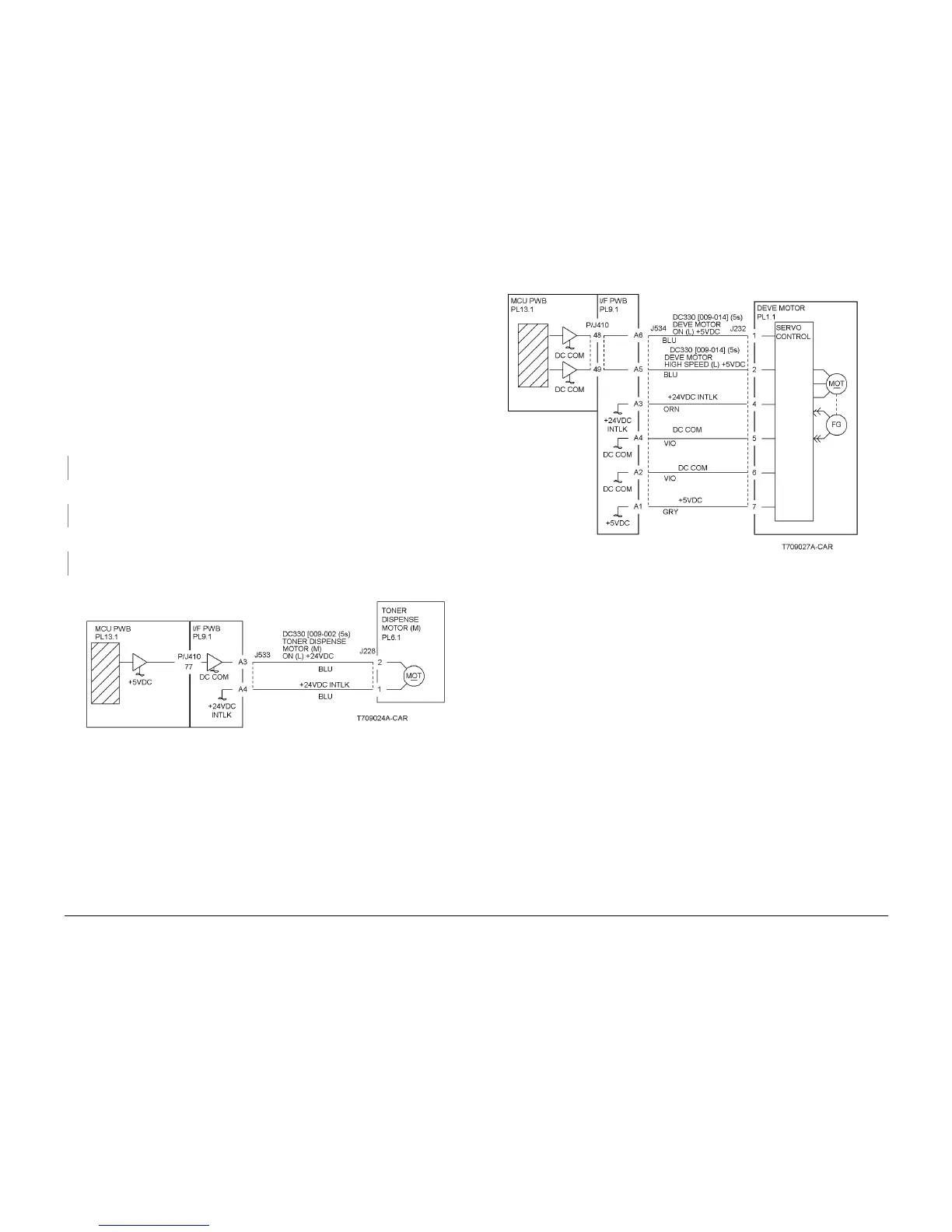

Figure 1 Toner Dispense Motor M
Figure 2 The Developer Motor
To Next Page
