Xerox DocuColor 1632 Service Manual

6/02
2-163
DC1632/2240
9-912, 9-913
Status Indicator RAPs
Prelaunch Training/Review
9-912 Drum (C) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed.
Procedure
Enter dC330 [009-153 (Drum (C) Data]. The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Cyan Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1)

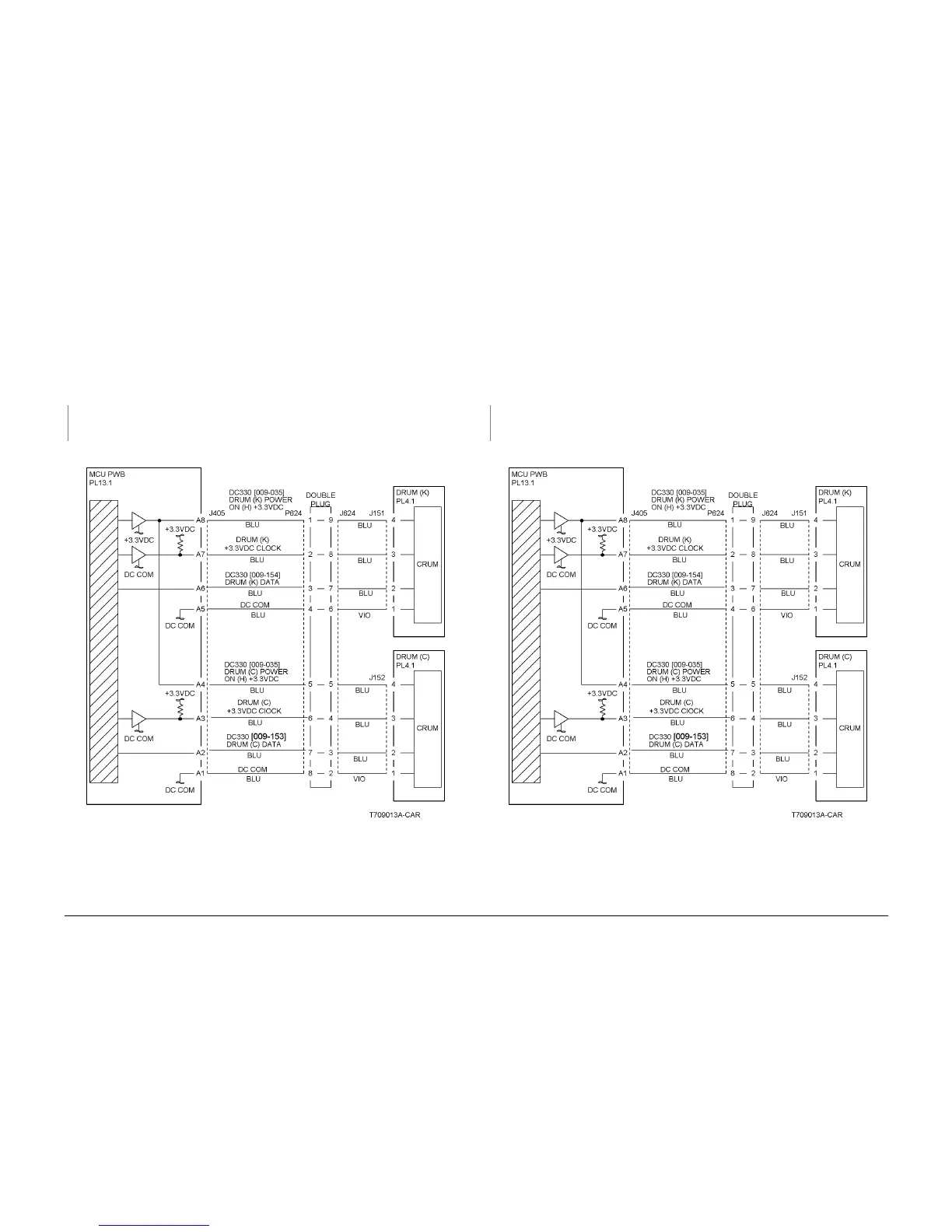

Figure 1 Drum C Communication
9-913 Drum (K) Type Mismatch
Drum Type Mismatch
Initial Actions
Ensure that the correct drum type is installed.
Procedure
Enter dC330 [009-154 (Drum (K) Data. The display is H.
YN
Check the wires and connectors. If the check is OK, replace the Black Drum Cartridge
(refer to Section 6, Machine Consumables).
Replace the MCU PWB. (PL 13.1)
Figure 1 Drum C Communication
