Xerox DocuColor 1632 Service Manual

6/02
4-90
DC1632/2240
REP 9.23, REP 9.24
Prelaunch Training/Review
Repairs and Adjustments
REP 9.23 1st BTR Roll
Parts List on PL 5.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Release and move Xerographic Release Lever down.
3. Open Right Side Door.
4. Remove IBT Assembly (REP 9.15).
5. Remove Transfer Belt (REP 9.22).
6. Remove 1st BTR Roll (Figure 1).

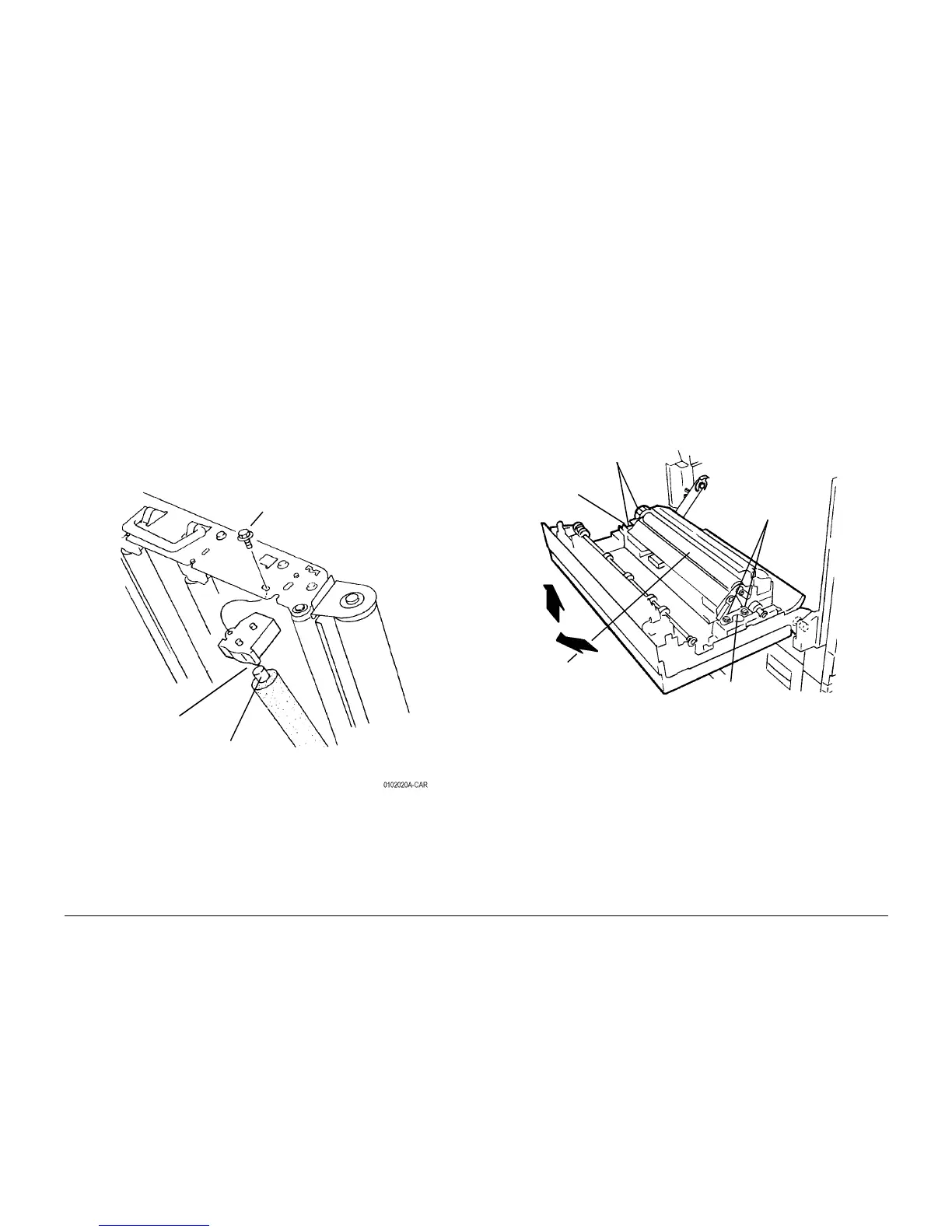

Figure 1 Removing 1st BTR Roll
REP 9.24 2nd BTR Roll
Parts List on PL 2.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove 2nd BTR (Figure 1).
a. Open Left Cover Assembly.
b. Remove Screws (4).
c. Remove 2nd BTR with Support Brackets
Figure 1 Removing 2nd BTR
1
Remove
Screw
2
Remove
Support and
1st BTR Roll
NOTE: Front
axle is long-
est
Front
Axle
Screws
(2)
Screws (2)
Transfer Roll
Assembly
Support
Bracket
Support
Bracket
