DC1632/2240
PL 17.1
Prelaunch Training/Review
Parts List

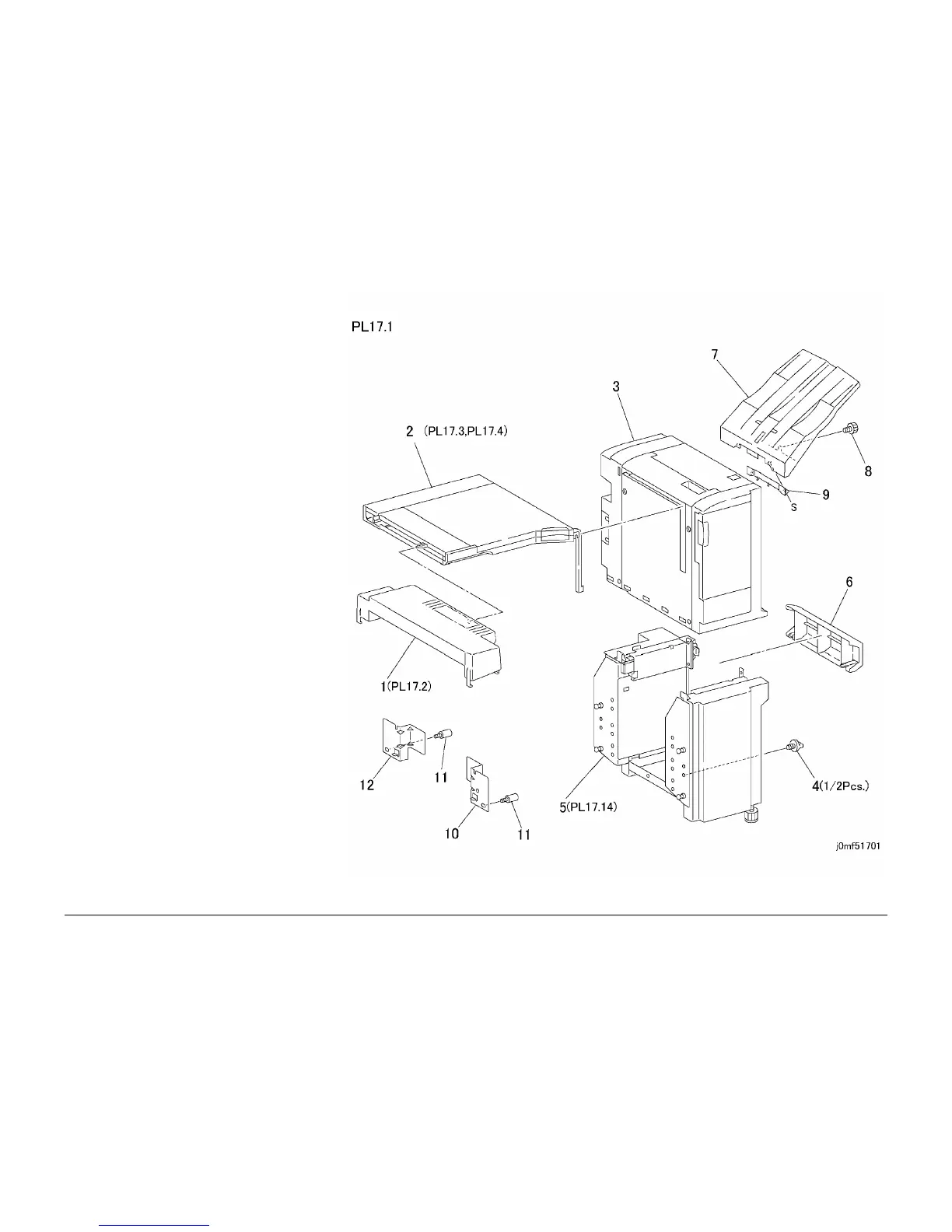

PL 17.1 Finisher
Item Part Description
1 802K36650 Gate Assembly
2 801K02480 H-Transport Assembly (REP 12.1)
3 – Stapler Finisher (Not Spared)
4 003K12090 Thumbscrew
5 – Rack Assembly (Not Spared) (REP
12.19)
6 – Right Cover (Not Spared)
7 – Stacker Tray (Not Spared) (REP
12.20)
8 026E93560 Screw
9 – Bracket (Not Spared)
10 – Front Bracket (Not Spared)
11 – Stud Screw (Not Spared)
12 – Rear Bracket (Not Spared)
