DC1632/2240
PL 17.10
Parts List
Prelaunch Training/Review

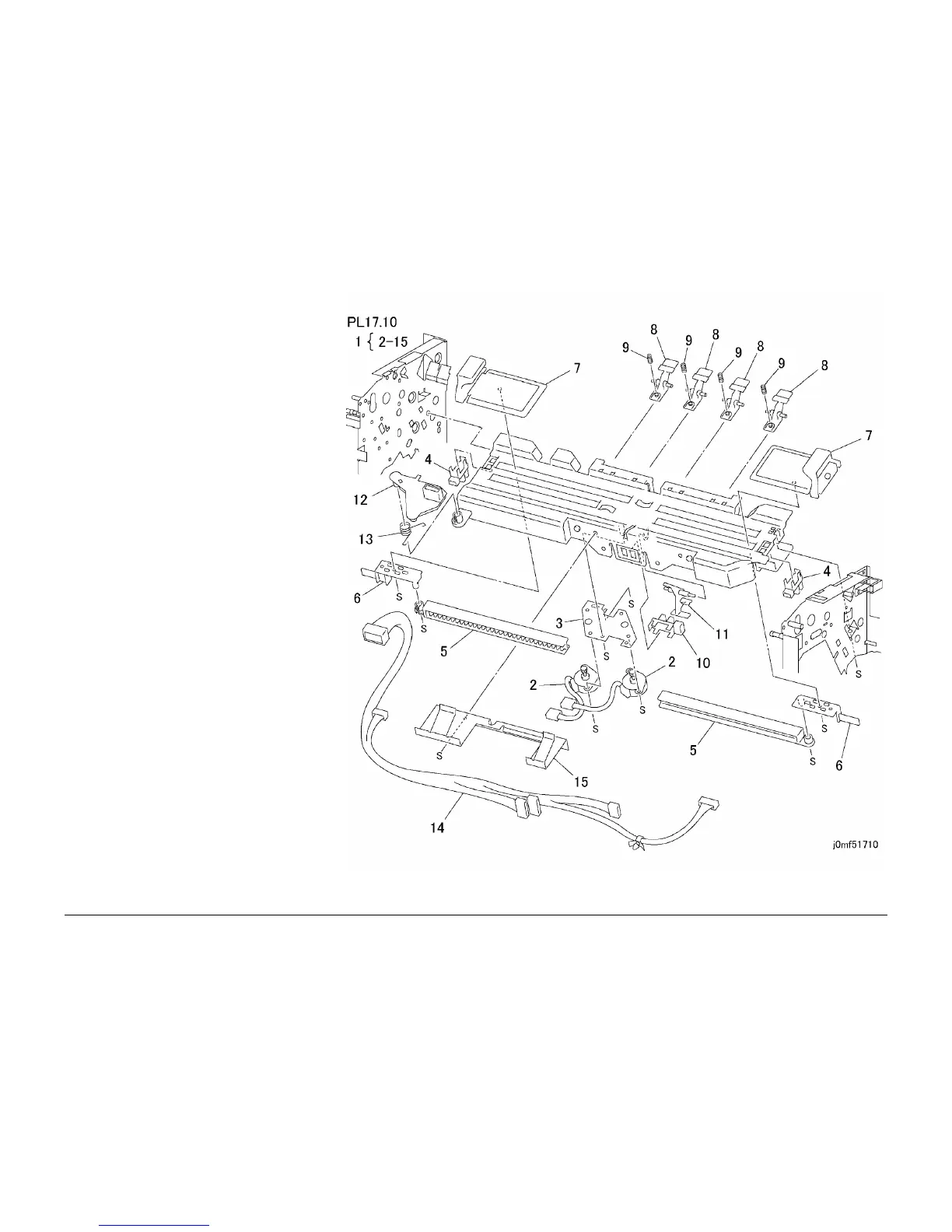

PL 17.10 Compiler Tray Assembly
Item Part Description
1 050K43880 Compiler Tray Assembly (REP
12.12)
2 127K32850 Front/Rear Tamper Motor
3 – Plate (P/O PL 17.10 Item 1)
4 130E82530 Front/Rear Tamper Home Sensor
5 – Rack (P/O PL 17.10 Item 1)
6 – Actuator (P/O PL 17.10 Item 1)
7 – Tamper (P/O PL 17.10 Item 1)
8 – Finger (P/O PL 17.10 Item 1)
9 – Spring (P/O PL 17.10 Item 1)
10 130E82540 Compiler Paper Sensor
11 – Actuator (P/O PL 17.10 Item 1)
12 038E24410 Paper Guide
13 809E33600 Spring
14 – Wire Harness (P/O PL 17.10 Item
1)
15 – End Guide (P/O PL 17.10 Item 1)
