6/02
4-112
DC1632/2240
REP 12.9
Prelaunch Training/Review
Repairs and Adjustments
REP 12.9 Belt
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5)
2. Rotate the Actuator (Figure 1).

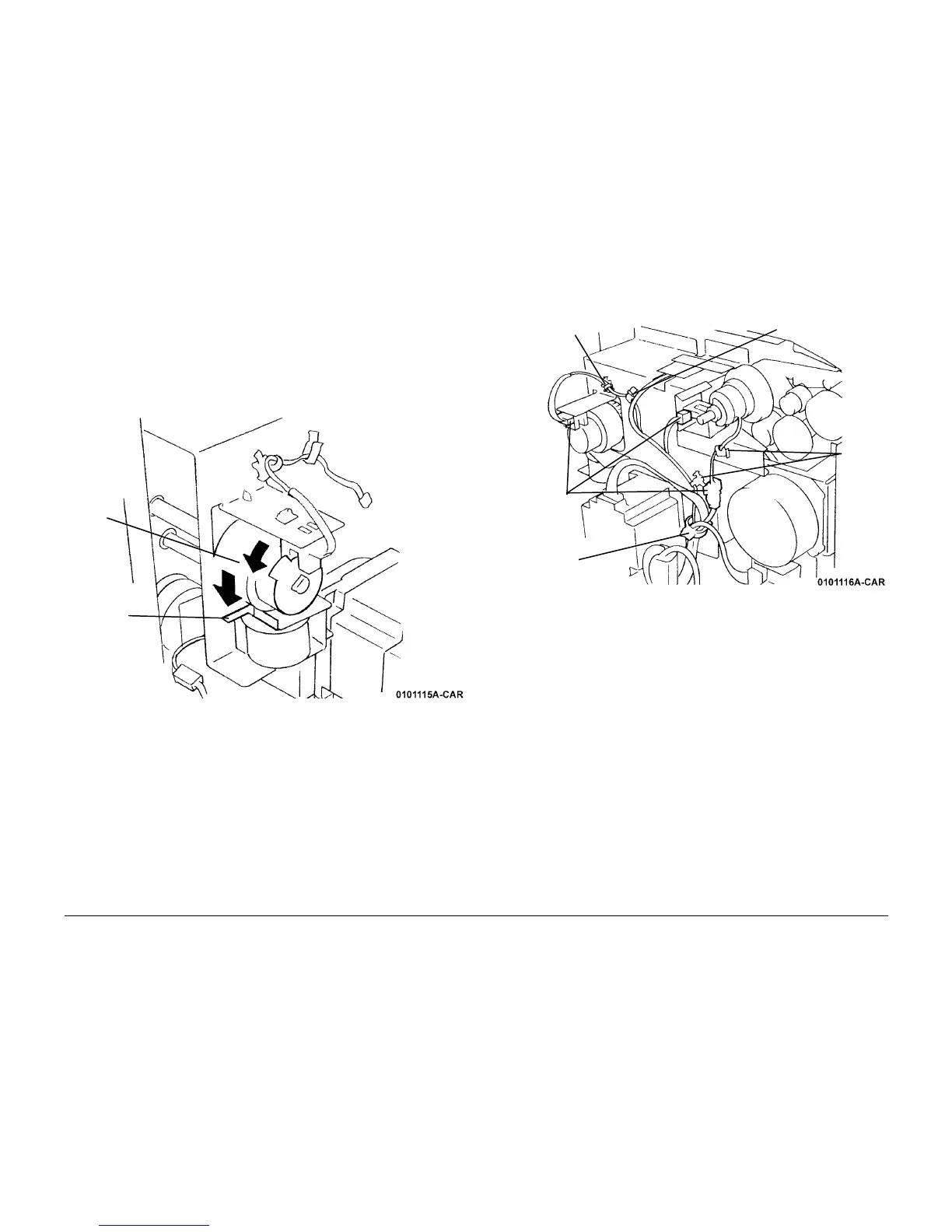

Figure 1 Rotate the Actuator
3. Release Harnesses (Figure 2).
Figure 2 Releasing Harnesses
1
Release Sole-
noid Pawl
2
Rotate
Cam 1/4
revolution
1
Disconnect
P/JÃs (3)
2
Remove Clamp
from Frame
4
Remove
Clamp
from
Frame
5
Remove wires
from Clip
To Next Page
