Xerox DocuColor 1632 Service Manual

6/02
5-44
DC1632/2240
PL 10.3
Prelaunch Training/Review
Parts List

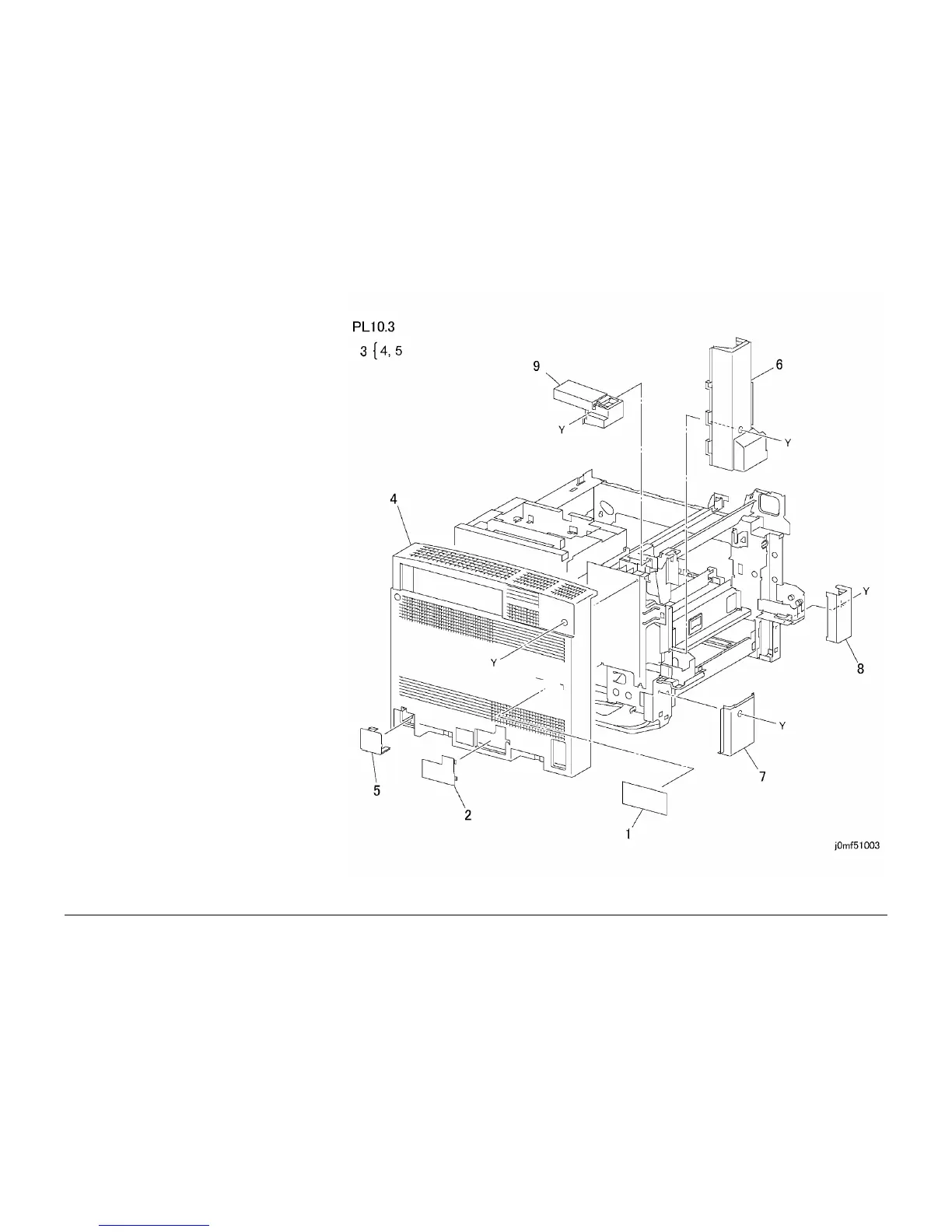

PL 10.3 Rear Cover
Item Part Description
1 – Data Plate (Not Spared)
2 802E12480 Blind Cover
3 802K28110 Rear Cover Assembly
4 – Rear Cover (P/O PL 10.3 Item 3)
(REP 14.2)
5 802E12490 Blind Cover
6 802E12500 Rear Left Middle Cover (REP 14.4)
7 – Rear Left Lower Cover (Not
Spared)
8 – Front Left Cover (Not Spared)
9 802E27860 Rear Left Upper Cover (REP 14.5)
