6/02
4-96
DC1632/2240
REP 10.3
Prelaunch Training/Review
Repairs and Adjustments
REP 10.3 Main/Sub Heater Rod
Parts List on PL 7.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Fuser Assembly (REP 10.1).
2. Remove the following parts:
ï Front Cover (REP 14.7)
ï Handle (PL 7.2)
ï Rear Cover (PL 7.2)
ï Handle (PL 7.2)
3. Disconnect P/JÃs (2) at rear of Fuser (Figure 1).

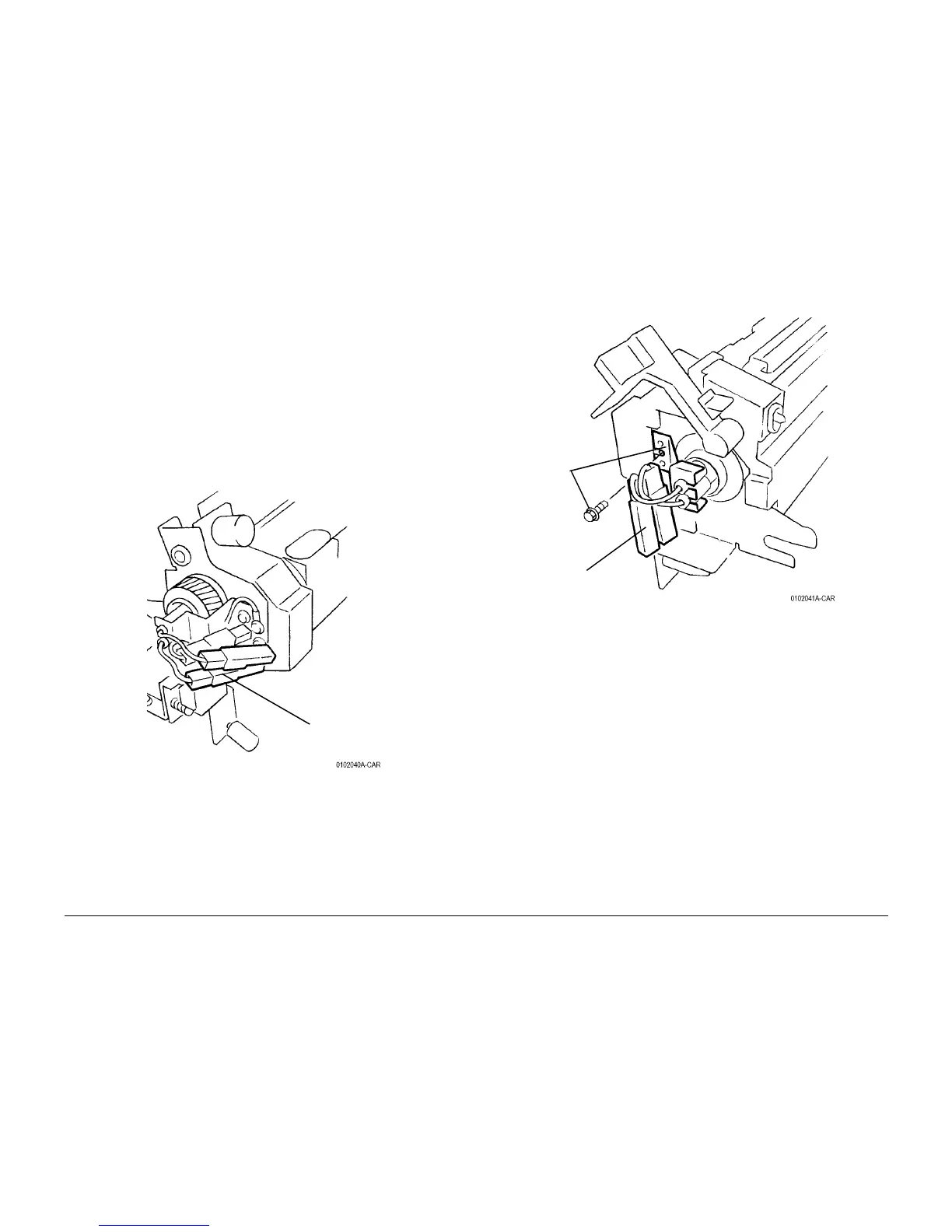

Figure 1 Disconnecting Connectors
4. Prepare Fuser at front (Figure 2).
Figure 2 Preparing Fuser at Front
Disconnect
P/JÃs (2)
2
Remove Screw
and Heat Rod
Support
1
Disconnect
P/JÃs (2)
To Next Page
